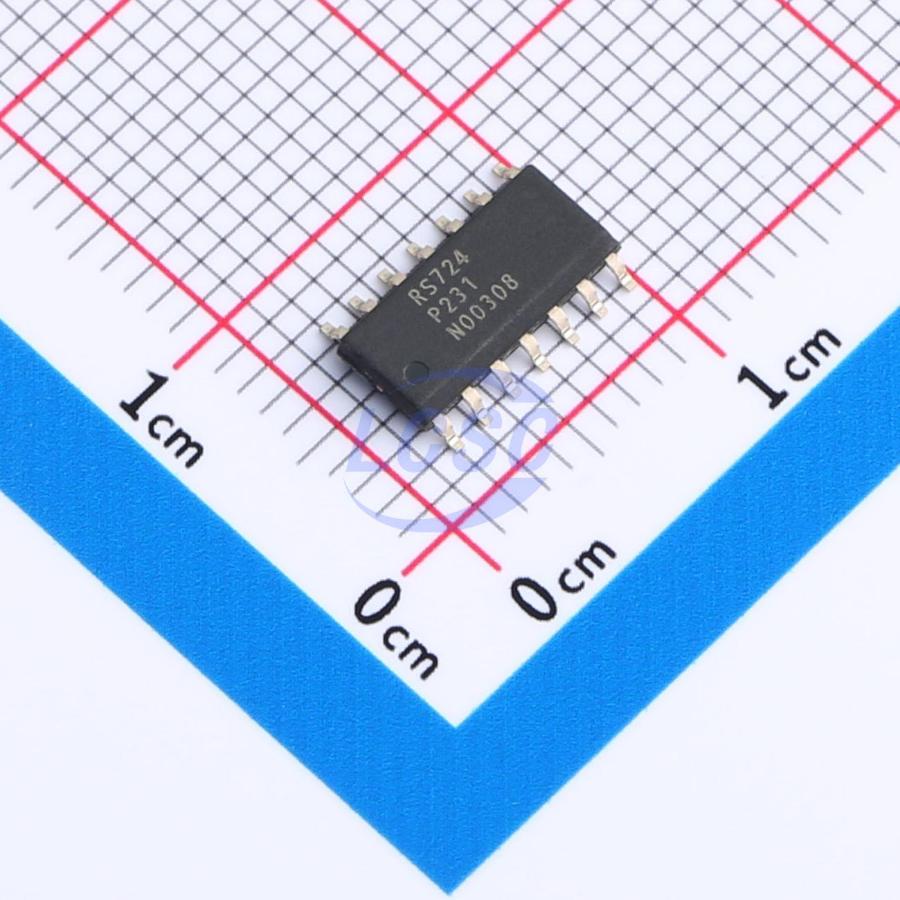

RUNICDatasheet (PDF)
RS724XP-Q1
150mA 4 500uV 8V/us 10pA 90dB 1.15mA 13MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS CompliantActive
13MHz, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS724XP-Q1
- Store part #
- C7570378
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,795 in stock
#C7570378
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.62 | ₹77.62 |
| 10+ | ₹54.22 | ₹542.20 |
1 × ₹77.62
₹77.62
excl. GST
₹91.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS724XP-Q1
₹77.62 for 1 + GST
Specifications
- Output Current
- 150mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 1.15mA
- Gain Bandwidth Product
- 13MHz
- Features
- Built-in compensation
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.526 g
Overview
The RS724-Q1 families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (13MHz) and slew rate of 8V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS724-Q1 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.7V to 5.5V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- HIGH GAIN BANDWIDTH: 13MHz
- RAIL-TO-RAIL INPUT AND OUTPUT ±0.5mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.6v with V5 = 5.5V
- SUPPLY RANGE: ±2.78 to +5.5V
- SPECIFIED UP TO +125°C Micro SIZE PACKAGES: SOIC-14(SOP14), TSSOP-14, QFN3x3-16L
