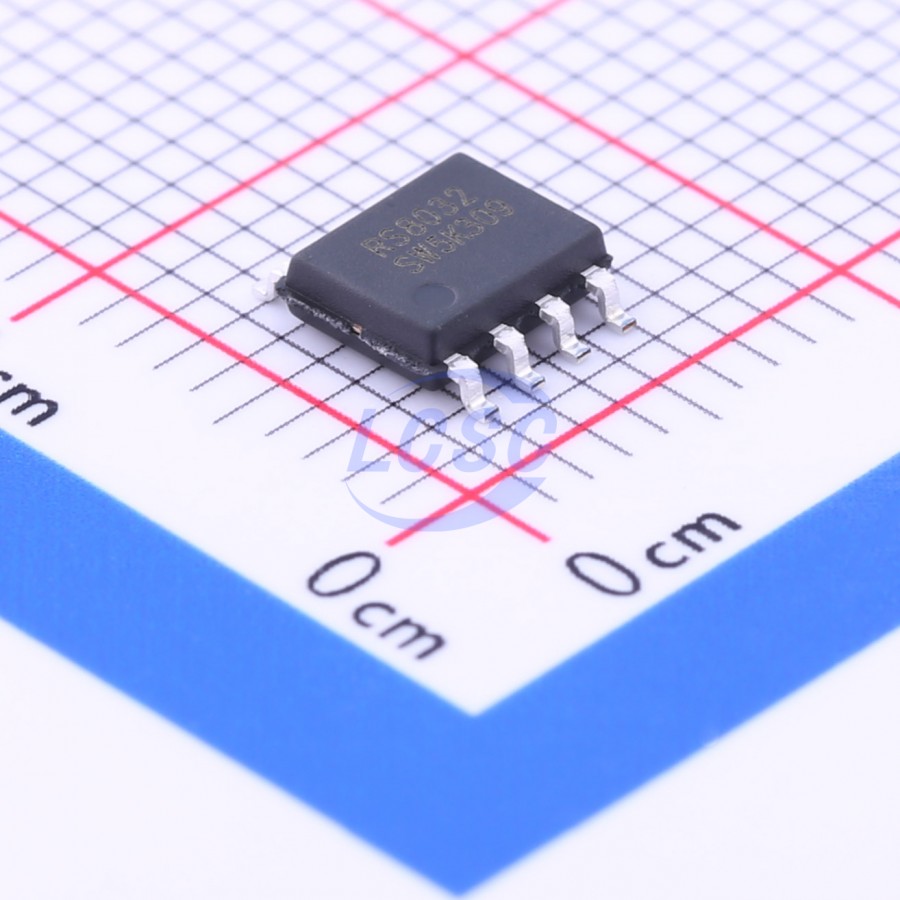

RS8032XK

11mA 1 500uV 7.5V/ms 90dB 1pA 15kHz 750nA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS3 CompliantActive

CMOS Operational Amplifier with Rail-to-Rail I/O

Manufacturer: RUNIC
Manufacturer part #: RS8032XK
Store part #: C237005
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,115 in stock

#C237005

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹56.68	₹283.40
50+	₹42.26	₹2,113.00
150+	₹36.16	₹5,424.00
500+	₹28.44	₹14,220.00

Quantity (min 5, multiples of 5)

5 × ₹56.68

₹283.40

excl. GST

₹334.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8032XK

₹283.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 11mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 7.5V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.31uV/℃
Gain Bandwidth Product: 15kHz
Quiescent Current: 750nA
Features: Built-in compensation
Input Voltage Noise Density: 160nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.16 g

Overview

GAIN BANDWIDTH: 15kHz RAIL-TO-RAIL INPUT AND OUTPUT 0.5mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +1.4V to +5.5V SPECIFIED UP TO ±125°C MicroSIZE PACKAGES: SOT23 - 5 The RS8031, RS8032, RS8034 families of products offer low voltage operation and rail - to - rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (15kHz) and slew rate of 7.5V/ms. The op - amps are unity gain stable and feature an ultra - low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS8031, RS8032, RS8034 families of operational amplifiers are specified at the full temperature range of - 40°C to +125°C under single or dual power supplies of 1.4V to 5.5V.
