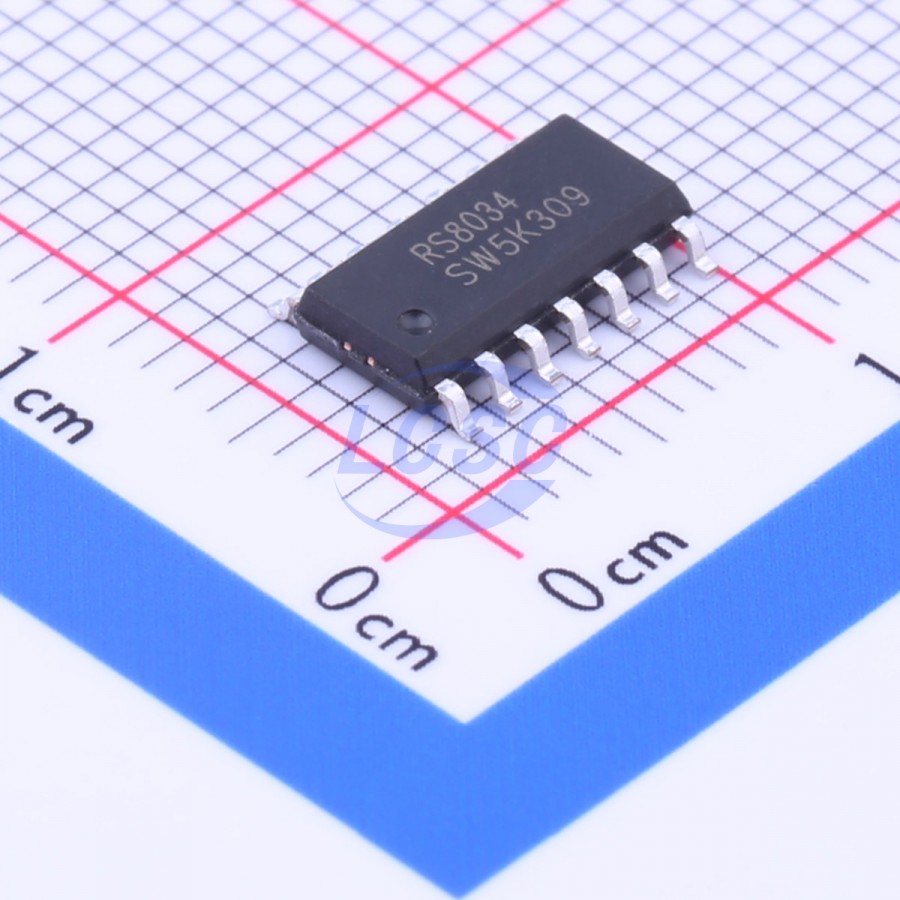

RS8034XP

11mA 1 500uV 7.5V/ms 1pA 90dB 15kHz 750nA Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps

SOIC-14RoHSActive

CMOS Operational Amplifier with Rail-to-Rail I/O

Manufacturer: RUNIC
Manufacturer part #: RS8034XP
Store part #: C237004
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,817 in stock

#C237004

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹28.93	₹28.93

Quantity (min 1)

1 × ₹28.93

₹28.93

excl. GST

₹34.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8034XP

₹28.93 for 1 + GST

Specifications

Output Current: 11mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 7.5V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2.3uV/℃
Gain Bandwidth Product: 15kHz
Quiescent Current: 750nA
Features: Built-in compensation
Input Voltage Noise Density: 160nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

GAIN BANDWIDTH: 15kHz RAIL-TO-RAIL INPUT AND OUTPUT 0.5mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +1.4V to +5.5V SPECIFIED UP TO ±125°C MicroSIZE PACKAGES: SOT23 - 5 The RS8031, RS8032, RS8034 families of products offer low voltage operation and rail - to - rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (15kHz) and slew rate of 7.5V/ms. The op - amps are unity gain stable and feature an ultra - low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS8031, RS8032, RS8034 families of operational amplifiers are specified at the full temperature range of - 40°C to +125°C under single or dual power supplies of 1.4V to 5.5V.
