RUNICDatasheet (PDF)

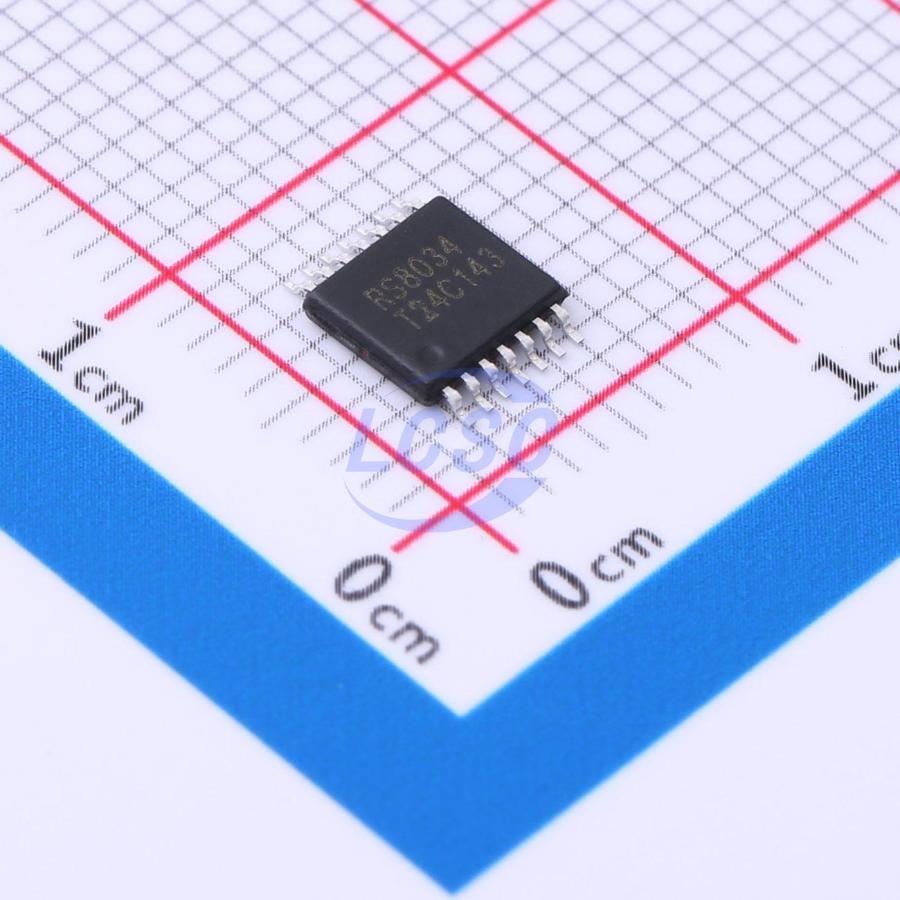

RS8034XQ
11mA 1 500uV 7.5V/ms 90dB 1pA 750nA 15kHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
15kHz, 750nA, Rail-to-Rail I/O CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8034XQ
- Store part #
- C5346831
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,174 in stock
#C5346831
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.61 | ₹54.61 |
1 × ₹54.61
₹54.61
excl. GST
₹64.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8034XQ
₹54.61 for 1 + GST
Specifications
- Output Current
- 11mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 7.5V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.31uV/℃
- Quiescent Current
- 750nA
- Gain Bandwidth Product
- 15kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 160nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
GAIN BANDWIDTH: 15kHz RAIL-TO-RAIL INPUT AND OUTPUT 0.5mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +1.4V to +5.5V SPECIFIED UP TO ±125°C MicroSIZE PACKAGES: SOT23 - 5
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- WEARABLE PRODUCTS
- TEMPERATURE MEASUREMENT
- BATTERY POWERED SYSTEM
Key features
- GAIN BANDWIDTH: 15kHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- 0.5mv Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V
- SUPPLY RANGE: +1.4V to +5.5V
- SPECIFIED UP TO ±125°C
- MicroSIZE PACKAGES: SOT23 - 5
