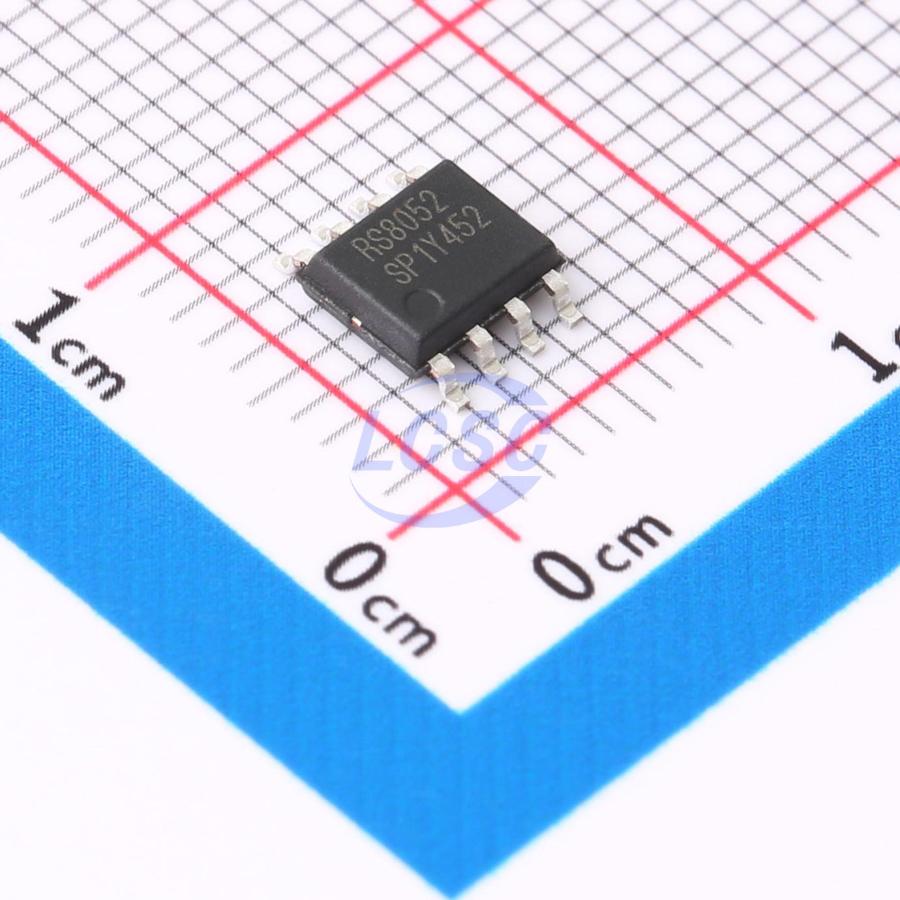

RS8052XK

30mA 2 1mV 30V/ms 1pA 70dB 670nA 100kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS3 CompliantActive

100kHz, 670nA, Non-Unity Gain, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8052XK
Store part #: C255437
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,185 in stock

#C255437

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹60.88	₹304.40
50+	₹45.41	₹2,270.50
150+	₹38.90	₹5,835.00
500+	₹30.55	₹15,275.00

Quantity (min 5, multiples of 5)

5 × ₹60.88

₹304.40

excl. GST

₹359.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8052XK

₹304.40 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 1mV
Slew Rate: 30V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.3uV/℃
Quiescent Current: 670nA
Gain Bandwidth Product: 100kHz
Features: Decompensated stable
Input Voltage Noise Density: 160nV/√Hz@1kHz
Dual Supply: -2.75V~-700mV;700mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.119 g

Overview

The RS8051, RS8052, RS8054, families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (100kHz) and slew rate of 30V/ms. The op-amps are stable for gains ≥ 10 and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS8051, RS8052, RS8054 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 1.4V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
WEARABLE PRODUCTS
TEMPERATURE MEASUREMENT
BATTERY POWERED SYSTEM

Key features

GAIN BANDWIDTH: 100kHz
RAIL-TO-RAIL INPUT AND OUTPUT ±1mV Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +1.4V to +5.5V
STABLE FOR GAINS ≥ 10
SPECIFIED UP TO ±125°C Micro SIZE PACKAGES: SOT23-5
