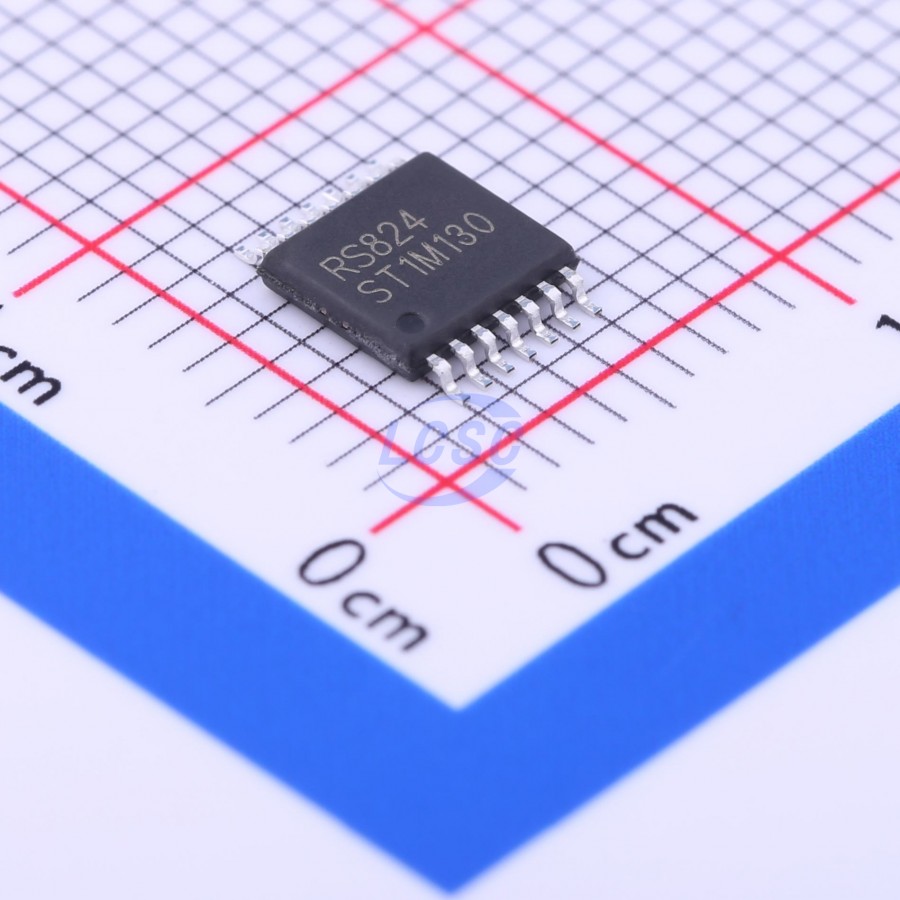

RS824XQ

110mA 4 600uV 10V/us 10pA 88dB 2.5mA 14MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

14MHz, Rail-to-Rail I/O, CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS824XQ
Store part #: C255445
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,138 in stock

#C255445

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹148.24	₹148.24
10+	₹113.87	₹1,138.70
30+	₹96.68	₹2,900.40
100+	₹79.50	₹7,950.00

Quantity (min 1)

1 × ₹148.24

₹148.24

excl. GST

₹174.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS824XQ

₹148.24 for 1 + GST

Specifications

Output Current: 110mA
Number of Channels: 4
Vos - Input Offset Voltage: 600uV
Slew Rate: 10V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 88dB
Input Offset Voltage Drift(Vos TC): 1.6uV/℃
Quiescent Current: 2.5mA
Gain Bandwidth Product: 14MHz
Input Voltage Noise Density: 8.5nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

The RS82X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (14MHz) and slew rate of 10V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS821S, RS822S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA. The RS82X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
