RUNICDatasheet (PDF)

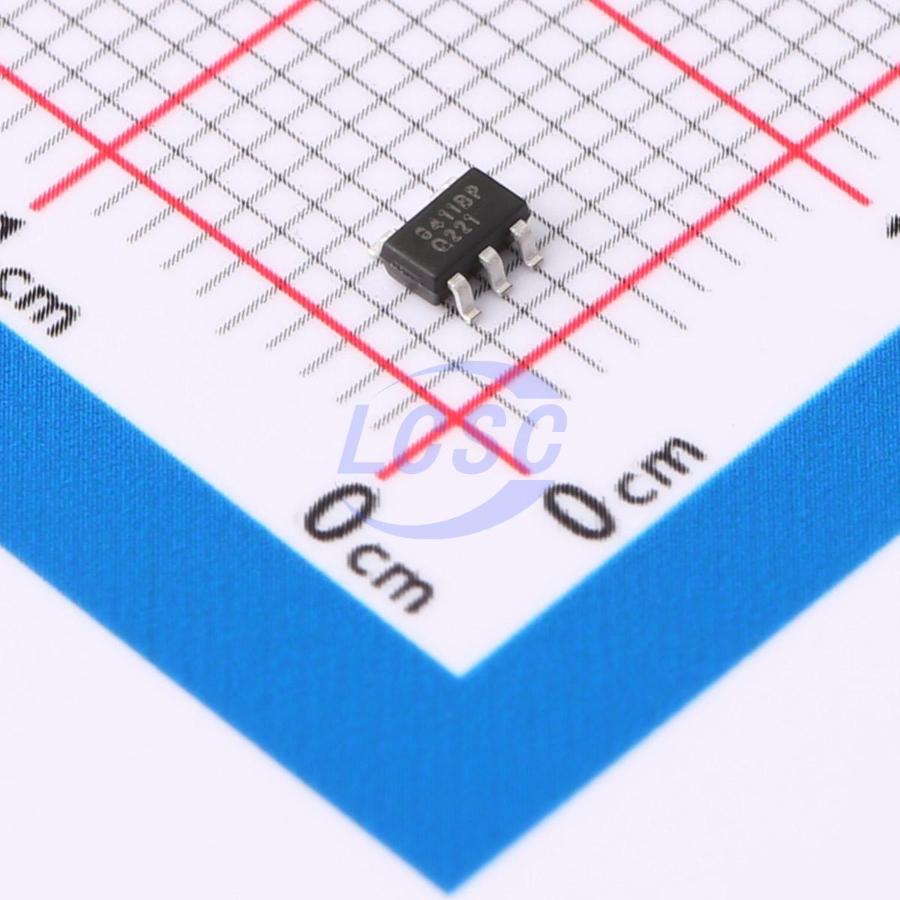

RS8411BPXF
80mA 1 500uV 670V/ms 600pA 110dB 150uA 1.2MHz Rail-to-rail output SOT23-5 Instrumentation, Op Amps, Buffer Amps
SOT23-5RoHSActive
36V, 1.2MHz Rail-to-Rail Output CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8411BPXF
- Store part #
- C5372622
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,985 in stock
#C5372622
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.50 | ₹112.50 |
| 50+ | ₹19.24 | ₹962.00 |
| 150+ | ₹17.11 | ₹2,566.50 |
| 500+ | ₹16.03 | ₹8,015.00 |
| 3,000+ | ₹14.96 | ₹44,880.00 |
5 × ₹22.50
₹112.50
excl. GST
₹132.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8411BPXF
₹112.50 for 5 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 670V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 600pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 1.13uV/℃
- Quiescent Current
- 150uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 45nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The RS841X families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.2MHz) and slew rate of 0.67V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are stable at capacitance up to 300pF. The input can operate normally within 100mV below of the negative power rail to 2V below of the positive power rail. The RS841X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 3V to 36V or dual power supplies of ±1.5V to ±18V.
Applications
- SENSORSPHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENTDRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 1.2MHz
- INPUT OFFSET VOLTAGE: ±0.5mV (Typical)
- QUIESCENT CURRENT: 150uA/Amp
- Rail to Rail Output Common-Mode Input Voltage Range Include Ground
- Supply Range: +3V to ±36V
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS8411XF#C2762300RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 13,845 | ₹22.40 · 13,845 in stock | View |
 | RS8411BXF#C2762301RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 4,325 | ₹24.73 · 4,325 in stock | View |
| RS8441XF#C54300708RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | On request | Price on request | Quote | |
 | RS8461PXF#C19269199RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,335 | ₹36.26 · 1,335 in stock | View |
 | RS621PXF#C2762294RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 690 | ₹42.30 · 690 in stock | View |
