RUNICDatasheet (PDF)

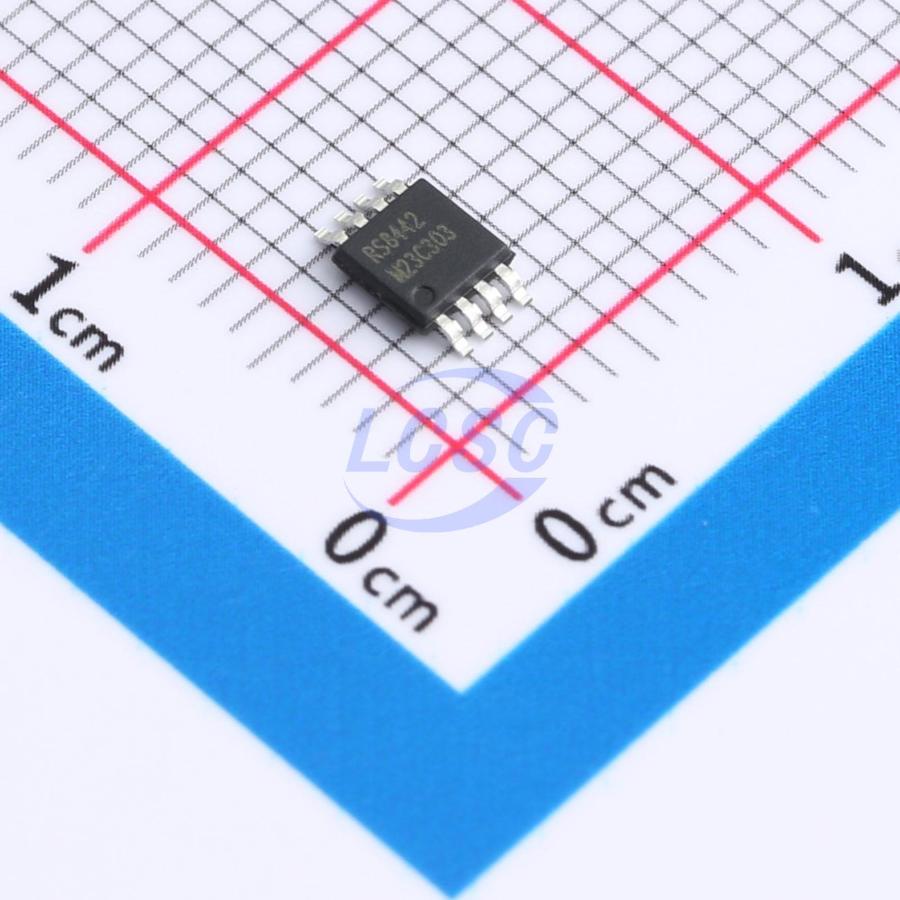

RS8442XM
43mA 2 800uV 15V/us 120dB 25pA 3.8MHz 440uA Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
32V 3.8MHz rail-to-rail output CMOS operational amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8442XM
- Store part #
- C42459666
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C42459666
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.60 | ₹148.00 |
| 50+ | ₹23.02 | ₹1,151.00 |
| 150+ | ₹20.22 | ₹3,033.00 |
| 500+ | ₹16.71 | ₹8,355.00 |
| 2,500+ | ₹15.40 | ₹38,500.00 |
| 4,000+ | ₹14.46 | ₹57,840.00 |
5 × ₹29.60
₹148.00
excl. GST
₹174.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8442XM
₹148.00 for 5 + GST
Specifications
- Output Current
- 43mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 15V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 25pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 3.8MHz
- Quiescent Current
- 440uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.085 g
Overview
The RS844X families of products offer high voltage (32V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (3.8MHz) and slew rate of 15V/us. The op-amps are unity gain stable and feature an ultralow input bias current. The input can operate normally within the negative power rail to 1.5V below of the positive power rail. Input signals beyond the supply rails do not cause phase reversal. The RS844X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 3V to 32V or dual power supplies of ±1.5V to ±16V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 3.8MHz
- INPUT OFFSET VOLTAGE: ±0.8mV (Typical)
- QUIESCENT CURRENT: 0.44mA/Amp
- Rail to Rail Output
- Supply Range: 3V to 32V
- SPECIFIED UP TO +125°C Micro SIZE PACKAGES: SOP8, MSOP8, TSSOP8, SOP14, TSSOP14
