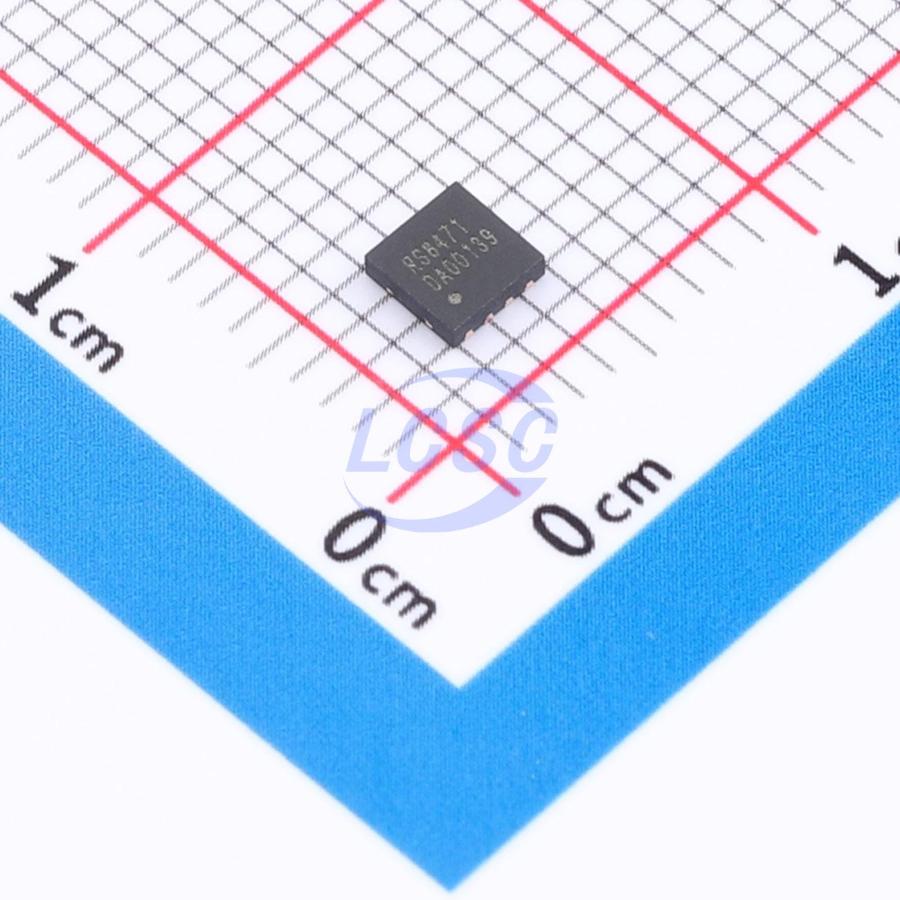

RS8471YTDC8

400mA 1mV 65V/us 100pA 68dB 25MHz 5.5mA Rail-to-Rail Input, Rail-to-Rail Output DFN-8L(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8L(3x3)RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS8471YTDC8
Store part #: C22462277
Package / case: DFN-8L(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,245 in stock

#C22462277

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
5+	₹26.79	₹133.95
50+	₹20.77	₹1,038.50
150+	₹18.19	₹2,728.50
500+	₹14.96	₹7,480.00
2,500+	₹14.25	₹35,625.00
5,000+	₹13.39	₹66,950.00

Quantity (min 5, multiples of 5)

5 × ₹26.79

₹133.95

excl. GST

₹158.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

RS8471YTDC8

₹133.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 400mA
Vos - Input Offset Voltage: 1mV
Slew Rate: 65V/us
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 68dB
Input Offset Voltage Drift(Vos TC): 6uV/℃
Gain Bandwidth Product: 25MHz
Quiescent Current: 5.5mA
Input Voltage Noise Density: 45nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -12V~-2.25V;2.25V~12V
Single Supply: 4.5V~24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.129 g

Overview

RS8471 is a high slew rate, low-power op-amp optimized for high-voltage systems. The device operates from single or dual supplies, supporting rail-to-rail input and output operation. The RS8471 features a maximum offset voltage of ±4.5mV, 1A peak output current, and a high slew rate of 65V/μs. This combination of characteristics makes it well-suited for TFT-LCD applications. The RS8471 is available in a green DFN3X3-8 package with an operating temperature range of -40°C ~ +85°C.
