RUNICDatasheet (PDF)

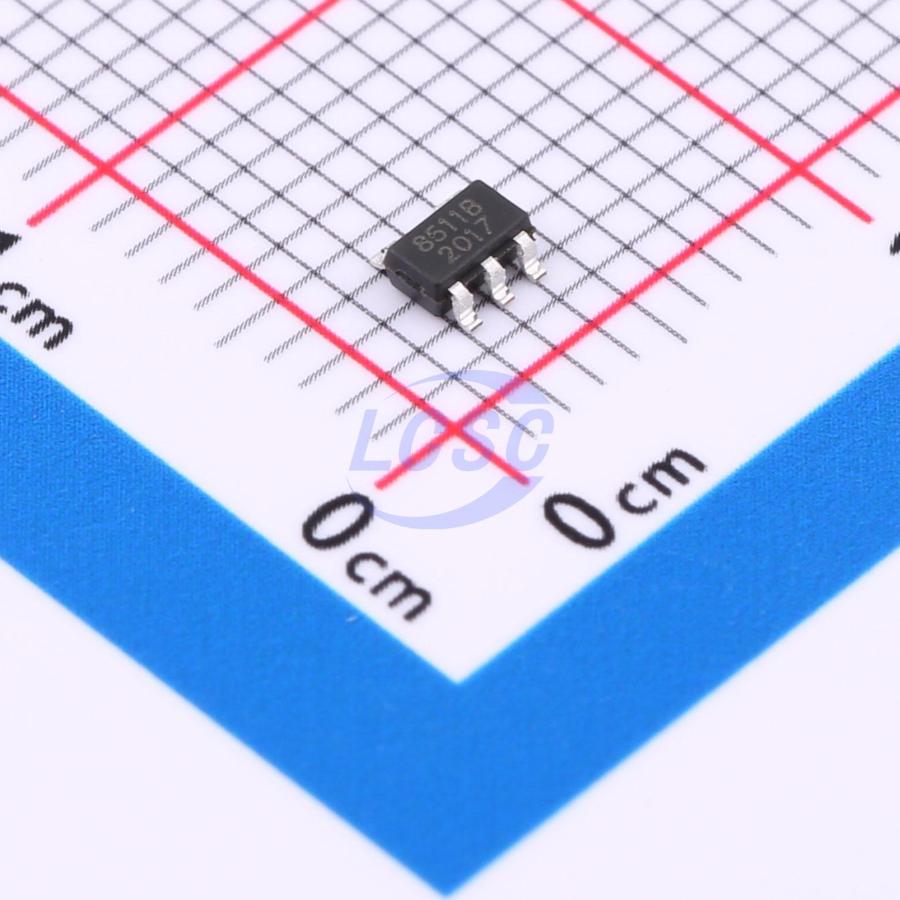

RS8511BXF
25mA 1 7uV 0.17V/us 130dB 50pA 60uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT23-5 Instrumentation, Op Amps, Buffer Amps
SOT23-5RoHSActive
Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8511BXF
- Store part #
- C5372635
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,937 in stock
#C5372635
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.87 | ₹80.87 |
| 10+ | ₹62.23 | ₹622.30 |
| 30+ | ₹52.70 | ₹1,581.00 |
| 100+ | ₹43.37 | ₹4,337.00 |
1 × ₹80.87
₹80.87
excl. GST
₹95.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8511BXF
₹80.87 for 1 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 7uV
- Slew Rate
- 0.17V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.15V;1.15V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The RS8511, RS8512, RS8513, RS8514 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (40uV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 350KHz and slew rate of 0.17V/us. Single or dual supplies as low as +2.3V (±1.15V) and up to +5.5V (±2.75V) may be used. The RS8511/ RS8512/ RS8514/ RS8513 (dual version with shutdown) are specified for the extended industrial and automotive temperature range (-40°C to 125°C).
Applications
- Temperature Sensors
- Medical/Industrial Instrumentation
- Pressure Sensors
- Battery-Powered Instrumentation
- Active Filtering
- Weight Scale Sensor
- Strain Gage Amplifiers
- Power Converter/Inverter
Key features
- Low Offset Voltage: ±40uV (Max)
- Input Offset Drift: ±0.05uV/°C
- High Gain Bandwidth Product: 350KHz
- Rail-to-Rail Input and Output
- High Gain, CMRR, PSRR: 130dB
- High Slew Rate: 0.17V/us
- Low Noise: 1.6uVp-p (0.01~10Hz)
- Low Power Consumption: 60uA /op amp
- Overload Recovery Time: 6us
- Low Supply Voltage: +2.3V to +5.5V
- No External Capacitors Required
- Extended Temperature: -40°C to 125°C
