RUNICDatasheet (PDF)

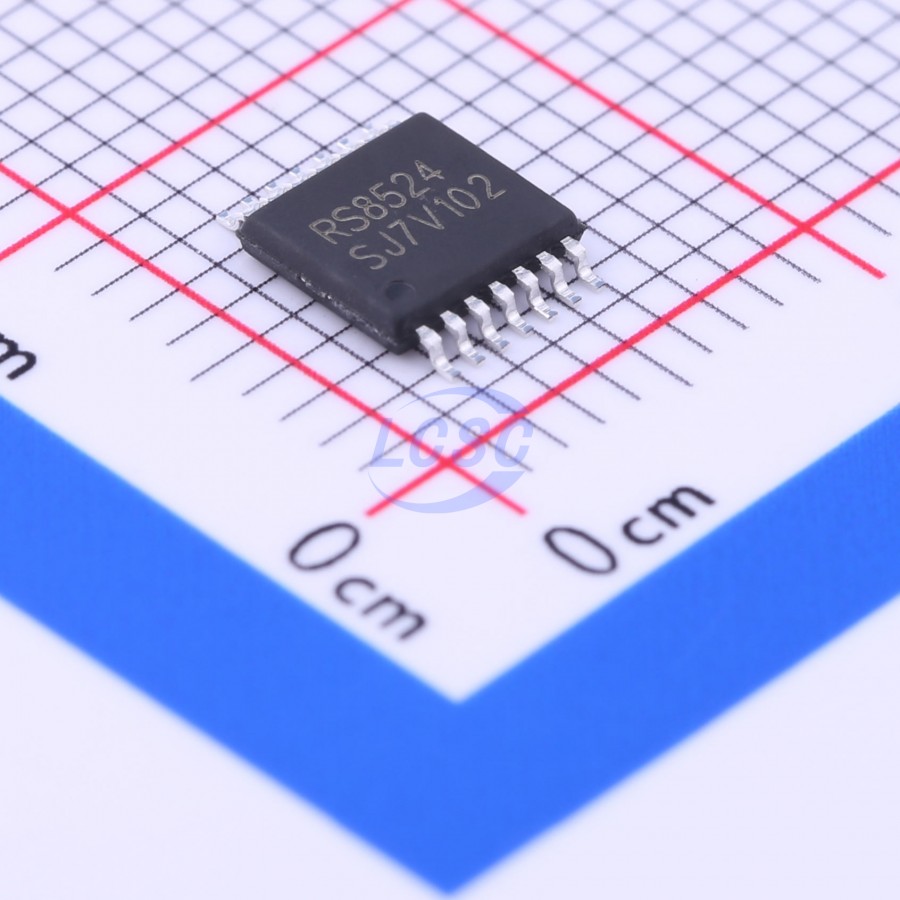

RS8524XQ
25mA Four channels 5uV 0.17V/us 130dB 1pA 60uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8524XQ
- Store part #
- C255433
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,258 in stock
#C255433
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.02 | ₹142.02 |
| 10+ | ₹127.40 | ₹1,274.00 |
| 30+ | ₹104.42 | ₹3,132.60 |
| 100+ | ₹83.55 | ₹8,355.00 |
| 500+ | ₹79.37 | ₹39,685.00 |
| 1,000+ | ₹75.19 | ₹75,190.00 |
1 × ₹142.02
₹142.02
excl. GST
₹167.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8524XQ
₹142.02 for 1 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 5uV
- Slew Rate
- 0.17V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation
- Input Voltage Noise Density
- 140nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
CMOS operational amplifiers use auto - zero techniques to simultaneously provide very low offset voltage (5 μV max) and near - zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power. This miniature, high - precision operational amplifiers offset high input impedance and rail - to - rail input and rail - to - rail output swing. With high gain - bandwidth product of 350KHz and slew rate of 0.17V/μs. Single or dual supplies as low as +2.5V (±1.25V) and up to +5.5V (±2.75V) may be used.
Applications
- Temperature Sensors
- Medical/Industrial Instrumentation
- Pressure Sensors
- Battery - Powered Instrumentation
- Active Filtering
- Weight Scale Sensor
- Strain Gage Amplifiers
- Power Converter/Inverter
Key features
- Low Offset Voltage: 1μV
- Input Offset: 0.005 μV/°C
- High Gain Bandwidth Product: 350KHz
- Rail - to - Rail Input and Output
- High Gain, CMRR, PSRR: 130dB
- High Slew Rate: 0.17V/μs
- Low Noise: 3.2μVₚ₋ₚ (0.01~10Hz)
- Low Power Consumption: 60 μA/op amp
- Overload Recovery Time: 6us
- Low Supply Voltage: +2.5 V to +5.5 V
- No External Capacitors Required
- Extended Temperature: -40 °C to +125 °C
