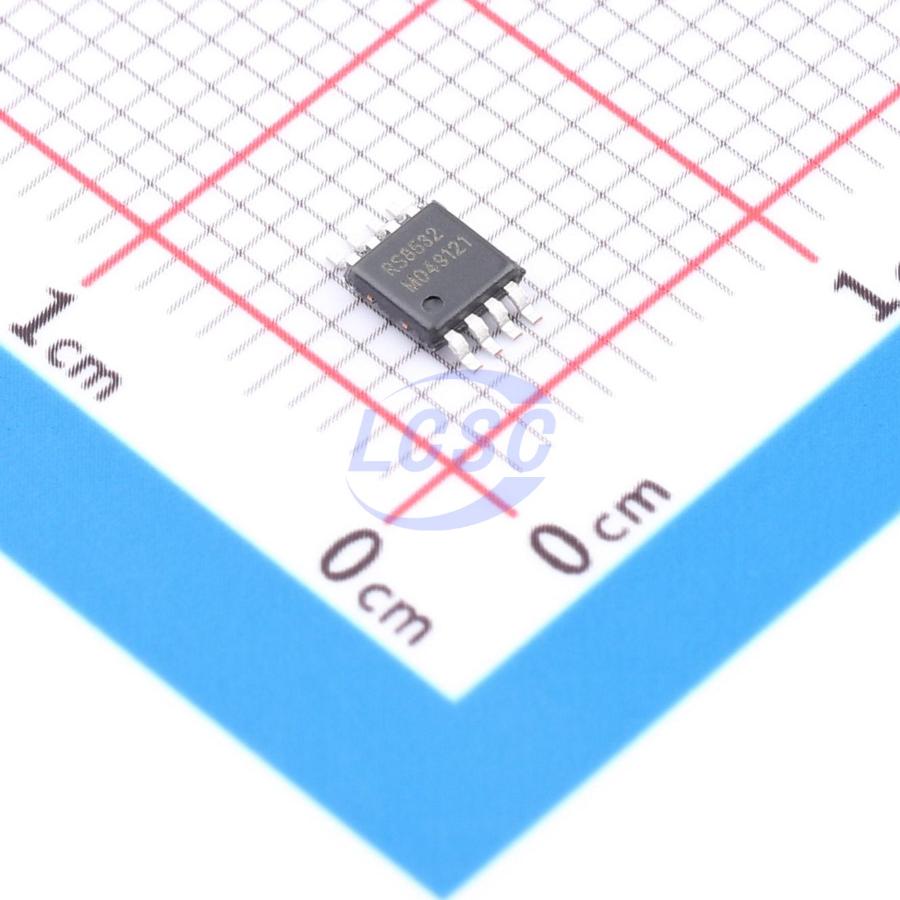

RS8532XM

40mA 2 1.2uV 0.7V/us 125dB 100pA 3.7MHz 1.5mA Rail-to-Rail Input, Rail-to-Rail Output MSOP8 Instrumentation, Op Amps, Buffer Amps

MSOP8RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS8532XM
Store part #: C50202009
Package / case: MSOP8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,848 in stock

#C50202009

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹46.50	₹46.50
10+	₹45.42	₹454.20
30+	₹44.77	₹1,343.10
100+	₹43.90	₹4,390.00

Quantity (min 1)

1 × ₹46.50

₹46.50

excl. GST

₹54.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8532XM

₹46.50 for 1 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 1.2uV
Slew Rate: 0.7V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 125dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 100nV/℃
Gain Bandwidth Product: 3.7MHz
Quiescent Current: 1.5mA
Features: Zero drift / auto-zero;Built-in compensation;ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 5.5nV/√Hz@1kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

RS8531/RS8532 are ultra-low noise, zero-drift op-amps with rail-to-rail input and output swing. With an offset voltage of ±1.2 μV, offset voltage drift of ±0.1 μV/°C, and typical noise of 0.15 μVₚ₋ₚ (0.1 Hz to 10 Hz), they are ideal for applications that cannot tolerate error sources. The RS8531/RS8532 feature a wide supply voltage range of 2.2 V to 5.5 V, high gain, and excellent CMRR and PSRR specifications, making them the ideal choice for applications requiring precision amplification of low-level signals, such as position and pressure sensors, strain gauges, and medical instrumentation. The RS8531/RS8532 operating temperature range extends to industrial grade (−40°C to +125°C). The RS8531 is available in SOT23-5 and MSOP8 packages. The RS8532 is available in SOP8 and MSOP8 packages.
