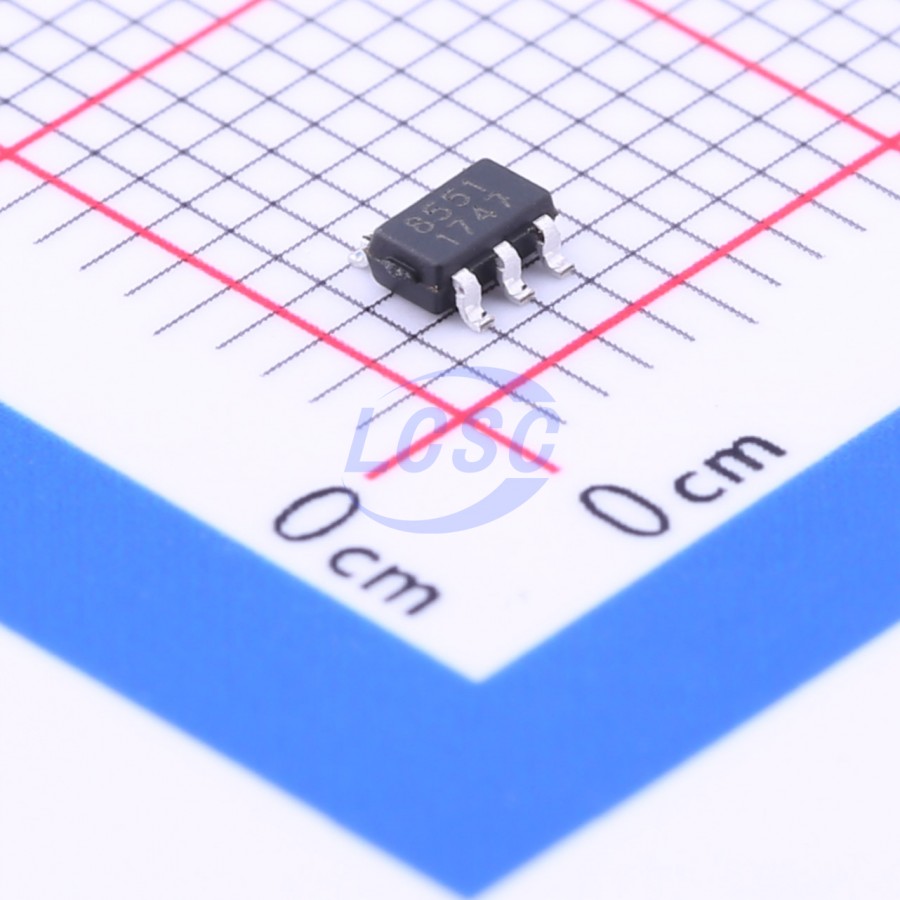

RS8551XF

50mA 1 1uV 2.7V/us 130dB 1pA 640uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers

Manufacturer: RUNIC
Manufacturer part #: RS8551XF
Store part #: C237000
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,810 in stock

#C237000

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹116.04	₹116.04
10+	₹89.38	₹893.80
30+	₹70.61	₹2,118.30
100+	₹55.25	₹5,525.00
500+	₹49.07	₹24,535.00
1,000+	₹46.08	₹46,080.00

Quantity (min 1)

1 × ₹116.04

₹116.04

excl. GST

₹136.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS8551XF

₹116.04 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 2.7V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 5nV/℃
Quiescent Current: 640uA
Gain Bandwidth Product: 4.5MHz
Features: Zero drift / auto-zero
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -2.75V~-1.35V;1.35V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

The RS8551,RS8552,RS8554,RS8553(dual version & shutdown)series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5μV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 4.5MHz and slew rate of 2.7V/μs. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used.

Applications

Temperature Sensors
Medical/Industrial Instrumentation
Pressure Sensors
Battery-Powered Instrumentation
Active Filtering
Weight Scale Sensor
Strain Gage Amplifiers
Power Converter/Inverter

Key features

Low Offset Voltage: 1uV
Input Offset Drift: 0.005μV/°C
High Gain Bandwidth Product: 4.5MHz
Rail-to-Rail Input and Output High Gain, CMRR, PSRR: 130dB
High Slew Rate: 2.7V/μs
Low Noise: 0.75uVp-p (0.01 ~ 10Hz)
Low Power Consumption: 640μA/op amp
Overload Recovery Time: 1us
Low Supply Voltage: +2.7V to +5.5V
No External Capacitors Required
Extended Temperature: -40°C to 125°C
