RUNICDatasheet (PDF)

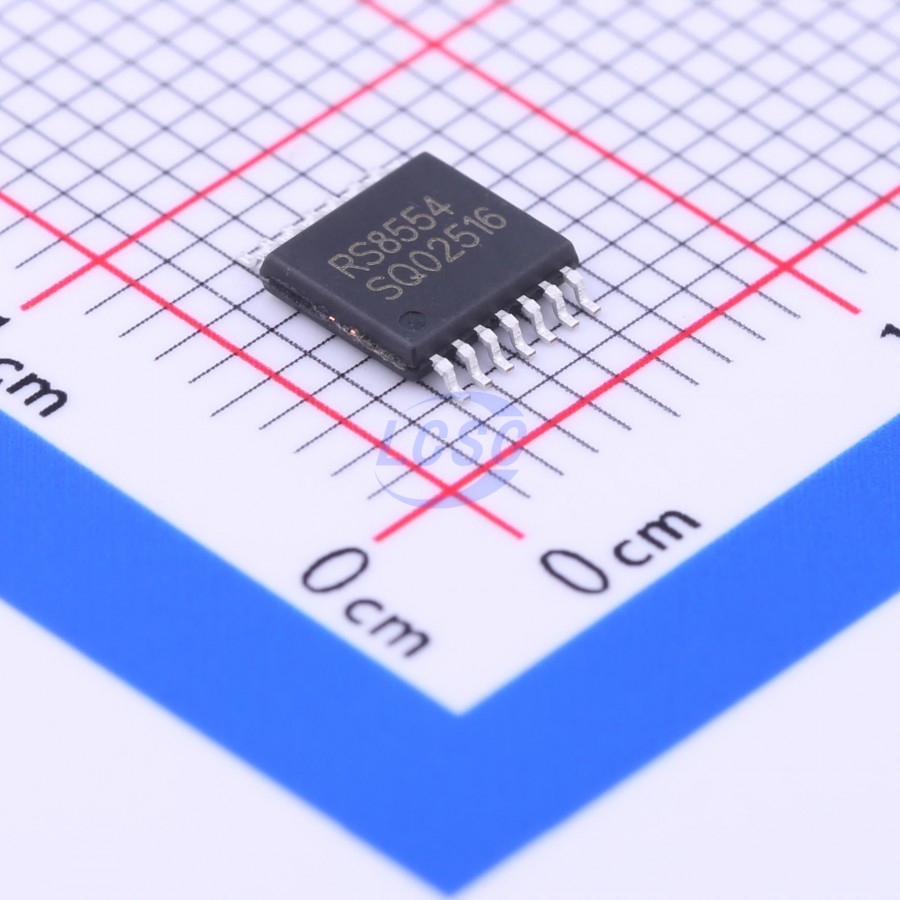

RS8554XQ
50mA Four channels 1uV 2.7V/us 110dB 50pA 640uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps
TSSOP-14RoHSActive
Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8554XQ
- Store part #
- C255429
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,327 in stock
#C255429
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.43 | ₹143.43 |
| 10+ | ₹105.83 | ₹1,058.30 |
| 30+ | ₹86.92 | ₹2,607.60 |
1 × ₹143.43
₹143.43
excl. GST
₹169.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8554XQ
₹143.43 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 2.7V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Quiescent Current
- 640uA
- Gain Bandwidth Product
- 4.5MHz
- Features
- Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The RS8551,RS8552,RS8554,RS8553(dual version & shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5μV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 4.5MHz and slew rate of 2.7V/μs. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used.
Applications
- Temperature Sensors
- Medical/Industrial Instrumentation
- Pressure Sensors
- Battery-Powered Instrumentation
- Active Filtering
- Weight Scale Sensor
- Strain Gage Amplifiers
- Power Converter/Inverter
Key features
- Low Offset Voltage: 1μV
- Input Offset Drift: 0.005μV/°C
- High Gain Bandwidth Product: 4.5MHz
- Rail-to-Rail Input and Output
- High Gain, CMRR, PSRR: 130dB
- High Slew Rate: 2.7V/μs
- Low Noise: 0.75μVp-p (0.01 ~ 10Hz)
- Low Power Consumption: 640μA/op amp
- Overload Recovery Time: 1μs
- Low Supply Voltage: +2.7V to +5.5V
- No External Capacitors Required
- Extended Temperature: -40°C to 125°C
