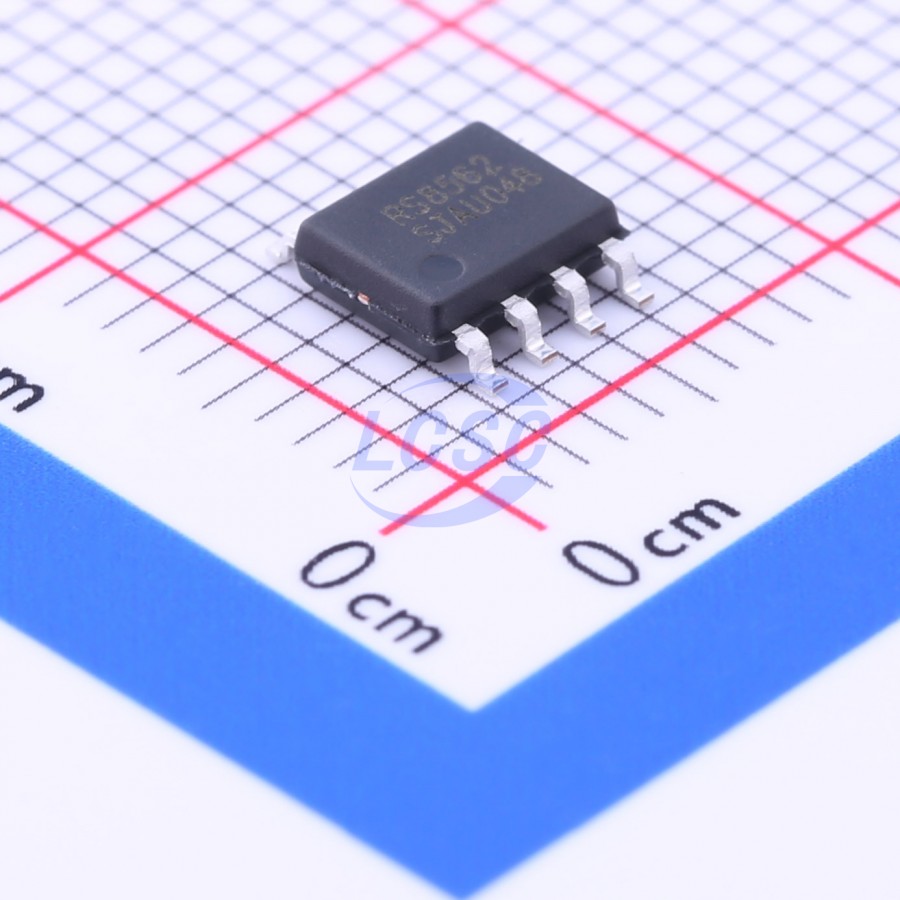

RUNICDatasheet (PDF)
RS8562XK
65mA 2 20uV 8.5V/us 120dB 1pA 1.3mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8562XK
- Store part #
- C236996
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,794 in stock
#C236996
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.42 | ₹104.42 |
| 10+ | ₹94.18 | ₹941.80 |
| 30+ | ₹67.57 | ₹2,027.10 |
| 100+ | ₹55.29 | ₹5,529.00 |
1 × ₹104.42
₹104.42
excl. GST
₹123.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8562XK
₹104.42 for 1 + GST
Specifications
- Output Current
- 65mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 20uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Quiescent Current
- 1.3mA
- Gain Bandwidth Product
- 11MHz
- Features
- Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 32nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.45V;1.45V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.9V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The RS8561, RS8562, RS8564, RS8563(dual version & shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (20uV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 11MHz and slew rate of 8.5V/us. Single or dual supplies as low as +2.9V (±1.45V) and up to +5.5V (±2.75V) may be used. The RS8561/RS8562/RS8564/RS8563 (dual version with shutdown) are specified for the extended industrial and automotive temperature range (-40°C to 125°C).
Applications
- Temperature Sensors
- Medical/Industrial Instrumentation
- Pressure Sensors
- Battery-Powered Instrumentation
- Active Filtering
- Weight Scale Sensor
- Strain Gage Amplifiers
- Power Converter/Inverter
Key features
- Low Offset Voltage: 20uV (MAX)
- Input Offset Drift: 0.1uV/°C (TYP)
- High Gain Bandwidth Product: 11MHz
- Rail-to-Rail Input and Output
- High Gain, CMRR, PSRR: 120dB(TYP)
- High Slew Rate: 8.5V/us
- Low Noise: 0.48uVp-p (0.01~10Hz)
- Low Power Consumption: 1.3mA /op amp
- Overload Recovery Time: 0.4us
- Low Supply Voltage: +2.9V to +5.5V
- No External Capacitors Required
- Extended Temperature: -40°C to 125°C
