RUNICDatasheet (PDF)

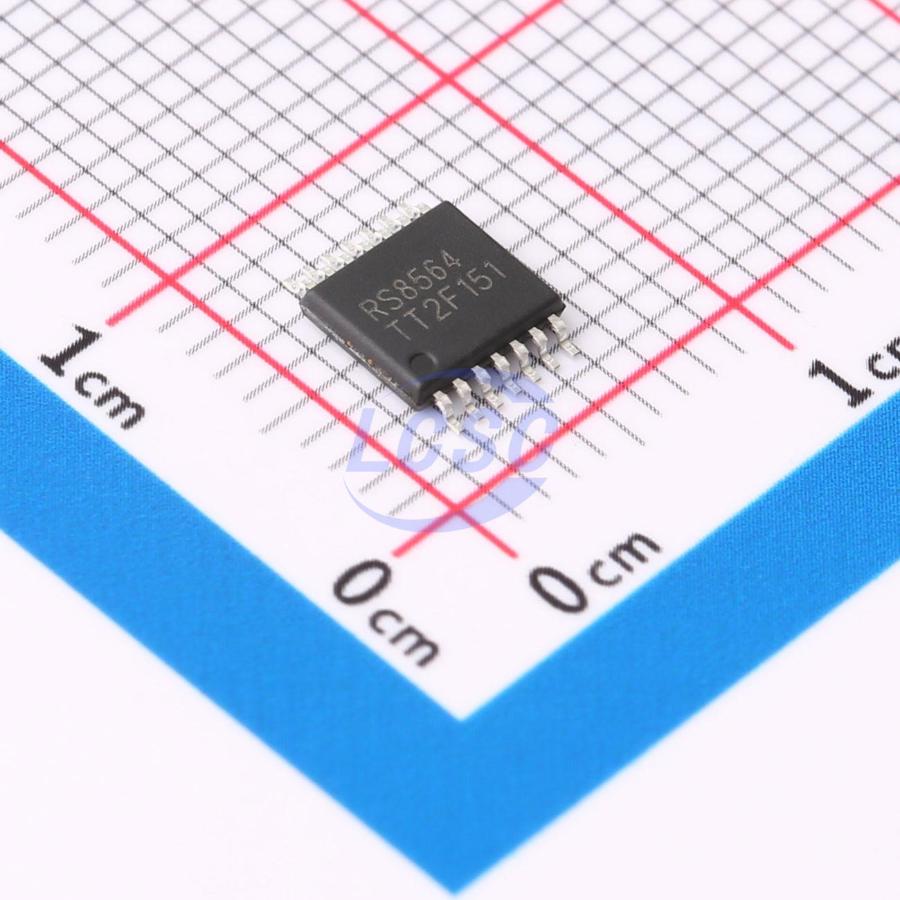

RS8564XQ
65mA Four channels 3uV 8.5V/us 120dB 1pA 1.3mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8564XQ
- Store part #
- C5372646
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C5372646
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹202.08 | ₹202.08 |
| 10+ | ₹155.24 | ₹1,552.40 |
| 30+ | ₹131.82 | ₹3,954.60 |
| 100+ | ₹108.42 | ₹10,842.00 |
1 × ₹202.08
₹202.08
excl. GST
₹238.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8564XQ
₹202.08 for 1 + GST
Specifications
- Output Current
- 65mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 3uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Quiescent Current
- 1.3mA
- Gain Bandwidth Product
- 11MHz
- Features
- Enable/shutdown function;Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 32nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.45V;1.45V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.9V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
- Low Offset Voltage: ±20uV (MAX) Input Offset Drift: ±0.1uV/°C (TYP) - High Gain Bandwidth Product: 11MHz - Rail-to-Rail Input and Output - High Gain, CMRR, PSRR: 120dB(TYP) - High Slew Rate: 8.5V/us - Low Noise: 0.48uVp-p (0.01Hz~10Hz) - Low Power Consumption: 1.3mA /op amp - Overload Recovery Time: 0.4us - Low Supply Voltage: +2.9V to +5.5V - No External Capacitors Required - Extended Temperature: -40°C to 125°C
Applications
- Temperature Sensors
- Medical/Industrial Instrumentation
- Pressure Sensors
- Battery-Powered Instrumentation
- Active Filtering
- Weight Scale Sensor
- Strain Gage Amplifiers
- Power Converter/Inverter
Key features
- Low Offset Voltage: ±20uV (MAX)
- Input Offset Drift: ±0.1uV/°C (TYP)
- High Gain Bandwidth Product: 11MHz
- Rail-to-Rail Input and Output
- High Gain, CMRR, PSRR: 120dB(TYP)
- High Slew Rate: 8.5V/us
- Low Noise: 0.48uVp-p (0.01Hz~10Hz)
- Low Power Consumption: 1.3mA /op amp
- Overload Recovery Time: 0.4us
- Low Supply Voltage: +2.9V to +5.5V
- No External Capacitors Required
- Extended Temperature: -40°C to 125°C
