RUNICDatasheet (PDF)

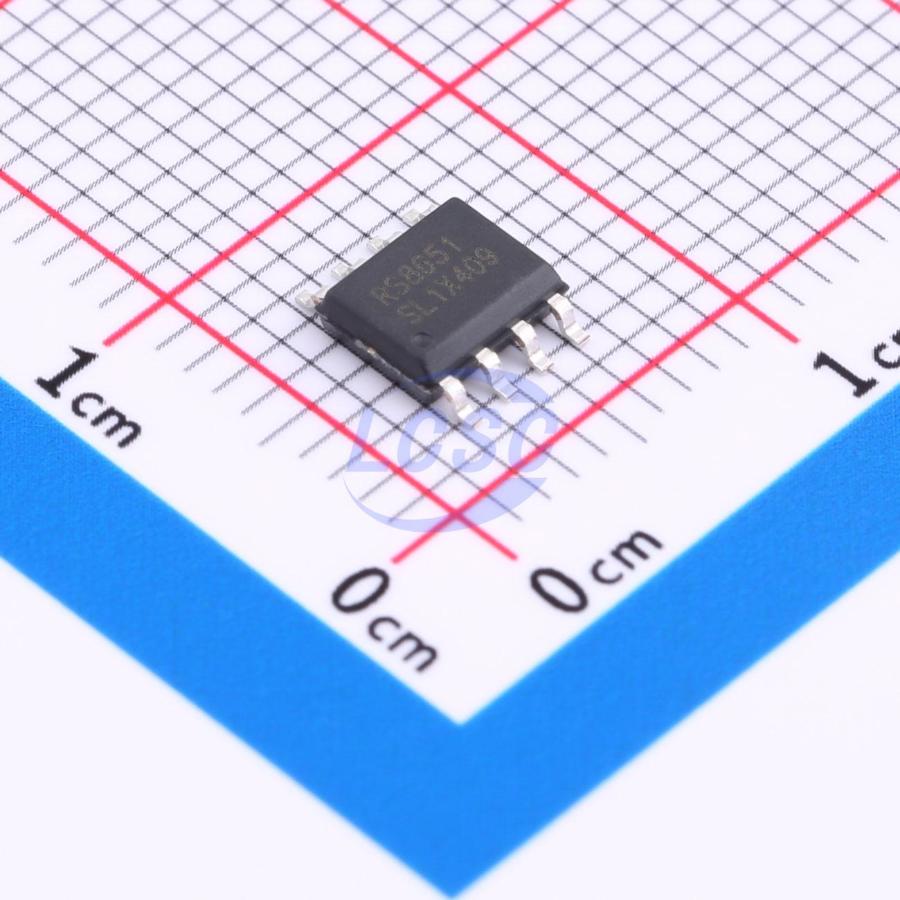

RS8651XK
80mA 1 3uV 1V/us 100pA 120dB 900uA 2MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
Precision, Zero-Drift, Rail-to-Rail Out, High-Voltage(32V) Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8651XK
- Store part #
- C5372648
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
991 in stock
#C5372648
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.05 | ₹117.05 |
| 10+ | ₹90.04 | ₹900.40 |
| 30+ | ₹76.43 | ₹2,292.90 |
| 100+ | ₹62.82 | ₹6,282.00 |
1 × ₹117.05
₹117.05
excl. GST
₹138.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8651XK
₹117.05 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3uV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Quiescent Current
- 900uA
- Gain Bandwidth Product
- 2MHz
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -16V~-1.65V;1.65V~16V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.117 g
Overview
The RS8651 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (20μv max) and near-zero drift over time and temperature. This family of amplifiers has ultra-low noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail output swing. With high gain-bandwidth product of 2.0MHz and slew rate of 1.0V/μs. Either single or dual supplies can be used in the range from 3.3V to 32V (±1.65V to ±16V). The RS8651 families of operational amplifiers are specified at the full temperature range of -40°C to +85°C.
Applications
- Temperature Measurements
- Semiconductor Test
- Pressure Sensors
- Medical Equipment
- Test Equipment
- Driving A/D Converters
- Precision Current Sensing
Key features
- Gain-Bandwidth Product: 2.0MHz
- Low Offset Voltage: 20μV (Max)
- Input Offset Drift: ±0.1μV/°C
- Low Input Noise: 0.6μVpp (0.1Hz to 10Hz)
- Low Supply Current: 900μA (TYP)
- Rail to Rail Output
- Excellent DC Precision:
- PSRR: 130dB
- CMRR: 120dB
- Open-Loop Gain: 130dB
- Single-Supply Operation: 3.3V to 32V
- Dual-Supply Operation: ±1.65V to ±16V
- SPECIFIED UP TO ±85°C
- Micro SIZE PACKAGES: SOIC-8(SOP8)
