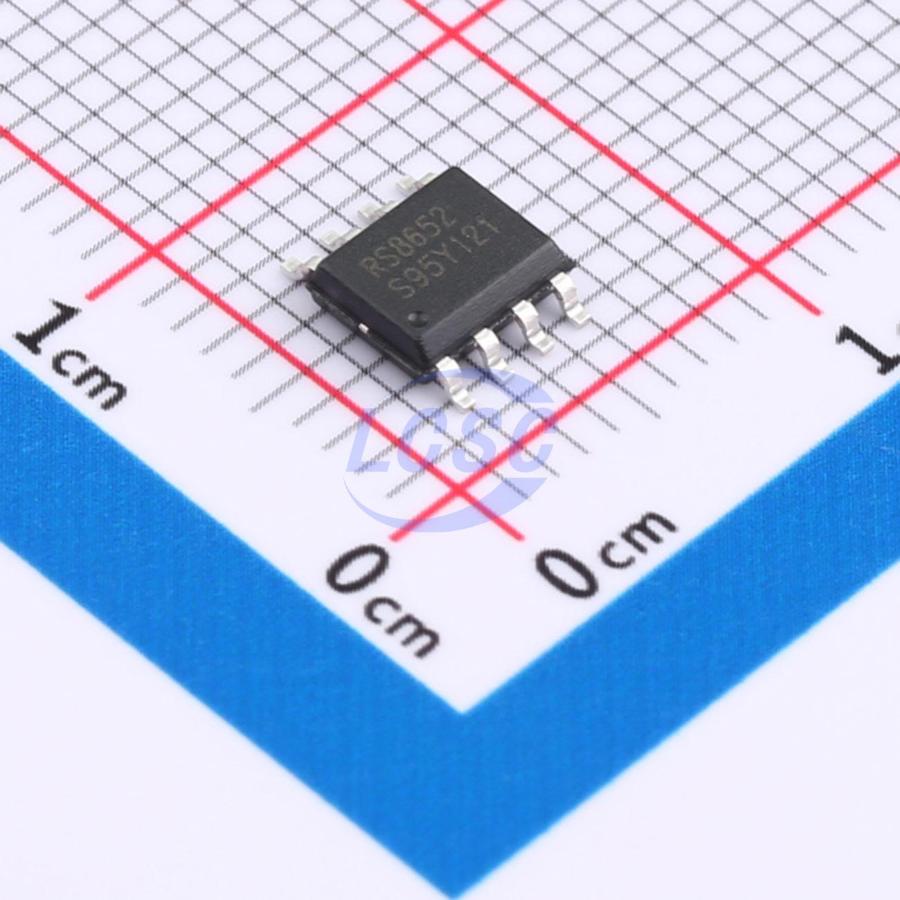

RUNICDatasheet (PDF)
RS8652XK
80mA 2 20uV 1V/us 100pA 120dB 1.8mA 2MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
Precision, Zero-Drift, Rail-to-Rail Out, High-Voltage Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8652XK
- Store part #
- C5372649
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,279 in stock
#C5372649
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.14 | ₹147.14 |
| 10+ | ₹117.51 | ₹1,175.10 |
| 30+ | ₹101.21 | ₹3,036.30 |
| 100+ | ₹82.57 | ₹8,257.00 |
1 × ₹147.14
₹147.14
excl. GST
₹173.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8652XK
₹147.14 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 20uV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 150nV/℃
- Quiescent Current
- 1.8mA
- Gain Bandwidth Product
- 2MHz
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -16V~-1.65V;1.65V~16V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The RS8652 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (20μv max) and near-zero drift over time and temperature. This family of amplifiers has ultra-low noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail output swing. With high gain-bandwidth product of 2.0MHz and slew rate of 1.0V/μs. Either single or dual supplies can be used in the range from 3.3V to 32V (±1.65V to ±16V). The RS8652 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C.
Applications
- Temperature Measurements
- Semiconductor Test Pressure Sensors
- Medical Equipment
- Test Equipment
- Driving A/D Converters Precision Current Sensing
Key features
- Gain-Bandwidth Product: 2.0MHz
- Low Offset Voltage: 20μν (Max) Input Offset Drift: ±0.15μν/°C
- Low Input Noise: 0.6μVpp (0.1Hz to 10Hz)
- Low Supply Current: 1.8mA (TYP) Rail to Rail Output
- Excellent DC Precision:
- PSRR: 130dB
- CMRR: 120dB
- Open-Loop Gain: 130dB
- Single-Supply Operation: 3.3V to 32V Dual-Supply Operation: ±1.65V to ±16V
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOIC-8/MSOP-8
