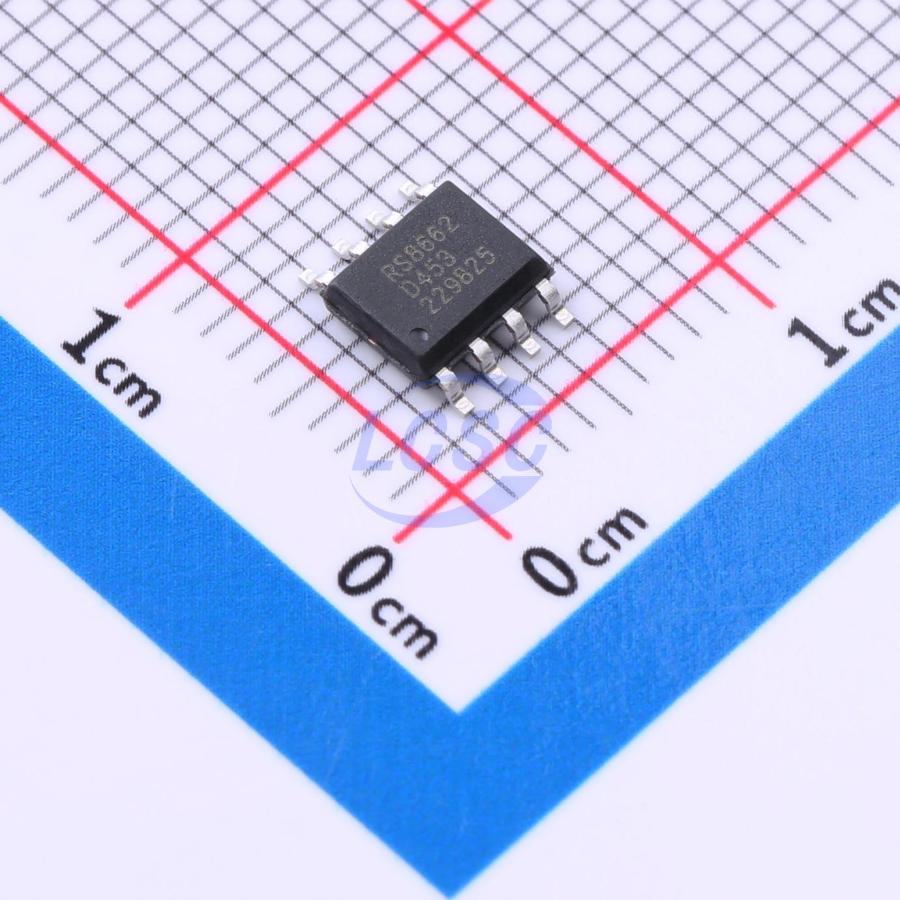

RUNIC

RS8662XK-G

60mA 2 5uV 15V/us 300pA 150dB 2mA 11MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

36V,11MHz Rail-to-Rail Output Zero Drift Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8662XK-G
Store part #: C42459678
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

788 in stock

#C42459678

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹142.66	₹142.66
10+	₹118.92	₹1,189.20
30+	₹105.87	₹3,176.10
100+	₹90.90	₹9,090.00
500+	₹83.63	₹41,815.00
1,000+	₹80.64	₹80,640.00

Quantity (min 1)

1 × ₹142.66

₹142.66

excl. GST

₹168.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8662XK-G

₹142.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 15V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 300pA
Common Mode Rejection Ratio(CMRR): 150dB
Input Offset Voltage Drift(Vos TC): 100nV/℃
Quiescent Current: 2mA
Gain Bandwidth Product: 11MHz
Features: Zero drift / auto-zero
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Dual Supply: -18V~-2.25V;2.25V~18V
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The RS866X is a low noise, low offset voltage and high voltage operational amplifier, which can be designed into a wide range of applications. The RS866X has a gainbandwidth product of 11MHz, a slew rate of 15V/µs and a quiescent current of 2.0mA at wide power supply range. The RS866X is designed to provide optimal performance in low noise systems. It provides rail-to rail output swing into heavy loads. The RS866X has over-temperature protection feature to guarantee the chip safe. The output of RS866X will enter high impendence when die temperature reach around 170°C and will recover the function when the die temperature down to around 150°C. The RS866X is available in Green SOT23-5, SOP8, MSOP8 and SOP14 packages. It operates over an ambient temperature range of -40°C to +125°C under single power supplies of 4.5V to 36V or dual power supplies of ±2.25V to ±18V.
