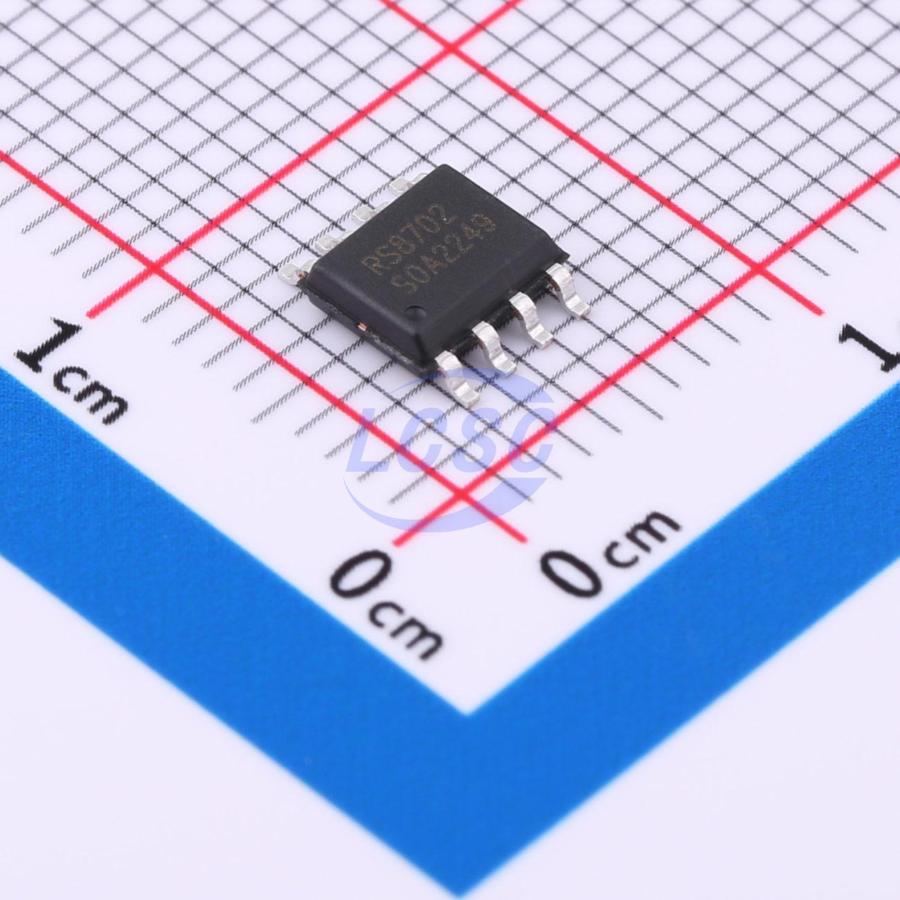

RS8702XK

The zero-crossover series, rail-to-rail, high performance, CMOS operational amplifiers are optimized for very low voltage, single-supply applications. Rail-to-rail input or output, low-noise (4.4uVpp) and high-speed operation (50MHz Gain Bandwidth) make these devices ideal for driving sampling analog-to-digital converters (ADCs). Applications include audio, signal conditioning, and sensor amplification. The family of op amps are also well-suited for cell phone power amplifier control loops. Special features include an excellent common-mode rejection ratio (CMRR), no input stage crossover distortion, high input impedance, and rail-to-rail input and output swing. The input common-mode range includes both the negative and positive supplies. The dual version is offered in the SOIC8(SOP8) and MSOP-8 package. All versions are specified for operation from -40°C to +125°C.

Applications

• Signal Conditioning
• Data Acquisition
• Process Control
• Active Filters
• Test Equipment
• Audio Wideband Amplifiers

Key features

• GAIN BANDWIDTH: 50MHz
• Zero-Crossover Distortion
• Topology: CMRR: 100 dB (TYP)
• Rail-to-Rail Input and Output
• Low Noise: 4.4uVpp at 0.1Hz ~10Hz
• Slew Rate: 40V/μs
• Fast Settling: 270ns to 0.01%
• Precision: Low Offset: 100uV (TYP)
• Low Input Bias Current: 50pA (TYP)
• SUPPLY RANGE: +2.2V to +5.5V
• SPECIFIED UP TO ±125°C
• Micro SIZE PACKAGES: SOIC-8(SOP8)、 MSOP-8
