RUNICDatasheet (PDF)

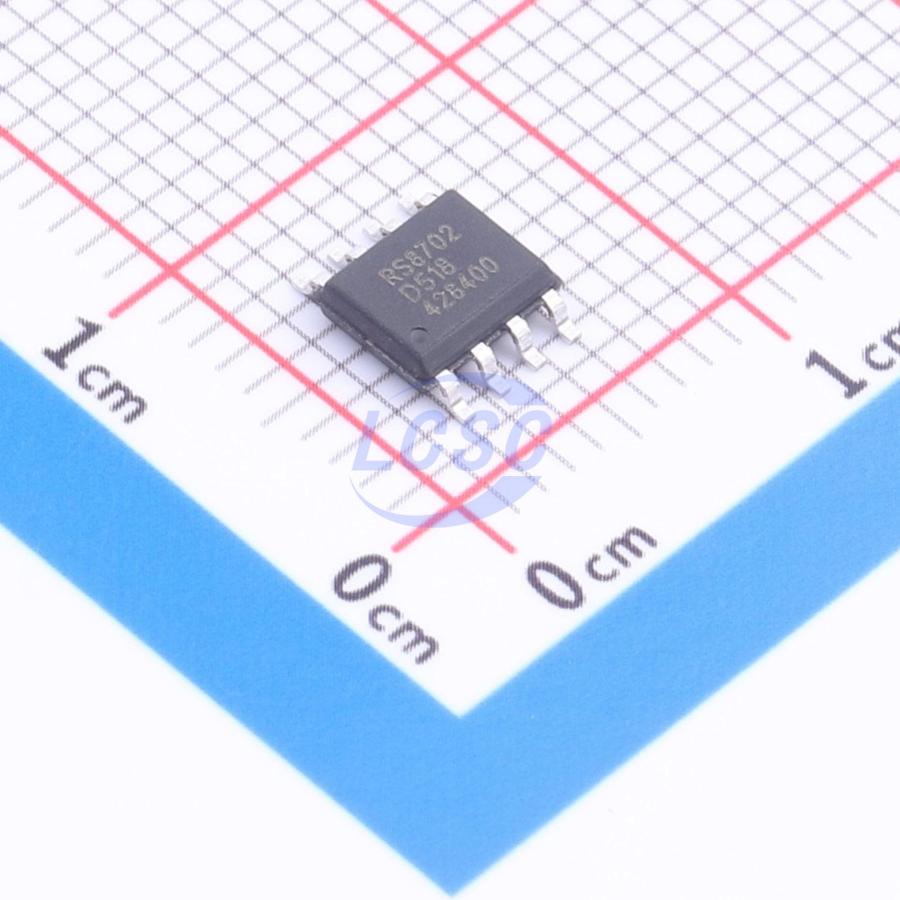

RS8702XK-Q1
180mA 35uV 40V/us 96dB 10pA 50MHz 7.6mA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8702XK-Q1
- Store part #
- C42459681
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,832 in stock
#C42459681
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.21 | ₹128.21 |
| 10+ | ₹102.06 | ₹1,020.60 |
| 30+ | ₹89.08 | ₹2,672.40 |
| 100+ | ₹76.11 | ₹7,611.00 |
| 500+ | ₹71.35 | ₹35,675.00 |
| 1,000+ | ₹67.25 | ₹67,250.00 |
1 × ₹128.21
₹128.21
excl. GST
₹151.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8702XK-Q1
₹128.21 for 1 + GST
Specifications
- Output Current
- 180mA
- Vos - Input Offset Voltage
- 35uV
- Slew Rate
- 40V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 96dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Gain Bandwidth Product
- 50MHz
- Quiescent Current
- 7.6mA
- Input Voltage Noise Density
- 4nV/√Hz@100kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.197 g
Overview
The RS870X-Q1 zero-crossover distortion series, rail-to-rail, high-performance CMOS op amps are optimized for ultra-low voltage, single-supply applications. Rail-to-rail input and output, low noise (4.4µVₚ₋ₚ), and high-speed operation (50MHz gain bandwidth) make these devices ideal for driving sampling ADCs. Applications include audio, signal conditioning, and sensor amplification. This op amp series is also well-suited for mobile phone power amplifier control loops. Special features include excellent CMRR, no input stage crossover distortion, high input impedance, and rail-to-rail input and output swing. The input common-mode range extends from the negative supply to the positive supply. These devices are ideal for sensor interfaces, active filters, and portable applications. This op amp series is specified over the full temperature range of -40°C to +125°C with single or dual supplies from 2.2V to 5.5V.
Applications
- Signal Conditioning
- Data Acquisition
- Process Control
- Active Filters
- Test Equipment
- Audio
- Wideband Amplifiers
Key features
- Gain Bandwidth: 50MHz
- Zero crossover distortion topology
- CMRR: 96 dB (typical)
- Rail-to-rail input and output
- Low noise: 4.4µVₚ₋ₚ in 0.1Hz~10Hz band
- Slew rate: 40V/µs
- Fast settling: 270ns to 0.01% accuracy
- Low offset voltage: ±35µV (typical)
- Low input bias current: 10pA (typical)
- Supply range: +2.2V to +5.5V
- Operating temperature up to +125°C
- Compact packages: SOT23-5, SOP8
