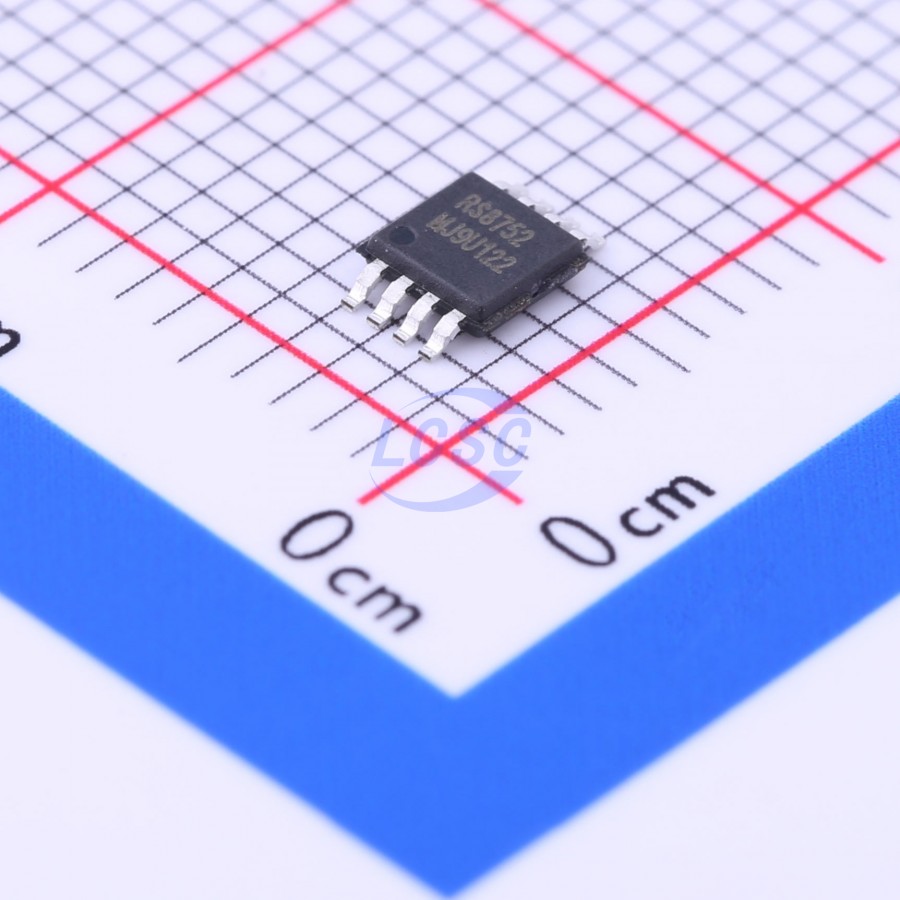

RUNIC

RS8752XM

85mA 1 1.5mV 180V/us 85dB 1pA 250MHz 2.9mA Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

250MHz, Rail-to-Rail Output CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8752XM
Store part #: C255421
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25,165 in stock

#C255421

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹51.82	₹259.10
50+	₹38.82	₹1,941.00
150+	₹33.18	₹4,977.00
500+	₹26.02	₹13,010.00

Quantity (min 5, multiples of 5)

5 × ₹51.82

₹259.10

excl. GST

₹305.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8752XM

₹259.10 for 5 + GST

Specifications

Output Current: 85mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.5mV
Slew Rate: 180V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Gain Bandwidth Product: 250MHz
Quiescent Current: 2.9mA
Features: Built-in compensation
Input Voltage Noise Density: 8nV/√Hz@1MHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

The RS875X families of voltage-feedback (VFB) products offer low voltage operation, negative-rail input, rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. These amplifiers set an industry-leading power-to-performance ratio for rail-to-rail amplifiers. The RS875X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
