RUNICDatasheet (PDF)

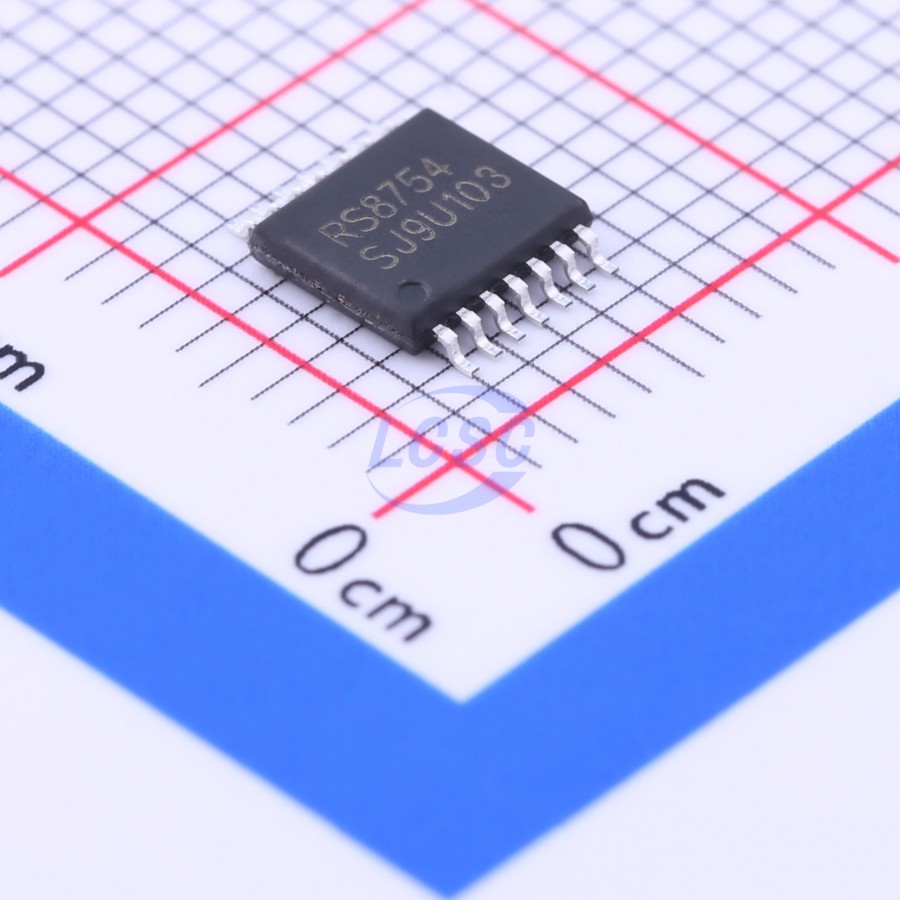

RS8754XQ
85mA 1 1.5mV 180V/us 85dB 1pA 250MHz 2.9mA Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps
TSSOP-14RoHSActive
250MHz, Rail-to-Rail Output CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8754XQ
- Store part #
- C236993
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,718 in stock
#C236993
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.22 | ₹67.22 |
| 10+ | ₹47.48 | ₹474.80 |
| 30+ | ₹39.03 | ₹1,170.90 |
1 × ₹67.22
₹67.22
excl. GST
₹79.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8754XQ
₹67.22 for 1 + GST
Specifications
- Output Current
- 85mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1.5mV
- Slew Rate
- 180V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Gain Bandwidth Product
- 250MHz
- Quiescent Current
- 2.9mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1MHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The RS875X families of voltage-feedback (VFB) products offer low voltage operation, negative-rail input, rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. These amplifiers set an industry-leading power-to-performance ratio for rail-to-rail amplifiers. The RS875X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
Applications
- AUDIO ADC INPUT BUFFERS
- PHOTODIODE PREAMP
- HIGH-DENSITY SYSTEMS
- PORTABLE SYSTEMS DRIVING A/D CONVERTERS
Key features
- HIGH GAIN BANDWIDTH: 250MHz
- RAIL-TO-RAIL OUTPUT
- 1.5mV Typical Vos
- INPUT VOLTAGE RANGE: -0.2V to +3.98 with VS = 5V
- SUPPLY RANGE: +2.5V to +5.5V
- SPECIFIED UP TO ±125°C
- MicroSIZE PACKAGES: SOT23-5
