RUNICDatasheet (PDF)

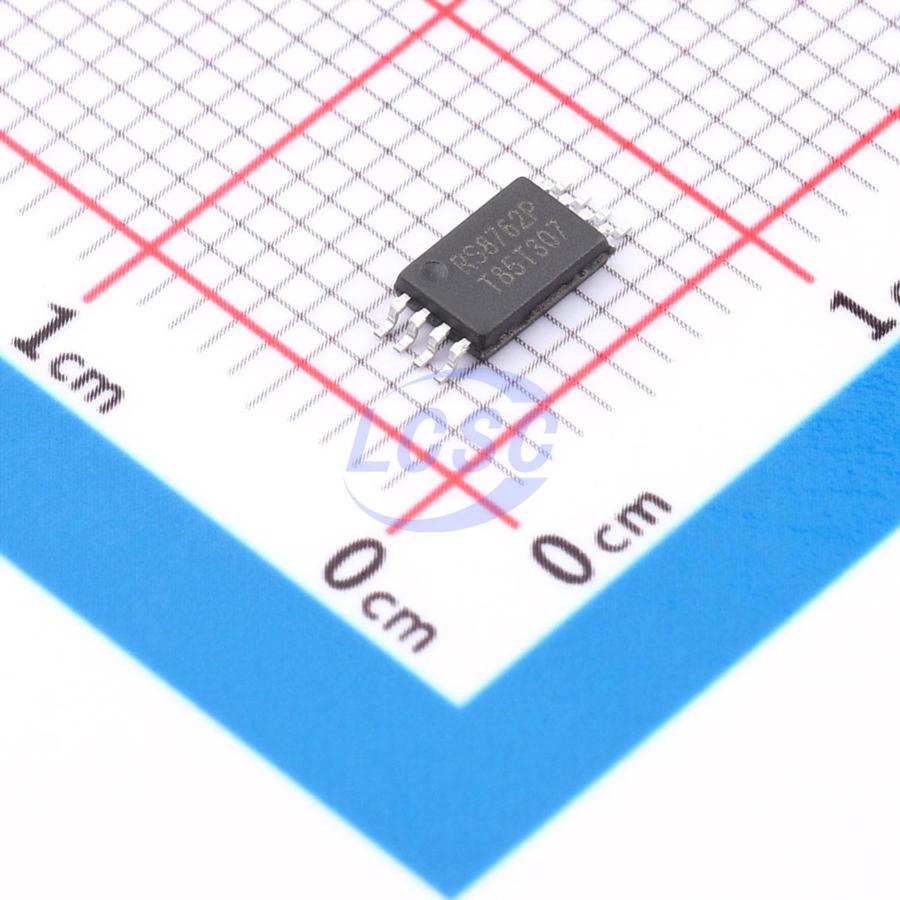

RS8762PXQ
100mA 2 1mV 180V/us 80dB 3pA 120MHz 8.3mA Rail-to-Rail Input, Rail-to-Rail Output TSSOP8 Instrumentation, Op Amps, Buffer Amps
TSSOP8RoHSActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8762PXQ
- Store part #
- C50201998
- Package / case
- TSSOP8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,930 in stock
#C50201998
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.51 | ₹127.55 |
| 50+ | ₹20.03 | ₹1,001.50 |
| 150+ | ₹17.68 | ₹2,652.00 |
| 500+ | ₹14.75 | ₹7,375.00 |
| 2,500+ | ₹13.45 | ₹33,625.00 |
| 4,000+ | ₹12.66 | ₹50,640.00 |
5 × ₹25.51
₹127.55
excl. GST
₹150.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS8762PXQ
₹127.55 for 5 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 180V/us
- Input Offset Current(Ios)
- 3pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 3pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Gain Bandwidth Product
- 120MHz
- Quiescent Current
- 8.3mA
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 6nV/√Hz@1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The RS876XP families of voltage-feedback (VFB) products offer low voltage operation, rail to rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/μs. The op-amps are unity gain stable and feature an ultra-low input bias current. These amplifiers set an industry-leading power-to-performance ratio for rail-to-rail amplifiers. The RS876XP families of operational amplifiers are specified at the full temperature range of -40°C to 125°C under single or dual power supplies of 2.7V to 5.5V.
Applications
- Audio ADC Input Buffers
- Photodiode Preamp
- High-Density Systems
- Portable Systems
- Driving A/D Converters
- Video Processing
Key features
- Unity-Gain Bandwidth: 250MHz
- Gain Bandwidth: 120MHz
- High Slew Rate: 180V/μs
- Offset Voltage: 1mV typical
- Low Noise: δnV/√Hz
- Input Voltage Range: -0.1V to VS+0.1V with VS = 5V
- High Output Current: >100mA
- Supply Range: ±2.78 to +5.5V Specified Up To +125°C
