RICHTEKDatasheet (PDF)

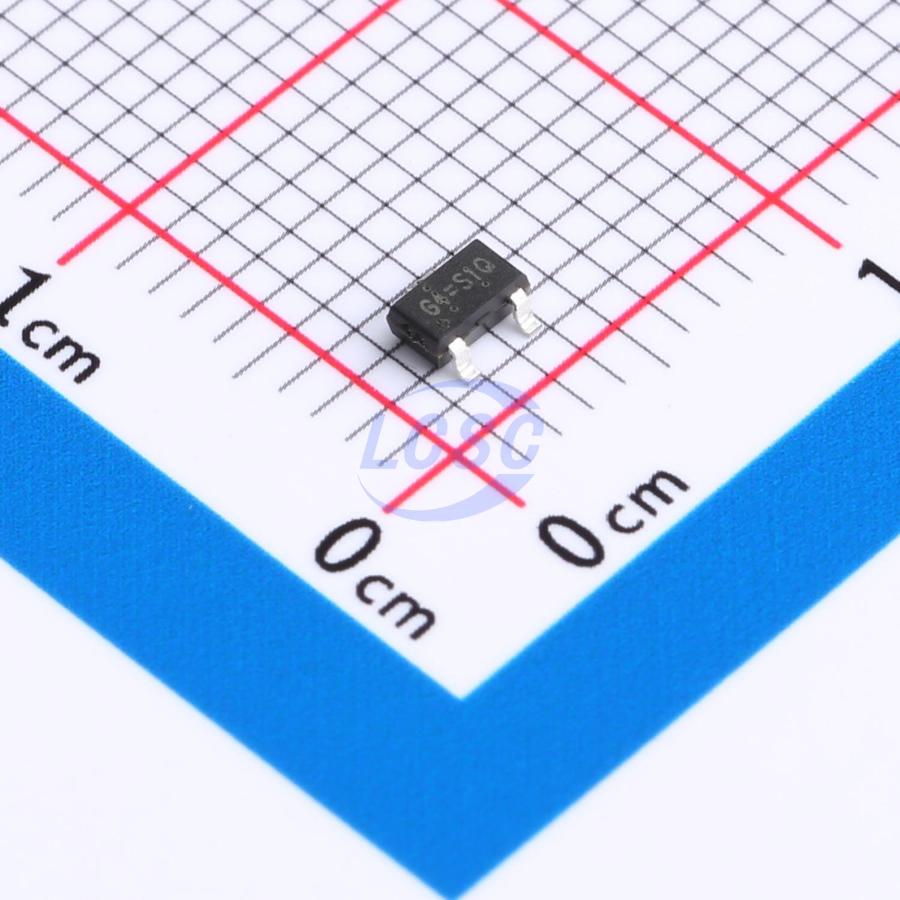

RT9166-18GVL
1.8V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3LROHS3 CompliantActive
300/600mA, Ultra-Fast Transient Response LDo Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9166-18GVL
- Store part #
- C3019175
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,850 in stock
#C3019175
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.29 | ₹111.45 |
| 50+ | ₹17.65 | ₹882.50 |
| 150+ | ₹15.65 | ₹2,347.50 |
| 500+ | ₹13.18 | ₹6,590.00 |
| 3,000+ | ₹12.07 | ₹36,210.00 |
| 6,000+ | ₹11.40 | ₹68,400.00 |
5 × ₹22.29
₹111.45
excl. GST
₹131.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9166-18GVL
₹111.45 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The RT9166/A series are CMOS low dropout regulators optimized for ultra-fast transient response. The devices are capable of supplying 300mA or 600mA of output current with a dropout voltage of 230mV or 580mV respectively. The RT9166/A series are is optimized for CD/DVD-ROM, CD/RW or wireless communication supply applications. The RT9166/A regulators are stable with output capacitors as low as 1μF. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. The devices are available in fixed output voltages range of 1.2V to 4.5V with 0.1V per step. The RT9166/A regulators are available in 3-lead SOT-23 (RT9166 only), SOT-89, SOT-223, TO-92 and TO-252 packages.
Applications
- CD/DVD-ROM, CD/RW
- Wireless LAN Card/Keyboard/Mouse
- Battery-Powered Equipment
- XDSL Router
- PCMCIA Card
Key features
- Low Quiescent Current (Typically 220μA)
- Guaranteed 300/600mA Output Current
- Low Dropout Voltage: 230/580mV at 300/600mA
- Wide Operating Voltage Ranges: 3V to 5.5V
- Ultra-Fast Transient Response
- Tight Load and Line Regulation
- Current Limiting Protection
- Thermal Shutdown Protection
- Only Low-ESR Ceramic Capacitor Required for Stability
- Custom Voltage Available
- RoHS Compliant and 100% Lead (Pb)-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9166-18GVL(Z00)#C130827RICHTEK · SOT-23 | RICHTEK | SOT-23 | 150 | ₹49.23 · 150 in stock | View |
 | AX6601-18RA#C224227Axelite Tech · SOT-23 | Axelite Tech | SOT-23 | 2,605 | ₹20.14 · 2,605 in stock | View |
 | TPL720F18-3TR#C387372333PEAK · SOT-23-3 | 3PEAK | SOT-23-3 | 2,050 | ₹14.38 · 2,050 in stock | View |
 | MD52E18QA3#C2978389Mingda Microelectronics · SOT-23-3L | Mingda Microelectronics | SOT-23-3L | 75 | ₹18.18 · 75 in stock | View |
 | DS8571-18SS3#C48533035DSTECH · SSOT-23 | DSTECH | SSOT-23 | 500 | ₹3.16 · 500 in stock | View |
