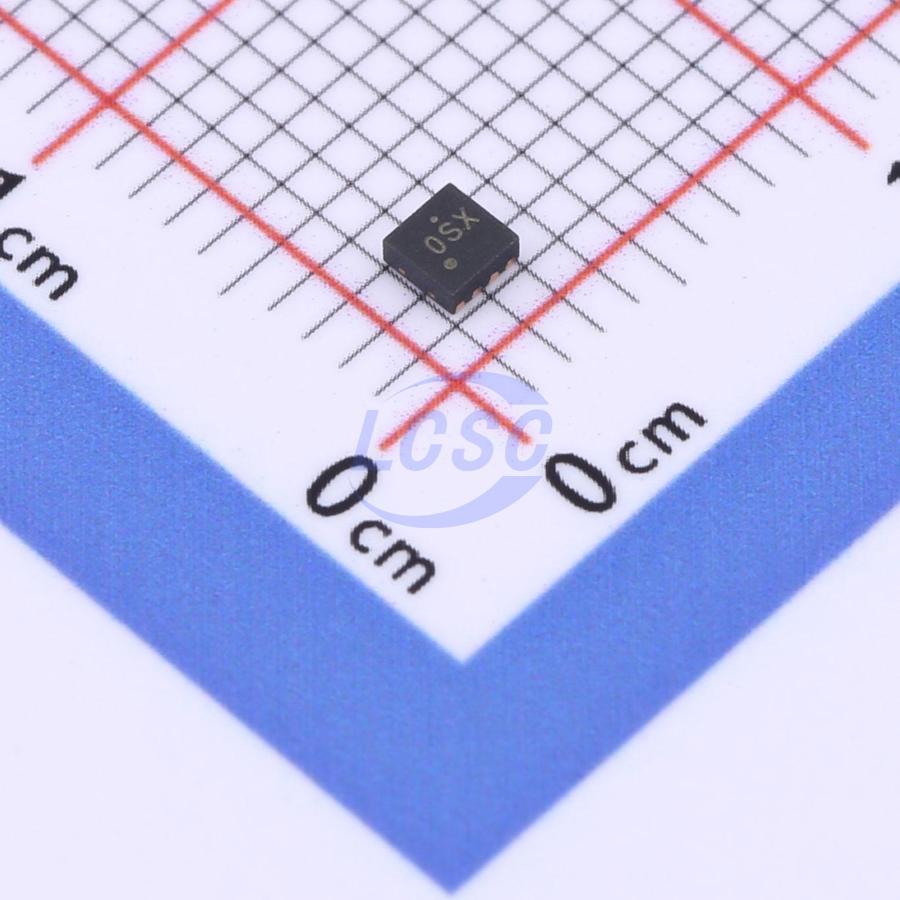

RICHTEK

RT9527GQW

4.4V~6V 1 Lithium Battery 600mA WDFN-8-EP(2x2) Battery Chargers RoHS

WDFN-8-EP(2x2)ROHS3 CompliantActive

Single Cell Li-lon Battery Charger with Adjustable Charging Current for Portable Applications

Manufacturer: RICHTEK
Manufacturer part #: RT9527GQW
Store part #: C3028965
Package / case: WDFN-8-EP(2x2)
Category: Battery Chargers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,304 in stock

#C3028965

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹62.80	₹62.80
10+	₹49.55	₹495.50
30+	₹43.90	₹1,317.00
100+	₹36.73	₹3,673.00
500+	₹33.47	₹16,735.00
1,000+	₹31.73	₹31,730.00

Quantity (min 1)

1 × ₹62.80

₹62.80

excl. GST

₹74.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

RT9527GQW

₹62.80 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.4V~6V
Quiescent Current: 1uA
Operating Temperature: -40℃~+85℃
Number of Cells: 1
Features: Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout
Battery Temperature Detection: Support
Type of Battery: Lithium Battery
The Chip Type: Charging IC
Charge Current - Max: 600mA
Charging Saturation Voltage: 4.2V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The RT9527 is a low cost single-cell Li-ion charger for low current charge applications. The RT9527 can be powered up from an AC adapter or USB (Universal Serial Bus) port inputs. The RT9527 enters sleep mode when VIN power is removed. The RT9527 optimizes the charging task by using a control algorithm, which includes pre-charge mode, fast-charge mode and constant voltage mode. The charging task is kept in constant voltage mode to hold the battery in a full charge condition. The charge current is adjustable via an external resistor. The internal thermal feedback circuitry regulates the die temperature to optimize the charge rate for all ambient temperatures. The RT9527 features 28V maximum rating voltages for VIN. Other features include under voltage protection and over voltage protection for the AC adapter supply. The RT9527 is available in a WDFN-8L 2x2 package. The recommended junction temperature range is -40°C to 125°C, and the ambient temperature range is -40°C to 85°C.

Applications

Cellular Phones
Digital Cameras
PDAs and Smart Phone
Portable Instruments

Key features

28V Maximum Rating for AC Adapter
Internal Integrated Power FETs
Adjustable Charging Current
Programmable Safe Charge Timer
NTC Thermistor Input
Battery Reverse Protection
ISET Pin Short Protection
Charge Status Indicator
AC Adapter Power Good Status Indicator
End of Charge Current is 10% of Fast-Charge Current
Under Voltage Protection
Over Voltage Protection
Thermal Feedback Optimized Charge Rate
Small Thermally Enhanced 8-Lead WDFN Package
RoHS Compliant and Halogen Free
