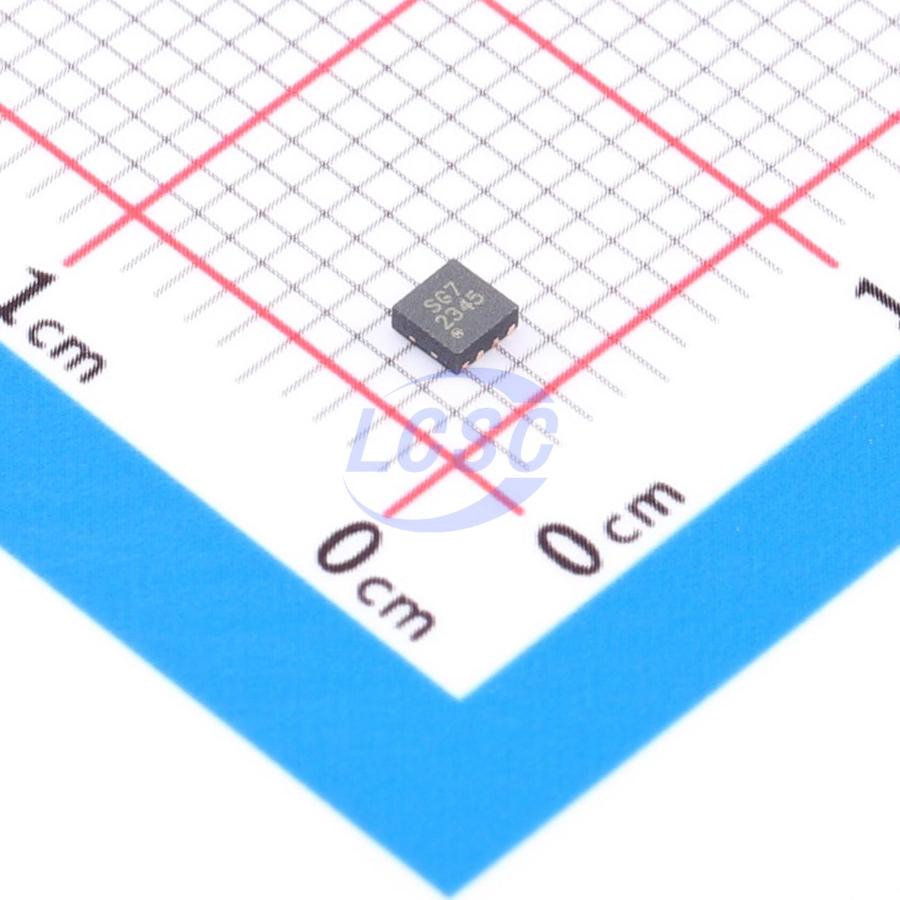

SGM4056-6.8YTDE8G/TR
Lithium Battery 900mA TDFN-8L(2x2) Battery Management
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM4056-6.8YTDE8G/TR
- Store part #
- C699732
- Package / case
- TDFN-8L(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,407 in stock
#C699732
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.80 | ₹74.80 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹47.71 | ₹1,431.30 |
| 100+ | ₹37.73 | ₹3,773.00 |
1 × ₹74.80
₹74.80
excl. GST
₹88.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM4056-6.8YTDE8G/TR
₹74.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.55V~6.1V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Programmable charging current;Overvoltage protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 900mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Overview
The SGM4056 is a low cost battery charger with integrated high input voltage capability for single-cell Li-Ion or Li-polymer batteries. The SGM4056 has a CC/CV charge profile required for Li-Ion battery. The SGM4056 features the over-voltage protection (OVP) function. The OVP threshold is typically 6.8V (SGM4056-6.8) or 10.5V (SGM4056-10.5). The SGM4056 accepts a 26.5V maximum voltage for power input, when VIN > VOVP, the charger is disabled. The SGM4056 has a charge indication feature. When the charger is disabled or the input is floating, the leakage current from the battery is <1μA. The SGM4056 is available in Green TDFN-3×3-8L, TDFN-2×3-8L, TDFN-2×2-8L and SOIC-8 (Exposed Pad) packages and is rated over the -40°C to +85°C temperature range.
Applications
- Handheld Devices
- Smart Phones
- Portable Internet Devices and Accessory
- Standalone Chargers
Key features
- Input Over-Voltage Protection Thresholds: 6.8V (TYP) for SGM4056-6.8; 10.5V (TYP) for SGM4056-10.5
- Trickle Charge Threshold: 2.55V
- Power Input Voltage up to 26.5V
- Less Components and Low Cost
- Selectable Charge Current
- Selectable EOC Current
- Thermal Regulation Function
- Charging Status Indication
- <1μA (MAX) Leakage Current when Charger Disabled or Input Floating
- Available in Green TDFN-3×3-8L, TDFN-2×3-8L, TDFN-2×2-8L and SOIC-8 (Exposed Pad) Packages
