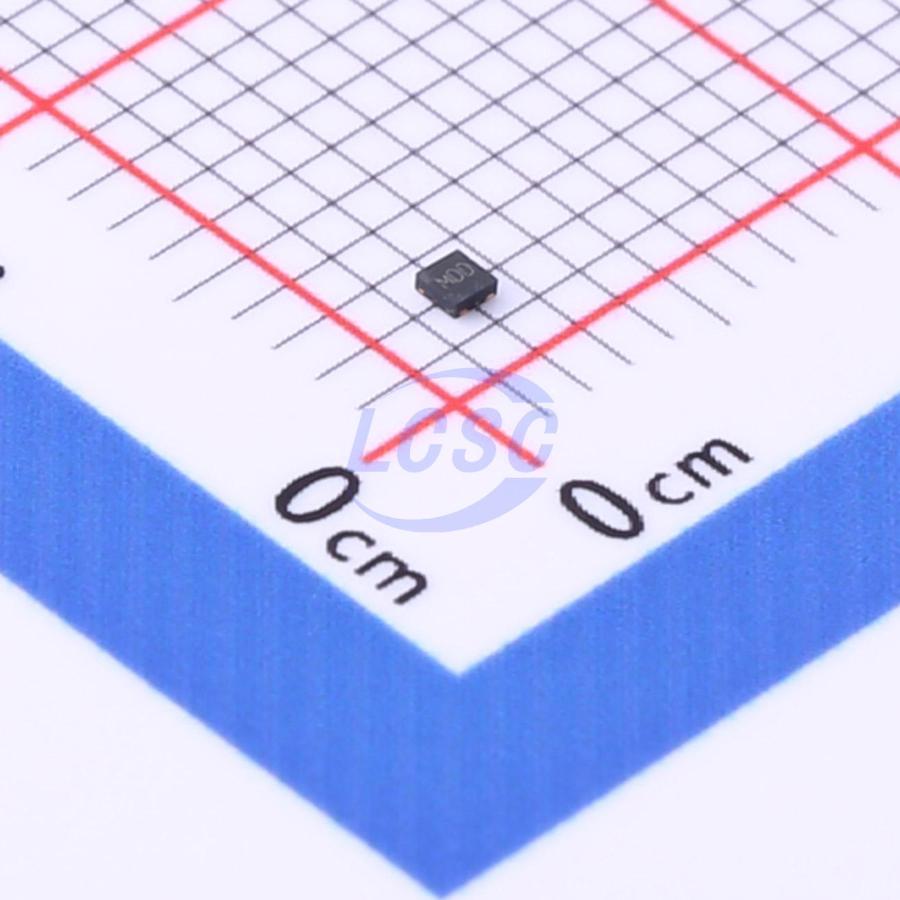

RY2231B1D4
Lithium Battery 900mA DFN-4-EP(1x1) Battery Management RoHS
One Cell Li-ion and Li-poly Battery Protection IC
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY2231B1D4
- Store part #
- C2843221
- Package / case
- DFN-4-EP(1x1)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,330 in stock
#C2843221
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.78 | ₹77.80 |
| 100+ | ₹6.11 | ₹611.00 |
| 300+ | ₹5.27 | ₹1,581.00 |
| 1,000+ | ₹4.64 | ₹4,640.00 |
10 × ₹7.78
₹77.80
excl. GST
₹91.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
RY2231B1D4
₹77.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 900mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.014 g
Overview
A high integration solution for lithium-ion/polymer battery protection. Contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits. Has all the protection functions required in the battery application including overcharging, over discharging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. Targeted for digital cellular phones and other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life. Does not require external resistor and capacitor, is available in a space saving DFN4-1×1 package.
Applications
- One-Cell Li-ion Battery Pack Power Bank
- One-Cell Li-poly Battery Pack IOT Sensor/Electronic Toys/Wearable Devices
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Over-Temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: Over Discharge Current, Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- 55mΩ Low RSS(ON) Internal Power MOSFET
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption: Operation Mode: 0.7μA typ., Power-down Mode: 0.1μA typ.
- Resistor and Capacitor inside
- Available in DFN4-1×1 Package
- -40°C to +85°C Temperature Range
