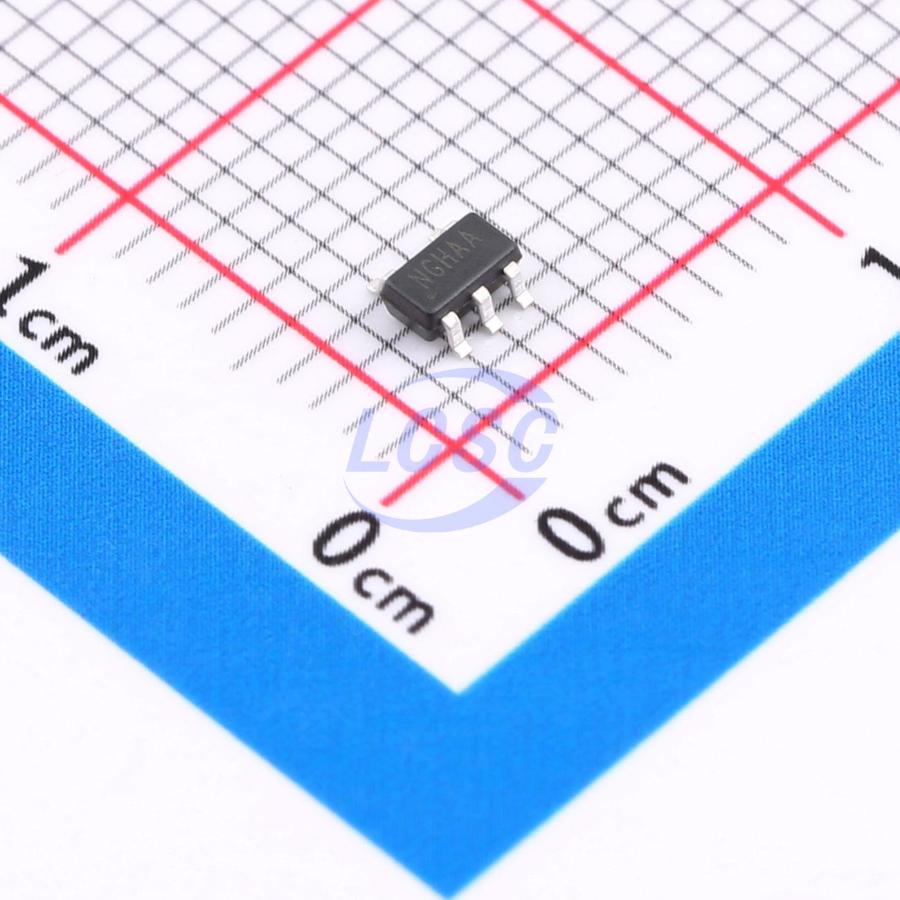

RY4064AT5
Battery Charging IC Lithium Battery SOT-23-5
Standalone Linear Li-lon Battery Charger
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY4064AT5
- Store part #
- C48580209
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C48580209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.45 | ₹74.50 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.82 | ₹34,380.00 |
10 × ₹7.45
₹74.50
excl. GST
₹87.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY4064AT5
₹74.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~30V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
RY4064 is a complete constant-current/constant-voltage linear charger for single-cell lithium-ion batteries. Its SOT package and minimal external component count make the RY4064 ideal for portable applications. In addition, the RY4064 is designed to operate within USB power specifications. The internal MOSFET architecture eliminates the need for external sense resistors and blocking diodes. A thermal feedback function regulates the charge current to limit the die temperature during high-power operation or elevated ambient temperatures. The charge voltage is fixed at 4.2V, and the charge current is externally programmable via a single resistor. When the final float voltage is reached and the charge current drops to one-tenth of the programmed value, the RY4064 automatically terminates the charge cycle. When the input power source (wall adapter or USB supply) is removed, the RY4064 automatically enters a low-current state, reducing battery drain to below 2µA. The RY4064 can be placed in shutdown mode, reducing supply current to 25µA. Additional features include charge current monitoring, undervoltage lockout, automatic recharge, and a status pin indicating charge termination and input voltage presence.
Applications
- Cellular phones
- Charging docks and cradles
- Bluetooth applications
- Wearable applications
Key features
- Constant current/constant voltage operation with thermal regulation to maximize charge rate without risk of overheating
- No MOSFET, sense resistor, or blocking diode required
- Complete single-cell Li-Ion linear charger in SOT package
- Charges single-cell Li-Ion batteries directly from USB port
- Charge current monitor output for fuel gauging
- Automatic recharge
- Charge status output pin
- C/10 charge termination
- Programmable charge current up to 500mA
- Preset 4.2V charge voltage with ±1% accuracy
- 6.4V input overvoltage protection
- 25µA supply current in shutdown mode
- 2.9V trickle charge threshold
- Soft-start to limit inrush current
- Available in SOT23 package
- RoHS compliant and lead-free
