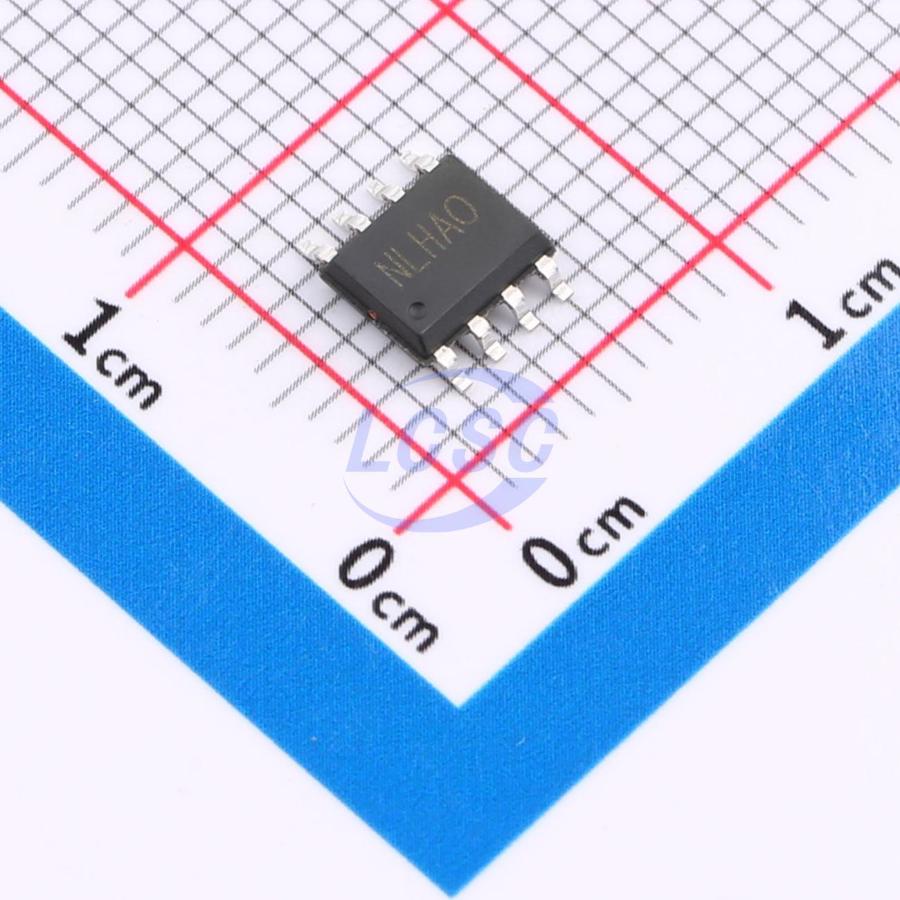

RY4066AP8
Battery Charging IC Lithium Battery ESOP-8
Standalone Linear Li-lon Battery Charger
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY4066AP8
- Store part #
- C19267344
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C19267344
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.84 | ₹98.40 |
| 100+ | ₹7.78 | ₹778.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹5.98 | ₹17,940.00 |
| 6,000+ | ₹5.36 | ₹32,160.00 |
| 9,000+ | ₹5.05 | ₹45,450.00 |
10 × ₹9.84
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY4066AP8
₹98.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~30V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.203 g
Overview
RY4066 is a complete constant-current/constant-voltage linear charger for single-cell lithium-ion batteries. Its package and minimal external component count make it ideally suited for portable applications. In addition, RY4066 is designed to operate within USB power specifications. The internal MOSFET architecture eliminates the need for external sense resistors and isolation diodes. A thermal feedback function regulates the charge current to limit die temperature during high-power operation or elevated ambient temperatures. The charge voltage is fixed at 4.2V, and the charge current is programmable via a single external resistor. When the final float voltage is reached and the charge current drops to 1/10 of the programmed value, RY4066 automatically terminates the charge cycle. When the input power source (AC adapter or USB supply) is removed, RY4066 automatically enters a low-current state, reducing battery drain to below 2µA. RY4066 can be placed in shutdown mode, reducing supply current to 25µA. Additional features include charge current monitoring, undervoltage lockout, automatic recharge, and a status pin for indicating charge termination and input voltage presence.
Applications
- Cellular phones
- Charging docks and cradles
- Bluetooth applications
- Wearable applications
Key features
- Constant current/constant voltage operation with thermal regulation to maximize charge rate without risk of overheating
- No MOSFET, sense resistor, or blocking diode required
- Complete linear charger for single-cell Li-Ion batteries
- Charges single-cell Li-Ion batteries directly from USB port
- Charge current monitor output for fuel gauging
- Automatic recharge
- Charge status output pin
- C/10 charge termination
- Programmable charge current up to 1000mA
- Preset 4.2V charge voltage with ±2% accuracy
- 6.4V input overvoltage protection
- 25µA supply current in shutdown mode
- 2.9V trickle charge threshold
- Soft-start to limit inrush current
- Reverse battery protection
- Available in ESOP8, DFN6-2×2, DFN8-2×2, DFN8-3×3, and DFN10-2×2 packages
