ABLICDatasheet (PDF)

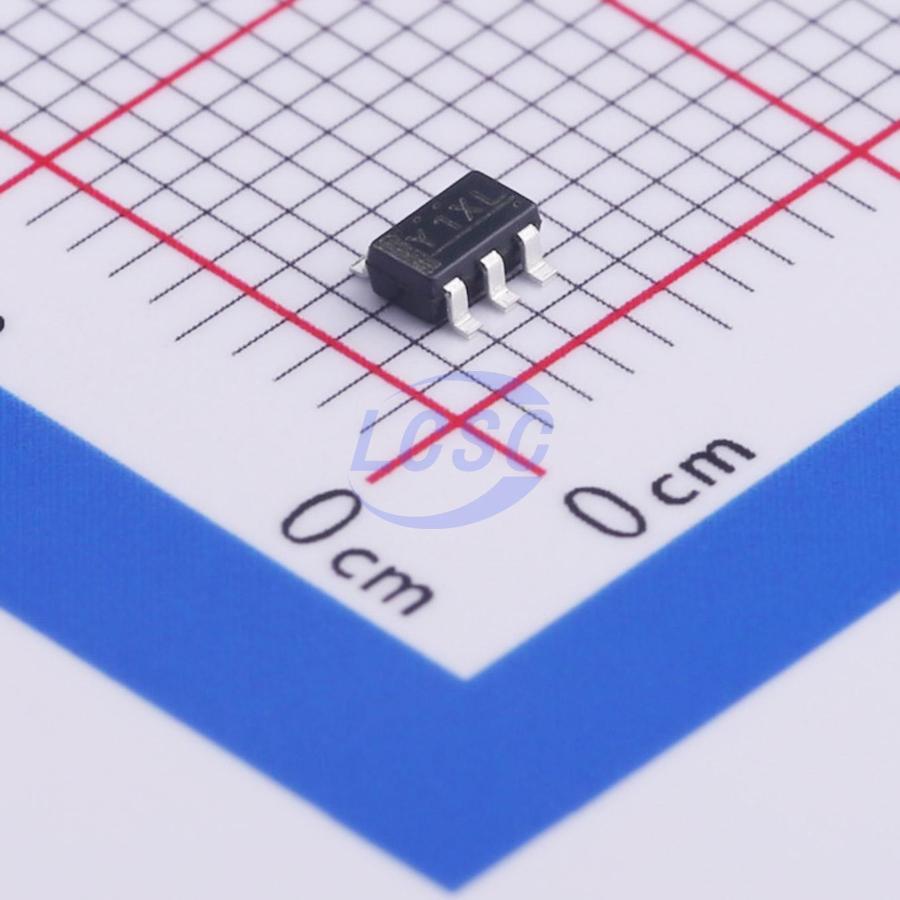

S-8261DAX-M6T1U
Battery Protection IC Lithium Battery SOT-23-6
SOT-23-6ROHS CompliantActive
Battery protection IC for 1-cell battery
- Manufacturer
- ABLIC
- Manufacturer part #
- S-8261DAX-M6T1U
- Store part #
- C468203
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C468203
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.92 | ₹99.60 |
| 50+ | ₹15.76 | ₹788.00 |
| 150+ | ₹13.68 | ₹2,052.00 |
| 500+ | ₹12.12 | ₹6,060.00 |
| 3,000+ | ₹10.88 | ₹32,640.00 |
| 6,000+ | ₹10.24 | ₹61,440.00 |
5 × ₹19.92
₹99.60
excl. GST
₹117.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S-8261DAX-M6T1U
₹99.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V;1.5V~28V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
The S-8261 series incorporates a high-accuracy voltage detection circuit and delay circuit, serving as a protection IC for lithium-ion/lithium-polymer rechargeable batteries. This IC is optimally suited for providing overcharge, overdischarge, and overcurrent protection for single-cell lithium-ion/lithium-polymer rechargeable battery packs.
Applications
- Lithium-ion rechargeable battery pack
- Lithium polymer rechargeable battery pack
Key features
- Built-in high-accuracy voltage detection circuit: overcurrent detection voltage range 3.900 V ~ 4.500 V (5 mV increments), accuracy ±25 mV at 25℃ and ±30 mV over -5℃ ~ +55℃; overcharge hysteresis voltage range 0.1 V ~ 0.4 V, accuracy ±25 mV, selectable in 50 mV increments; overdischarge detection voltage range 2.000 V ~ 3.000 V (10 mV increments), accuracy ±50 mV; overdischarge hysteresis voltage range 0.0 V ~ 0.7 V, accuracy ±50 mV, selectable in 100 mV increments; overcurrent 1 detection voltage range 0.050 V ~ 0.300 V (10 mV increments), accuracy ±15 mV; overcurrent 2 detection voltage 0.500 V (fixed), accuracy ±100 mV.
- High voltage tolerance design: absolute maximum rated voltage of 28 V for VM and CO pins.
- Built-in delay circuit with multiple delay times: overcharge delay (tCU), overdischarge delay (tDL), overcurrent 1 delay (tIOV1), and overcurrent 2 delay (tIOV2) — no external capacitor required, accuracy ±20%.
- Built-in three-level overcurrent detection circuit: detects overcurrent 1, overcurrent 2, and load short-circuit.
- Selectable 0 V battery charging: option to allow or inhibit charging of 0 V batteries.
- Selectable sleep function: option to enable or disable sleep mode.
- Charger detection and abnormal charging current detection: overdischarge hysteresis released by detecting negative voltage on VM pin (typ. -0.7 V) (charger detection); when DO pin is high and VM pin voltage falls below charger detection voltage (typ. -0.7 V), CO pin output is driven low (abnormal charging current detection).
- Low current consumption: typ. 3.5 μA, max. 7.0 μA in active state; max. 0.1 μA in sleep state.
- Wide operating temperature range: -40℃ ~ +85℃.
- Eco-friendly materials: lead-free, Sn 100%, halogen-free.
