onsemiDatasheet (PDF)

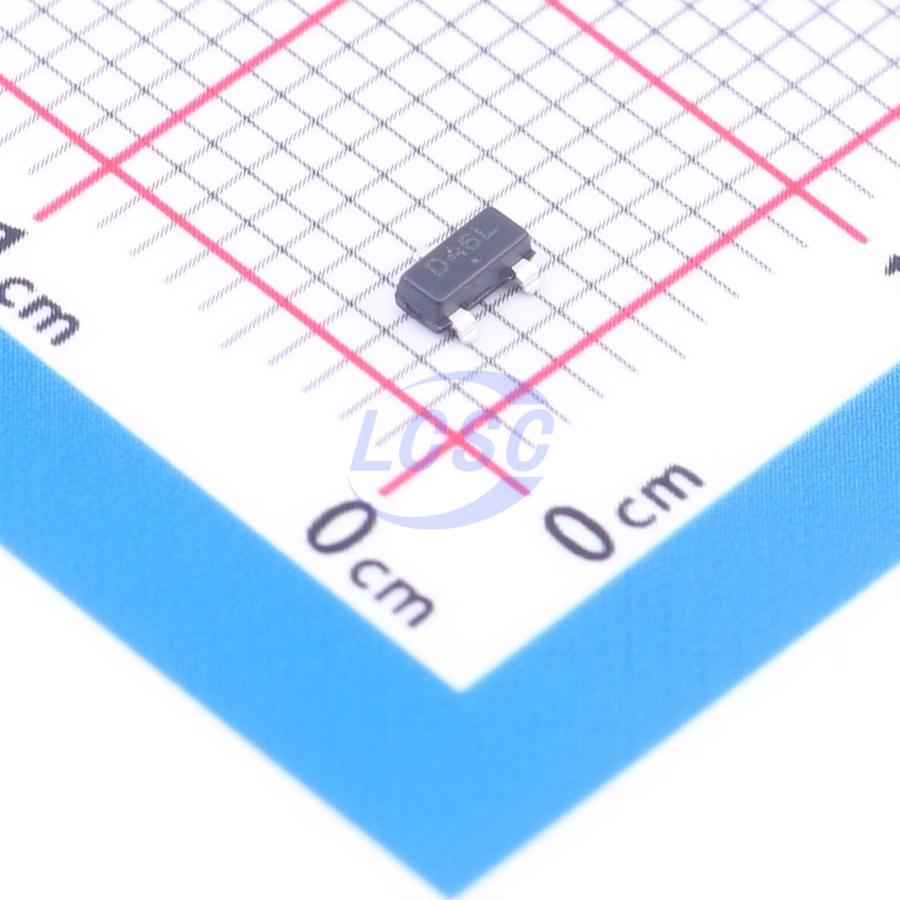

SCP51460SN33T1G
3.3V Positive Fixed SOT-23(TO-236) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23(TO-236)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SCP51460SN33T1G
- Store part #
- C3746616
- Package / case
- SOT-23(TO-236)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C3746616
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.03 | ₹64.03 |
| 10+ | ₹62.55 | ₹625.50 |
| 30+ | ₹61.70 | ₹1,851.00 |
| 100+ | ₹60.63 | ₹6,063.00 |
1 × ₹64.03
₹64.03
excl. GST
₹75.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SCP51460SN33T1G
₹64.03 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+100℃@(Ta)
- Supply Current (Iq)
- 180uA
- Output Configuration
- Positive
- Output Current
- 20mA
- Operating Voltage
- 28V
- Features
- Short Circuit Protection;Reverse polarity voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
The SCP51460 is a low cost, low power, high accuracy LDO voltage regulator. This device will supply output current up to 20 mA at fixed output voltage 3.3 V with excellent regulation characteristics, making it ideal for precision regulator applications. It is designed to be stable without output capacitor. This is an important feature, when fast rise times and PCB space are in concern. The protective features include Short Circuit Current and Reverse Voltage Protection. The SCP51460 is packaged in 3 leads surface mount SOT−23 package.
Applications
- Handheld Instruments
- Precision Regulators
- Data Acquisition Systems
- High Accuracy Micropower Supplies
Key features
- Fixed Output Voltage 3.3 V
- VOUT Accuracy 1% over 0 to +100°C
- Wide Input Voltage Range up to 28 V
- Low Quiescent Current
- Low Noise
- Reverse Battery Protection
- Stable Without Output Capacitor
- Available in 3 leads SOT−23 Package
- This Device is Pb−Free and is RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333S#C55089969AOTE · SOT-23-3 | AOTE | SOT-23-3 | 2,810 | ₹7.75 · 2,810 in stock | View |
 | MCP1799T-3302H/TT#C5127748MICROCHIP · SOT-23-3 | MICROCHIP | SOT-23-3 | 5,065 | ₹233.30 · 5,065 in stock | View |
 | GM1400AUJZ-3.3-R7#C21882469GONGMOSEMI · SOT-23 | GONGMOSEMI | SOT-23 | 458 | ₹305.04 · 458 in stock | View |
 | LN7133MR-G#C3007985NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 3,000 | ₹8.97 · 3,000 in stock | View |
 | HT7533S#C55089959AOTE · SOT-23-3 | AOTE | SOT-23-3 | 2,600 | ₹4.18 · 2,600 in stock | View |
