SCTDatasheet (PDF)

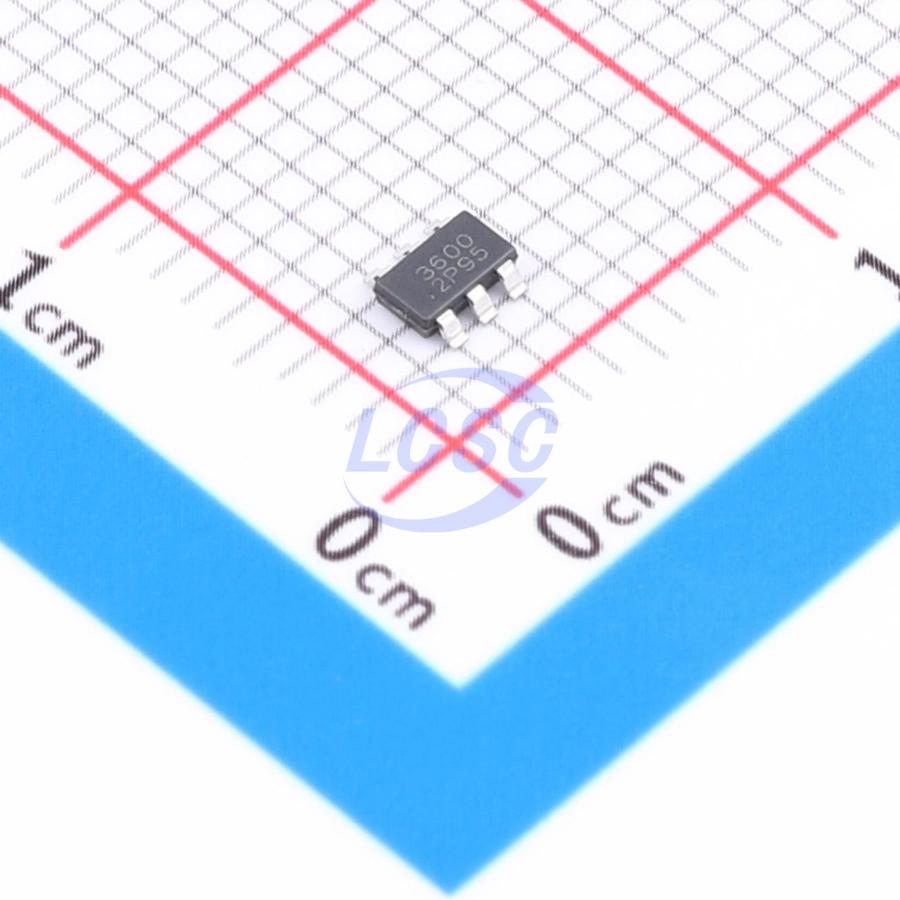

SCT53600TVBR
20mV 7mA 65V 1 2.37A TSOT-23-6L OR Controllers, Ideal Diodes
TSOT-23-6LRoHSActive
- Manufacturer
- SCT
- Manufacturer part #
- SCT53600TVBR
- Store part #
- C5464956
- Package / case
- TSOT-23-6L
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,739 in stock
#C5464956
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.45 | ₹261.45 |
| 10+ | ₹222.05 | ₹2,220.50 |
| 30+ | ₹197.67 | ₹5,930.10 |
| 100+ | ₹172.41 | ₹17,241.00 |
| 500+ | ₹161.09 | ₹80,545.00 |
| 1,000+ | ₹156.09 | ₹1,56,090.00 |
1 × ₹261.45
₹261.45
excl. GST
₹308.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SCT53600TVBR
₹261.45 for 1 + GST
Specifications
- Quiescent Current
- 60uA
- Operating temperature
- -40℃~+150℃
- FET Type
- External FET
- Voltage - Forward(Vf@If)
- 20mV
- Current - Output High(IOH)
- 7mA
- Gate Drive Voltage
- 12V
- Voltage - DC Reverse(Vr)
- 65V
- Input Voltage (Vin)
- 4.8V~65V
- Function
- Reverse current blocking;Reverse polarity protection;Over temperature protection;With enable
- Number of Channels
- 1
- Current - Output Low(IOL)
- 2.37A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.752 g
Overview
SCT53600 is an ideal diode controller that pairs with an external N-channel MOSFET to form an ideal diode rectifier, enabling low-loss reverse polarity protection as a replacement for Schottky diodes. The device operates over a wide voltage range of 4.7V to 65V, withstands and protects loads against negative supply voltages as low as -65V, and blocks reverse current — helping simplify system protection design in compliance with automotive ISO7637. The controller provides a charge pump gate drive for the external N-channel MOSFET, regulating the forward voltage drop across the external MOSFET to 20mV for smooth, ringing-free operation, while delivering ultra-fast (less than 0.75μs) MOSFET turn-off during reverse events such as power supply failures or input micro-short conditions to minimize reverse current. Its fast response to reverse current blocking makes it suitable for systems with output voltage hold-up requirements during ISO7637 pulse testing. The SCT53600 draws only 1μA in shutdown mode, helping extend battery life. The device is available in a TSOT23-6 package.
Applications
- Automotive battery protection
- Redundant power supplies
- Industrial factory automation
- Enterprise power
- Network telecom power systems
- Servers
Key features
- 4.8V to 65V operating voltage range
- -65V reverse voltage rating
- Charge pump for driving external N-channel MOSFET
- 20mV anode-to-cathode forward voltage drop regulation
- 12V gate drive voltage
- Enable input
- High-side external N-channel MOSFET drive
- 1μA shutdown current
- 60μA operating quiescent current
- 2.3A peak gate turn-off current
- Fast reverse current shutdown within 0.75μs
- Meets automotive ISO7637 transient requirements with appropriate TVS diode
- TSOT23-6L package
