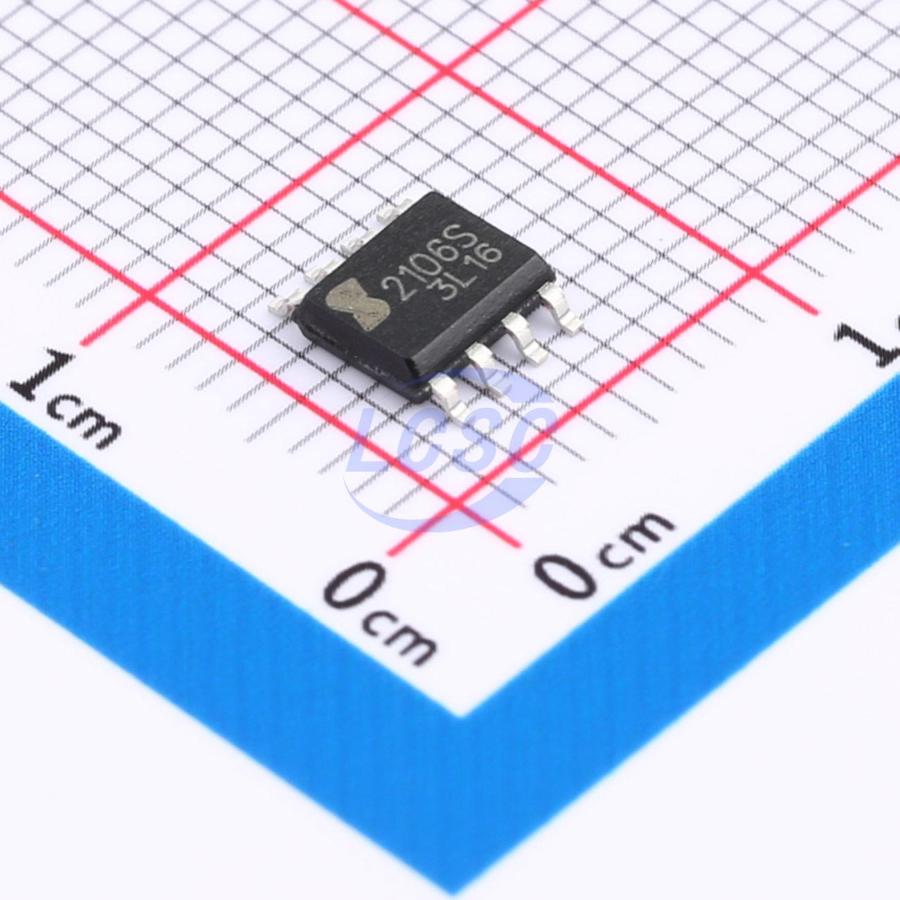

SDH2106SATR
Low Side High Side Gate Driver IC MOSFET SOP-8
700V single-phase high and low side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SDH2106SATR
- Store part #
- C7466373
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,732 in stock
#C7466373
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.54 | ₹72.54 |
| 10+ | ₹56.35 | ₹563.50 |
| 30+ | ₹49.23 | ₹1,476.90 |
| 100+ | ₹40.59 | ₹4,059.00 |
| 500+ | ₹39.52 | ₹19,760.00 |
| 1,000+ | ₹37.35 | ₹37,350.00 |
1 × ₹72.54
₹72.54
excl. GST
₹85.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SDH2106SATR
₹72.54 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
SDH2106 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. Using a high- and low-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs down to 3.3V. The floating channel can be used to drive a high-side N-channel power MOSFET, with a maximum floating supply voltage of 700V. Offered in an SOP-8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor control
- Air conditioner/washing machine
- General-purpose inverter
- Inverter drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC and VBS UVLO circuits
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Cross-conduction prevention protection
- Dead time 100ns
- Wide temperature range -40°C~125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
