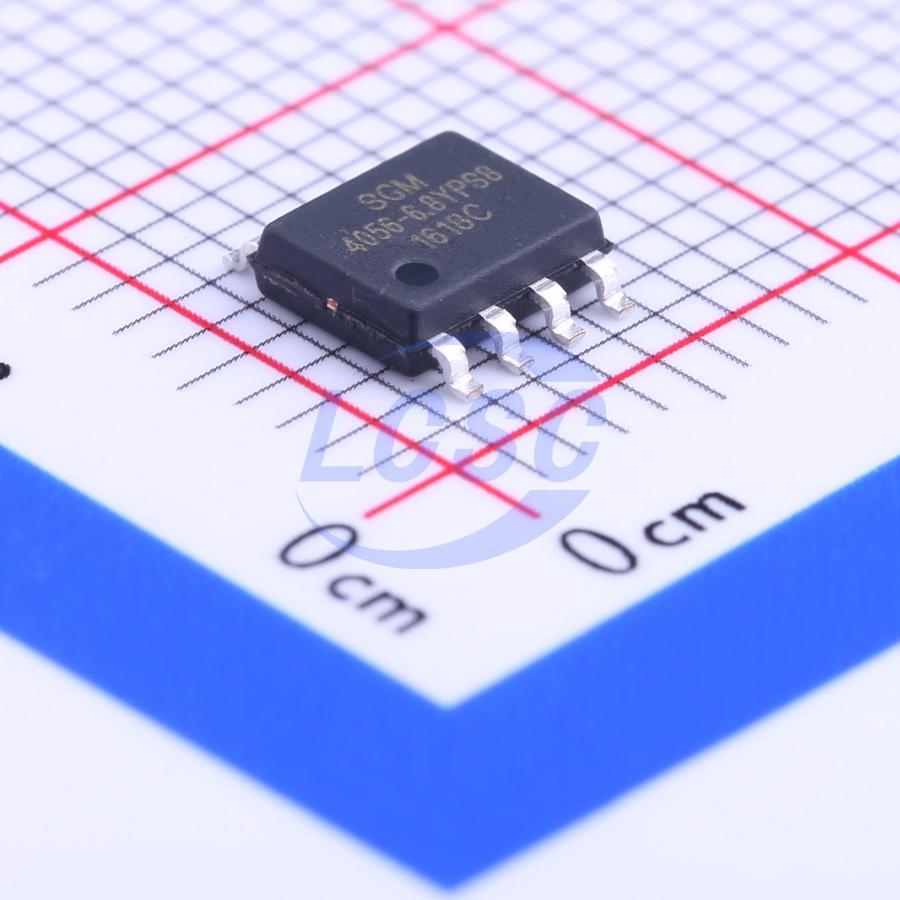

SGM4056-6.8YPS8G/TR
Lithium Battery 900mA SOIC-8-EP Battery Management
High input voltage charger
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM4056-6.8YPS8G/TR
- Store part #
- C79687
- Package / case
- SOIC-8-EP
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,258 in stock
#C79687
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.04 | ₹70.04 |
| 10+ | ₹53.78 | ₹537.80 |
| 30+ | ₹45.75 | ₹1,372.50 |
| 100+ | ₹37.73 | ₹3,773.00 |
1 × ₹70.04
₹70.04
excl. GST
₹82.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SGM4056-6.8YPS8G/TR
₹70.04 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.55V~9.35V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Charge termination;Programmable charging current;Overvoltage protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 900mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The SGM4056 is a cost-effective, fully integrated high input voltage single-cell Li-Ion battery charger. The charger uses a CC/CV charge profile required by Li-Ion battery. The charger accepts an input voltage up to 26.5V but is disabled when the input voltage exceeds the OVP threshold, typically 6.8V (SGM4056-6.8) or 10.5V (SGM4056-10.5), to prevent excessive power dissipation. The 26.5V rating eliminates the overvoltage protection circuit required in a low input voltage charger.
Applications
- Mobile Phones
- Blue-Tooth Devices
- PDAs
- MP3 Players
- Stand-Alone Chargers
- Other Handheld Devices
Key features
- The charge current and the end-of-charge (EOC) current are programmable with external resistors.
- When the battery voltage is lower than typically 2.55V, the charger preconditions the battery with typically 18% of the programmed charge current.
- When the charge current reduces to the programmable EOC current level during the CV charge phase, an EOC indication is provided by the CHG pin, which is an open-drain output.
- An internal thermal foldback function protects the charger from any thermal failure.
- Two indication pins (PPR and CHG) allow simple interface to a microprocessor or LEDs.
- When no adapter is attached or when disabled, the charger draws less than 1μA leakage current from the battery.
- Complete Charger for Single-Cell Li-Ion or Polymer Batteries
- Integrated Pass Element and Current Sensor
- No External Blocking Diode Required
- Low Component Count and Cost
- Programmable Charge Current
- Programmable End-of-Charge Current
- Charge Current Thermal Foldback for Thermal Protection
- 2.55V Trickle Charge Threshold
- 6.8V Input Over-Voltage Protection for SGM4056-6.8
- 10.5V Input Over-Voltage Protection for SGM4056-10.5
- 26.5V Maximum Voltage for the Power Input
- Power Presence and Charge Indications
- Less than 1μA Leakage Current off the Battery When No Input Power Attached or Charger Disabled
- Available in Green TDFN-3×3-8L, TDFN-2×3-8L, TDFN-2×2-8L and SOIC-8 (Exposed Pad) Packages
