SGMICRODatasheet (PDF)

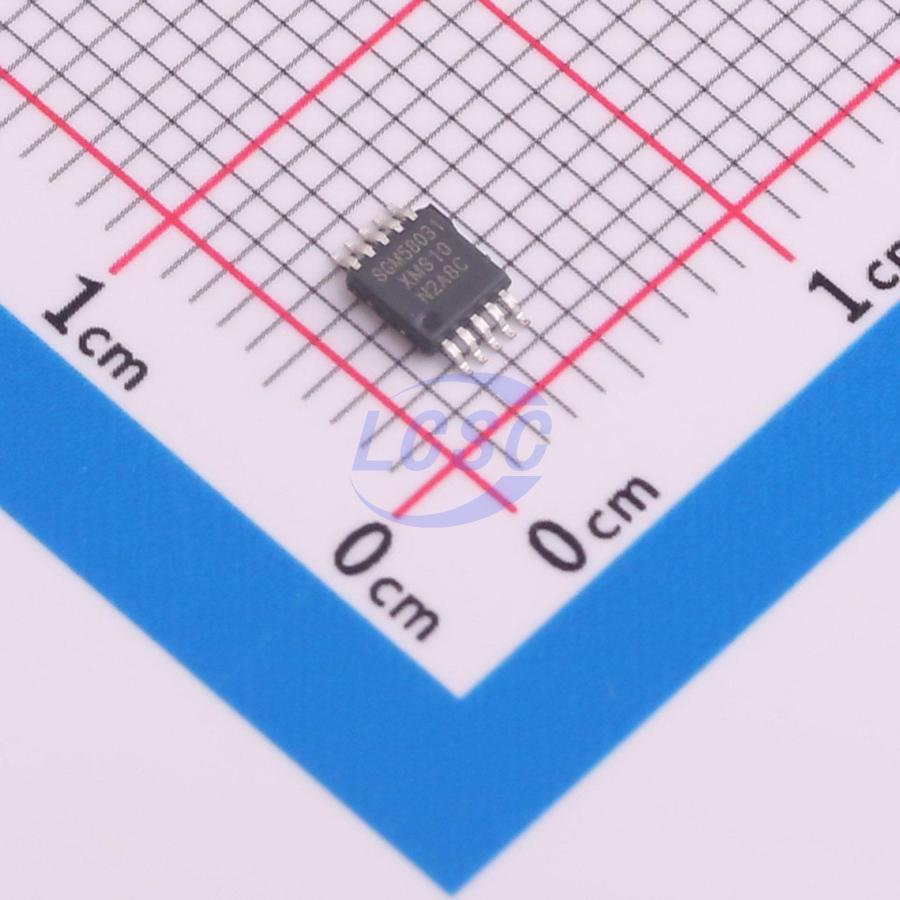

SGM58031XMS10G/TR
I2C 3V~5.5V MSOP-10 Analog to Digital Converters (ADC)
MSOP-10RoHSActive
Ultra-Small,Low-Power,16-Bit Analog-to-Digital Converter with Internal Reference
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM58031XMS10G/TR
- Store part #
- C700177
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C700177
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹834.63 | ₹834.63 |
| 10+ | ₹705.40 | ₹7,054.00 |
| 30+ | ₹626.52 | ₹18,795.60 |
| 100+ | ₹560.61 | ₹56,061.00 |
1 × ₹834.63
₹834.63
excl. GST
₹984.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM58031XMS10G/TR
₹834.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C
- Quiescent Current (Iq)
- 255uA
- Voltage - Supply
- 3V~5.5V
- Number of Channels
- 2;4
- Integral non - linearity
- 1LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 410kHz;386kHz~434kHz
- Features
- Multiplexers;Integrated modulator;Built-in digital filter;Power-on reset;Soft reset
- Resolution(Bits)
- 16;-
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The SGM58031 is a low- power, 16- bit, precision, delta- sigma (ΔΣ) analog- to- digital converter (ADC). It operates from a 3V to 5.5V supply. The SGM58031 contains an on- chip reference and oscillator. It has an I²C compatible interface, and it can select four I²C slave addresses. The data rate of the filter is up to 960SPS. The SGM58031 has an on- chip PGA, which can provide input ranges to as low as ±256mV from the power supply. The input multiplexer supports 4 single- ended inputs or 2 differential inputs configuration. The SGM58031 is available in Green MSOP- 10 and TDFN- 3×3 - 10L packages. It operates over an ambient temperature range of - 40°C to +125°C
Applications
- Portable Devices
- Process Control
- Battery Monitoring System
- Temperature Measurement
Key features
- Single- Supply Voltage Range: 3V to 5.5V
- I²C Bus Voltage Range: 3V to 5.5V
- Low Quiescent Current:
- Continuous Mode: 255μA (TYP)
- Power- Down Mode: 0.8μA (TYP)
- Selectable Data Rates: 6.25SPS to 960SPS
- Input Multiplexer
- 4 Single- Ended Inputs or 2 Differential Inputs
- Internal Programmable Gain Amplifier (PGA)
- Internal Voltage Reference and Oscillator
- Selectable Digital Comparator
- I²C- Compatible Serial Interface
- Available in Green MSOP- 10 and TDFN- 3×3 - 10L Packages
