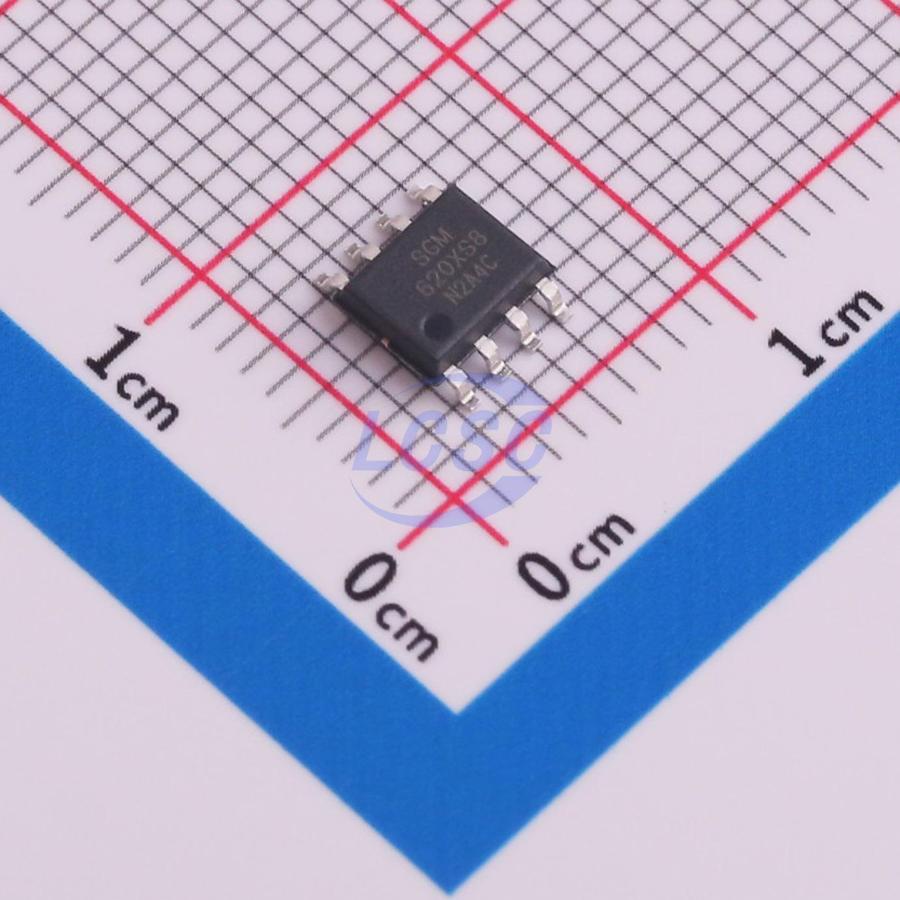

SGM620XS8G/TR

The SGM620 is a high accuracy, high voltage instrumentation amplifier, which is designed to set any gain from 1 to 10000 with one external resistor. The device works well in battery-powered applications due to the low power consumption of 1.3mA typical quiescent current. The SGM620 provides a SOIC-8 package which is much smaller than discrete classical-three-OPAs circuits. The SGM620 provides 120ppm (MAX) non-linearity and 150μv (MAX) low input offset voltage. The device also features low noise, low bias current and low power. The combination of these characteristics makes it a good choice for applications requiring excellent DC performance. The SGM620 offers 6nV/√Hz low input voltage noise, 300fA/√Hz input current noise at 1kHz, and 0.4μVP-P in the 0.1Hz to 10Hz band. It is suitable for pre-amplifier applications. The 10μs settling time to 0.01% makes SGM620 appropriate for multiplexed applications. The SGM620 is available in a Green SOIC-8 package. It is specified over the extended -40°C to +125°C temperature range.

Applications

• Precision Current Measurement
• Pressure Measurement

Key features

• Single External Resistor Gain Set (Set Gain from 1 to 10000)
• Input Offset Voltage: 150μV (MAX)
• Input Bias Current: 15nA (TYP)
• Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
• Input Voltage Noise: 6nV/√Hz at 1kHz
• 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
• Bandwidth: 140kHz (G = 100)
• Settling Time to 0.01%: 10μs (G = 100)
• Rail-to-Rail Output
• Support Single or Dual Power Supplies: 4.6V to 36V or ±2.38 to ±18V
• Low Power Supply Current: 1.3mA (TYP)
• -40°C to +125°C Operating Temperature Range
• Available in a Green SOIC-8 Package
