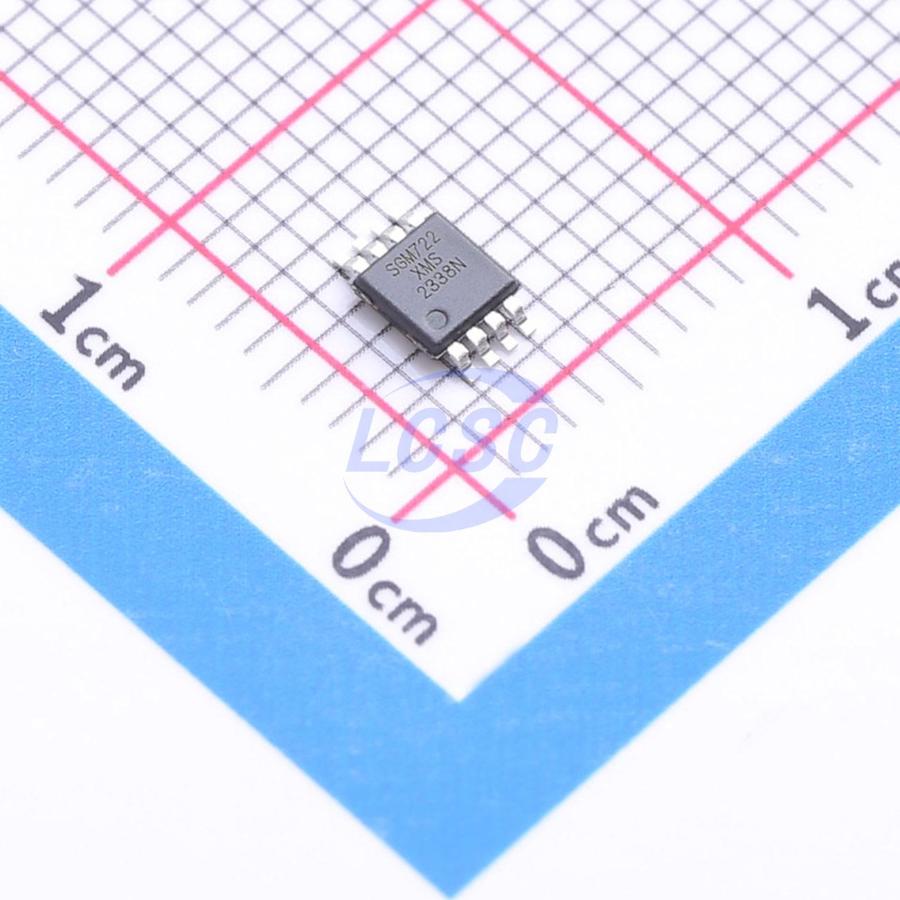

SGM722XMS/TR

57mA 2 4mV 8.5V/us 75dB 1pA 10MHz 970uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

970uA,10MHz,Rail-to-Rail I/O,CMOS Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM722XMS/TR
Store part #: C699933
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,749 in stock

#C699933

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹100.50	₹100.50
10+	₹77.16	₹771.60
30+	₹65.49	₹1,964.70
100+	₹54.03	₹5,403.00

Quantity (min 1)

1 × ₹100.50

₹100.50

excl. GST

₹118.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM722XMS/TR

₹100.50 for 1 + GST

Specifications

Output Current: 57mA
Number of Channels: 2
Vos - Input Offset Voltage: 4mV
Slew Rate: 8.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 75dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.1uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 970uA
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.252 g

Overview

The SGM721 (single), SGM722 (dual), SGM723 (single with shutdown) and SGM724 (quad) are low noise, low voltage, and low power operational amplifiers, that can be designed into a wide range of applications. The SGM721/2/3/4 have a high Gain- Bandwidth Product of 10MHz, a slew rate of 8.5V/μs and a quiescent current of 0.97mA/amplifier at 5V. The SGM723 has a power- down disable feature that reduces the supply current to 160nA. The SGM721/2/3/4 are designed to provide optimal performance in low voltage and low noise systems. They provide rail- to- rail output swing into heavy loads. The input common- mode voltage range includes ground, and the maximum input offset voltage is 4mV for SGM721/2/3/4. They are specified over the extended industrial temperature range - 40°C to +125°C. The operating range is from 2.5V to 5.5V. The single version, SGM721 is available in SC70- 5, SOT23- 5 and SO- 8 packages. SGM723 is available in SOT23- 6 and SO- 8 packages. The dual version SGM722 is available in SO- 8 and MSOP- 8 packages. The quad version SGM724 is available in SO- 14 and TSSOP- 14 packages.

Applications

Sensors
Audio Active Filters
A/D Converters
Communications
Test Equipment
Cellular and Cordless Phones
Laptops and PDAs
Photodiode Amplification
Battery- Powered Instrumentation

Key features

Low Cost
Rail- to- Rail Input and Output
1mV Typical VOS
High Gain- Bandwidth Product: 10MHz
High Slew Rate: 8.5V/μs
Settling Time to 0.1% with 2V Step: 0.36μs
Overload Recovery Time: 0.4μs
Low Noise : 8nV/Hz
Operates on 2.5V to 5.5V Supplies
Input Voltage Range = - 0.1V to +5.6V with VS = 5.5V
Low Power 0.97mA/Amplifier Typical Supply Current
SGM723 160nA when Disabled
Small Packaging
SGM721 Available in SC70- 5,SOT23- 5 and SO- 8
SGM722 Available in MSOP- 8 and SO- 8
SGM723 Available in SOT23- 6 and SO- 8
SGM724 Available in TSSOP- 14 and SO- 14
