SGMICRODatasheet (PDF)

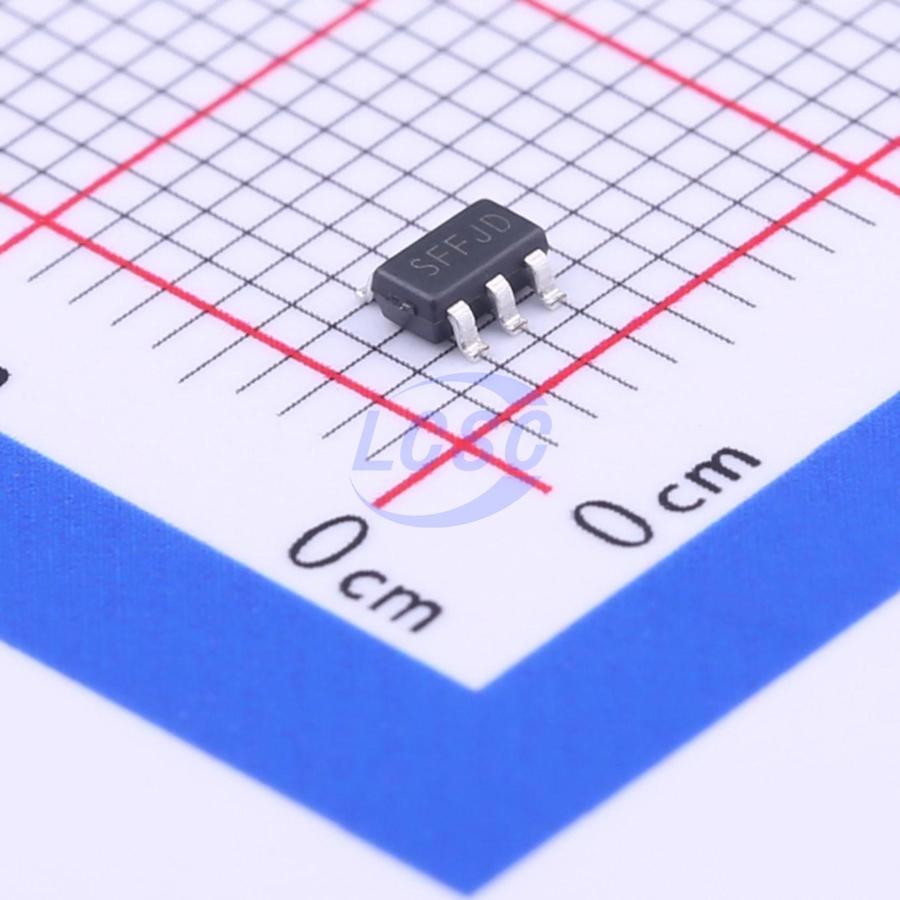

SGM7SZ125YN5G/TR
1.65V~5.5V 1 1 3.5ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM7SZ125YN5G/TR
- Store part #
- C398247
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C398247
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.85 | ₹129.25 |
| 50+ | ₹19.30 | ₹965.00 |
| 150+ | ₹16.50 | ₹2,475.00 |
| 500+ | ₹12.99 | ₹6,495.00 |
5 × ₹25.85
₹129.25
excl. GST
₹152.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM7SZ125YN5G/TR
₹129.25 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- SGM7SZ
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Key features
- Ultra - High Speed: Propagation delay time (tPD) = 3.5 ns (Typical) into 50 pF at supply voltage (Vcc) = 3.3 V
- High Output Drive: ±24 mA at supply voltage (Vcc) = 3 V
- Broad supply voltage (Vcc) Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX Operated at supply voltage (Vcc) = 3.3 V
- Power Down High - Impedance Inputs/Output
- Over - Voltage Tolerant Inputs Facilitate 5 V to 3 V Translation
- Available in Green SOT - 23 - 5 and SC70 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74LVC1G125XN5G/TR#C5153147SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | ₹41.91 · 0 in stock | View | |
