SGMICRO

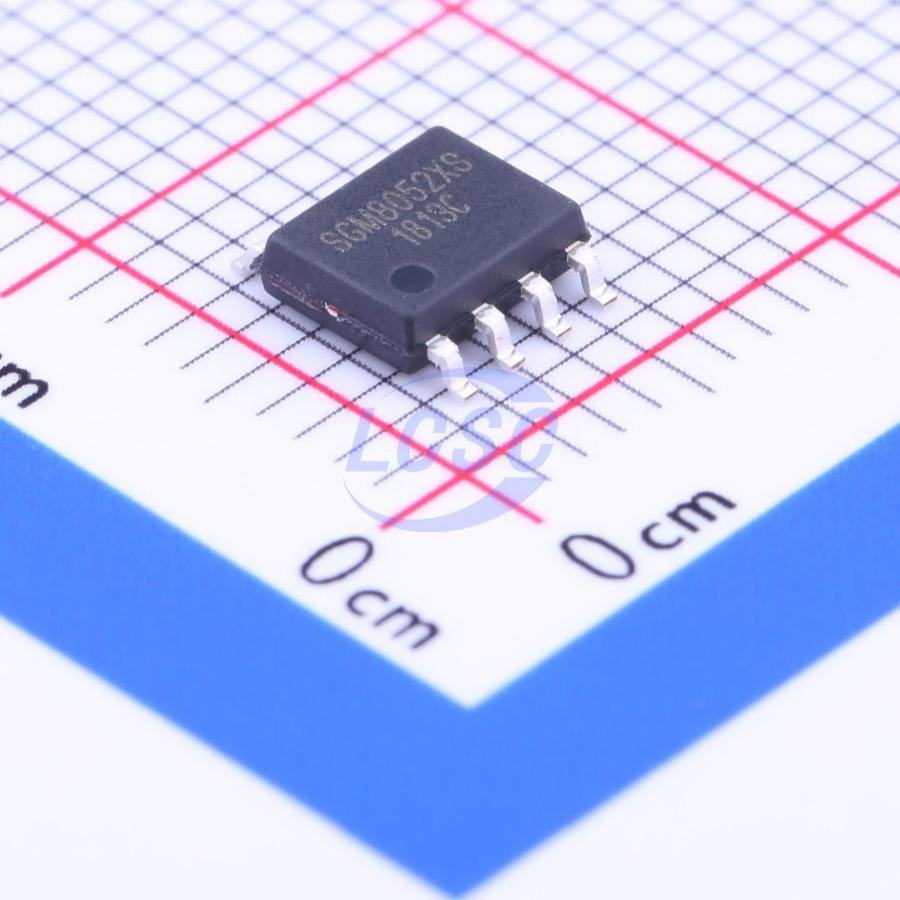

SGM8052XS/TR

130mA 2 8mV 130V/us 6pA 80dB 2.3mA 250MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps

SOIC-8RoHSActive

250MHz, Rail-to-Rail Output, CMos Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM8052XS/TR
Store part #: C91288
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,633 in stock

#C91288

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹200.34	₹200.34
10+	₹160.02	₹1,600.20
30+	₹137.68	₹4,130.40
100+	₹112.53	₹11,253.00

Quantity (min 1)

1 × ₹200.34

₹200.34

excl. GST

₹236.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGM8052XS/TR

₹200.34 for 1 + GST

Specifications

Output Current: 130mA
Number of Channels: 2
Vos - Input Offset Voltage: 8mV
Slew Rate: 130V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 6pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 4.4uV/℃
Quiescent Current: 2.3mA
Gain Bandwidth Product: 250MHz
Input Voltage Noise Density: 2nV/√Hz@1MHz
Dual Supply: -1.35V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.42 g

Overview

The SGM8051/3 (single), SGM8052/5 (dual) and SGM8054 (quad) are low cost, high speed, rail-to-rail output, voltage feedback amplifiers. They have a wide input common mode voltage range and output voltage swing, making them easy to be used on single supply as low as 2.5V. Despite being low cost, the SGM8051 series provide excellent overall performance. They offer wide bandwidth to 250MHz (G = +1) along with 0.1dB flatness out to 37MHz (G = +2) and offer a typical low current consumption of 2.3mA/amplifier. Low distortion and fast settling make the SGM8051 series ideal for buffering high speed A/D or D/A converters. The SGM8053/5 have a power-down disable feature that reduces the supply current to 75μA. This feature makes the SGM8053/5 ideal for portable and battery-powered applications where power dissipation is critical. All are specified over the extended -40°C to +125°C temperature range.

Applications

Imaging
Photodiode Preamp
Professional Video and Cameras
Hand Sets
DVD/CD
Base Stations
Filters
A-to-D Driver

Key features

Low Cost
Rail-to-Rail Output
Input Offset Voltage: 8mV (MAX)
High Speed -3dB Bandwidth (G = +1): 250MHz Slew Rate: 130V/μs Settling Time to 0.1% with 2V Step: 58ns
Supply Voltage Range: 2.5V to 5.5V
Input Voltage Range: -0.2V to +3.8V with Vs = 5V
Excellent Video Specs (RL = 150Ω, G = +2) 0.1dB Gain Flatness: 37MHz Diff Gain: 0.03%, Diff Phase: 0.08°
Low Supply Current 2.3mA/Amplifier (TYP) 75μA Shutdown Current for SGM8053/5
Small Packaging SGM8051 Available in SOT-23-5 and SOIC-8 Packages SGM8052 Available in MSOP-8 and SOIC-8 Packages SGM8053 Available in SOT-23-6 and SOIC-8 Packages SGM8054 Available in TSSOP-14 and SOIC-14 Packages SGM8055 Available in MSOP-10 Package
