TokmasDatasheet (PDF)

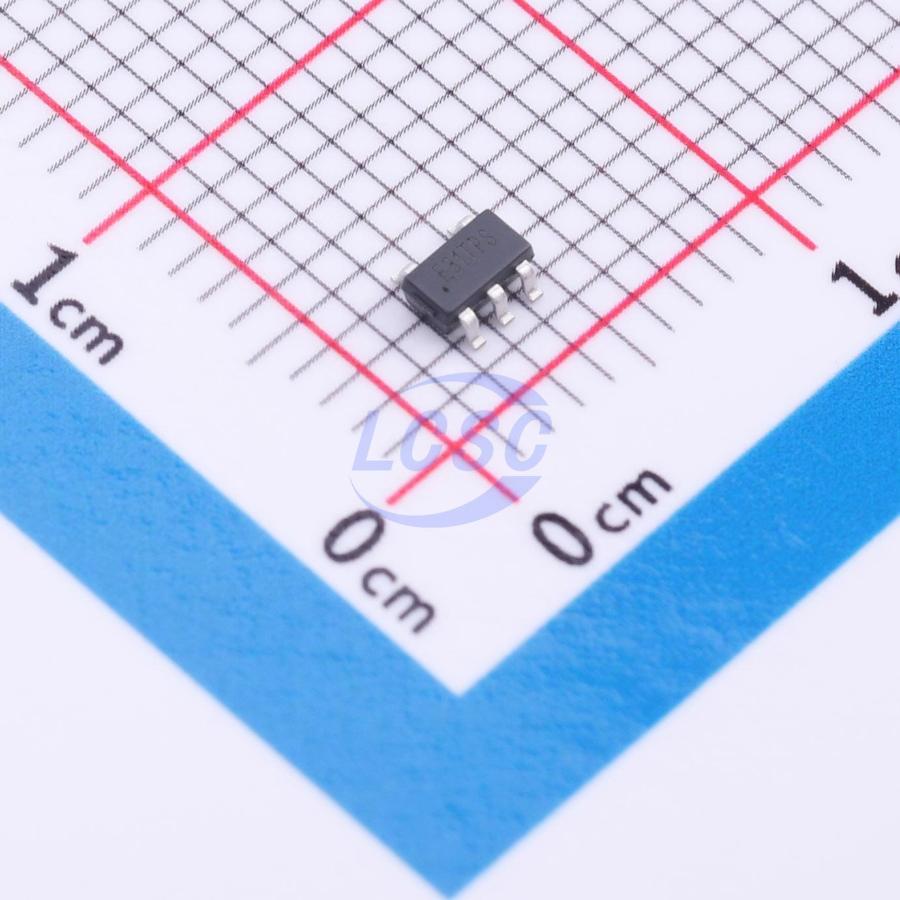

SGM8061XN5(TOKMAS)
60mA 1 1uV 0.16V/us 50pA 120dB 45uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT23-5 Instrumentation, Op Amps, Buffer Amps
SOT23-5RoHSActive
- Manufacturer
- Tokmas
- Manufacturer part #
- SGM8061XN5(TOKMAS)
- Store part #
- C51889368
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,981 in stock
#C51889368
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.38 | ₹48.38 |
| 10+ | ₹42.53 | ₹425.30 |
| 30+ | ₹39.93 | ₹1,197.90 |
| 100+ | ₹36.67 | ₹3,667.00 |
| 500+ | ₹35.36 | ₹17,680.00 |
| 1,000+ | ₹34.50 | ₹34,500.00 |
1 × ₹48.38
₹48.38
excl. GST
₹57.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM8061XN5(TOKMAS)
₹48.38 for 1 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 50pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 8nV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
Applications
- Sensor amplifiers
- Bidirectional current sensing
- DC offset correction
- Temperature measurement
- Remote sensors
- Battery-powered instruments
- Electronic scales
Key features
- Low offset voltage: 10 μV (max)
- Zero drift: 0.008 μV/°C
- 0.1 Hz to 10 Hz noise: 1.1 μVₚ₋ₚ
- Low supply current: 42 μA per amplifier
- Bandwidth: 350 kHz
- Slew rate: 0.16 V/μs
- High gain, 130 dB CMRR and PSRR
- Rail-to-rail input and output swing
- Operating temperature range: -40°C to 125°C
- Small packages: SOT353 (SC70-5) and SOT23-5
