SGMICRO

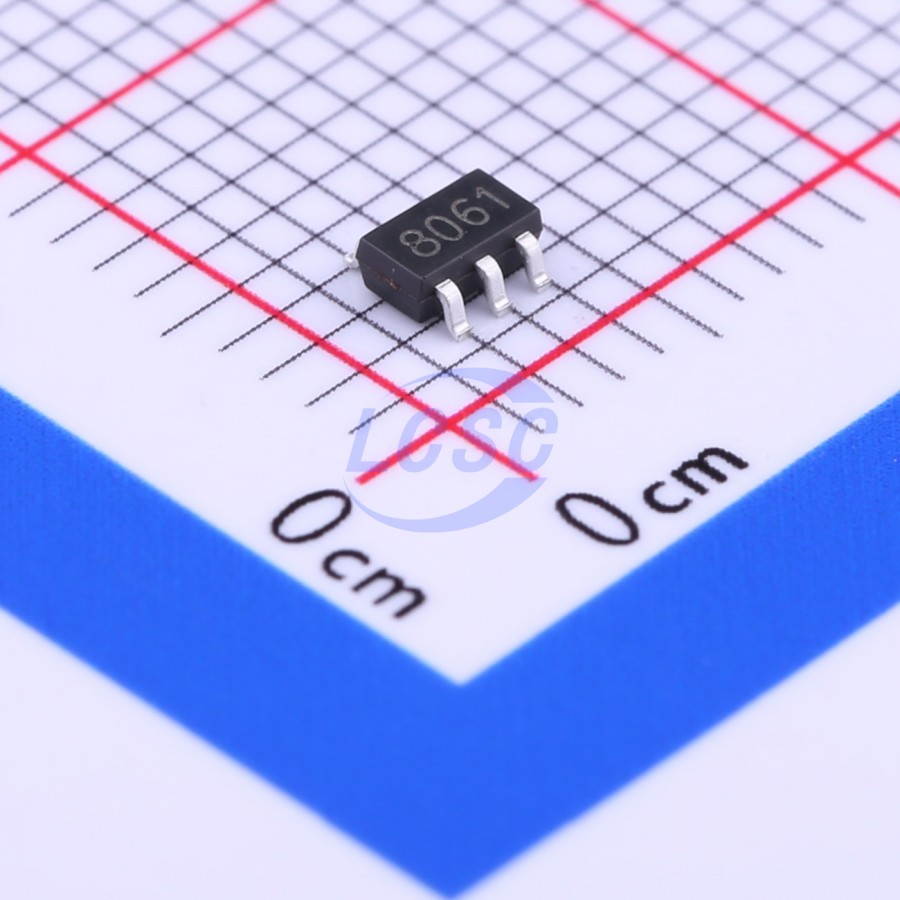

SGM8061XN5/TR

120mA 1 2mV 420V/us 80dB 6pA 8.2mA 200MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

500MHz, Rail-to-Rail Output CMOS Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM8061XN5/TR
Store part #: C90963
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,898 in stock

#C90963

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹236.99	₹236.99
10+	₹194.63	₹1,946.30
30+	₹168.13	₹5,043.90
100+	₹140.98	₹14,098.00

Quantity (min 1)

1 × ₹236.99

₹236.99

excl. GST

₹279.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8061XN5/TR

₹236.99 for 1 + GST

Specifications

Output Current: 120mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 420V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 6pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 8.2mA
Gain Bandwidth Product: 200MHz
Input Voltage Noise Density: 5.6nV/√Hz@1MHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.038 g

Overview

The SGM8061 (single), SGM8062 (dual), and SGM8063 (single with shutdown) are high-speed op amps that operate from 2.5V to 5.5V single supply. The SGM8061/2/3 have a maximum input offset voltage of 8mV and supply current as low as 8.2mA per amplifier. The SGM8061/2/3 deliver excellent performance with the bandwidth and slew rate typical of current feedback amplifiers. They feature a wide bandwidth of 500MHz (G = +1) and 0.1dB gain flatness of 130MHz (G = +1). The SGM8061/2/3 provide a wide input common-mode voltage range and rail-to-rail output swing. Fast settling time and low distortion make these op amps well suited for high-speed ADC/DAC applications. The SGM8063 draws 75μA of supply current in shutdown mode. These devices are ideal for portable instrumentation and battery-powered systems. The single-channel SGM8061 is available in green SOT-23-5 and SOIC-8 packages. The dual-channel SGM8062 is available in green SOIC-8 and MSOP-8 packages. The single-channel SGM8063 with shutdown is available in green SOT-23-6 and SOIC-8 packages. They operate over an extended temperature range of -40°C to +125°C.

Applications

ADC
DVD
Filter
Mobile Phone
Imaging

Key features

High Speed: -3dB bandwidth (G = +1): 500MHz; Slew rate: 420V/μs; Settling time to 0.1% for a 2V step: 16ns
Excellent video performance (RL = 150Ω, G = +2): 0.1dB gain flatness: 80MHz; Differential gain: 0.015%, Differential phase: 0.05°
Input offset voltage: 8mV (maximum)
Rail-to-rail output; Supply voltage range: 2.5V to 5.5V
Input common-mode voltage range: -0.2V to 3.8V when VS = 5V
Low supply current: 8.2mA per amplifier (typical); Shutdown current of SGM8063: 75μA
Operating temperature range: -40°C to +125°C
Small package: SGM8061 available in green SOT-23-5 and SOIC-8 packages; SGM8062 available in green MSOP-8 and SOIC-8 packages; SGM8063 available in green SOT-23-6 and SOIC-8 packages
