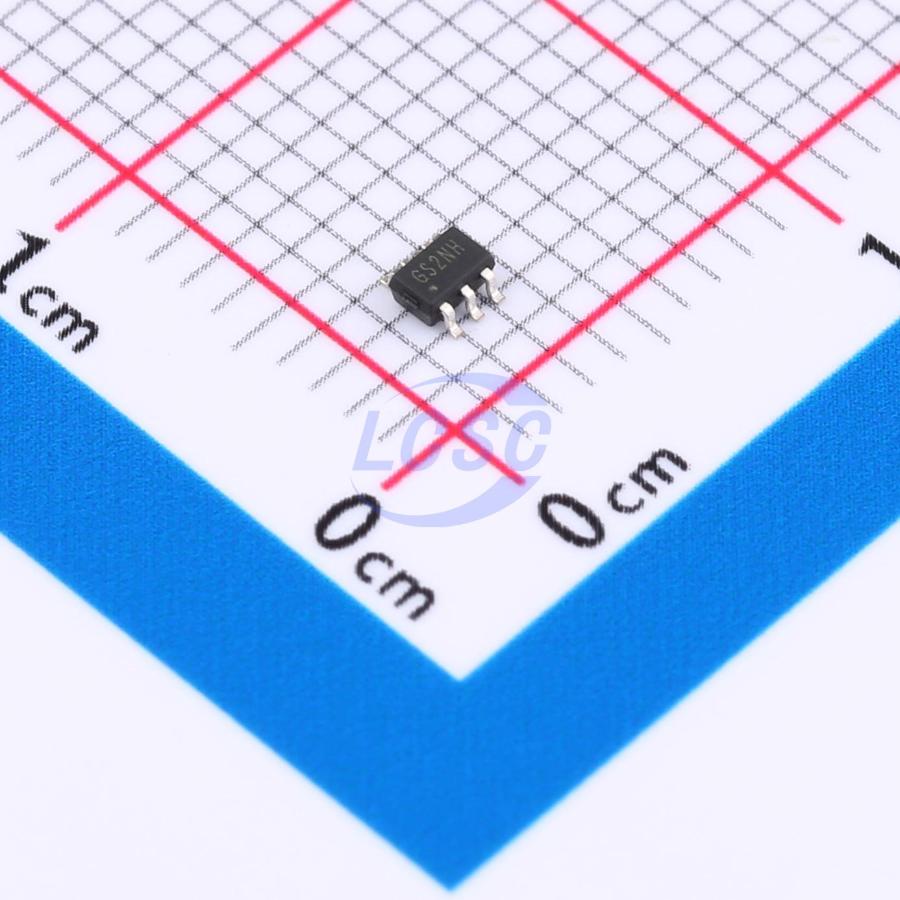

SGMICRO

SGM8199A1XC6G/TR

1 350uV -100mV~26V 16uA 85uA 50V/V SC-70-6 Instrumentation, Op Amps, Buffer Amps

SC-70-6RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM8199A1XC6G/TR
Store part #: C699973
Package / case: SC-70-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,638 in stock

#C699973

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹101.01	₹101.01
10+	₹77.55	₹775.50
30+	₹65.82	₹1,974.60
100+	₹54.31	₹5,431.00

Quantity (min 1)

1 × ₹101.01

₹101.01

excl. GST

₹119.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8199A1XC6G/TR

₹101.01 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 350uV
Vcm - Common Mode Voltage: -100mV~26V
Slew Rate: 0.15V/us;0.35V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 104dB;100dB
Ib - Input Bias Current: 16uA
Input Offset Voltage Drift(Vos TC): 1uV/℃
-3dB Bandwidth: 80kHz
Quiescent Current: 85uA
Gain: 50V/V
Features: Input filter;Analog output interface
Input Voltage Noise Density: 50nV/√Hz@1kHz
Differential Voltage: ±28V
Single Supply: 2.7V~26V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The SGM8199 series are voltage output current shunt monitors which can sense drop across shunt at common mode voltages from -0.1V to 26V, independent of the supply voltage. Three fixed gains are available: 20V/V, 50V/V and 100V/V. The low offset enables current sensing with maximum drops across the shunt as low as 0mV full-scale. These devices operate from a single 2.7V to 26V power supply, drawing a typical 85μA of supply current. The SGM8199 series are available in Green SC70-6 package. They are specified over the extended -40°C to +125°C temperature range.

Applications

Notebook Computers
Cell Phones
Telecom Equipment
Power Managements
Battery Chargers
Welding Equipment

Key features

Wide Common Mode Range: -0.1V to 26V
Input Offset Voltage SGM8199A0: 600μV (VCM = 12V, MAX) SGM8199A1: 350μV (VCM = 12V, MAX) SGM8199A2: 250μV (VCM = 12V, MAX) (Enables Shunt Drops of 10mV Full-Scale)
Gain Error (Maximum Over Temperature) SGM8199A0: ±0.7% SGM8199A1: ±0.4% SGM8199A2: ±0.4%
Choice of Gains: SGM8199A0 Gain: 20V/V SGM8199A1 Gain: 50V/V SGM8199A2 Gain: 100V/V
Quiescent Current: 85μA (TYP)
-40°C to +125°C Operating Temperature Range
Available in Green SC70-6 Package
