SGMICRO

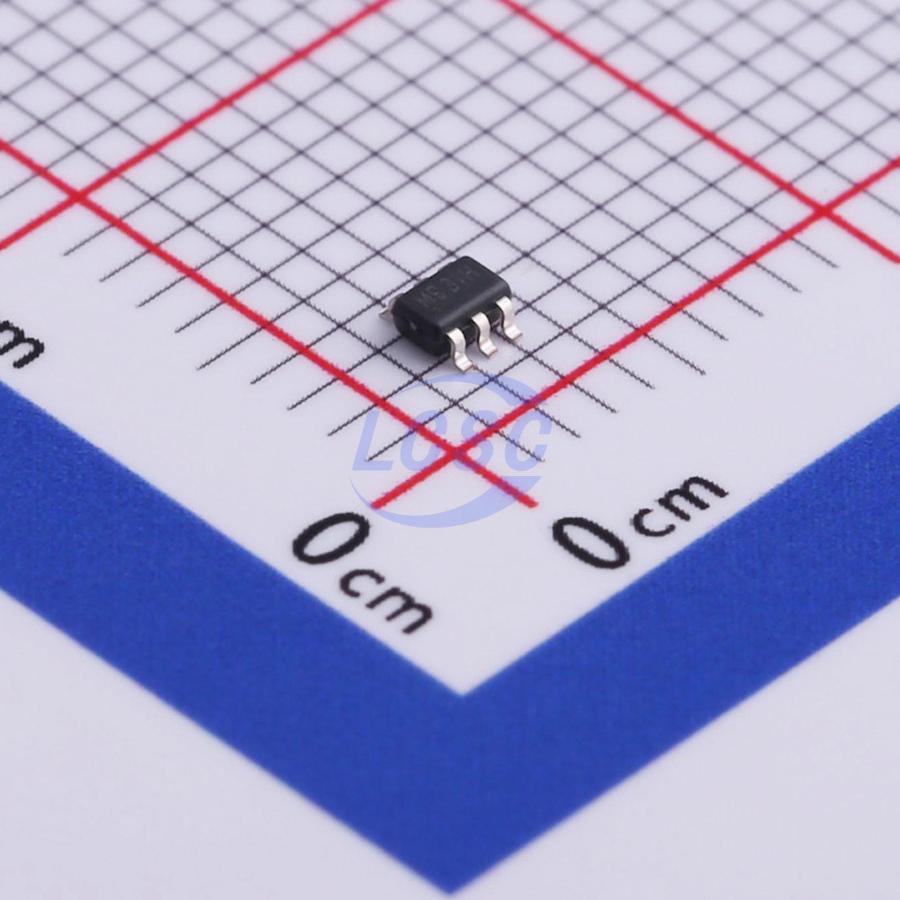

SGM8199A2XC6G/TR

-100mV~26V 85uA 100V/V SC-70-6 Instrumentation, Op Amps, Buffer Amps

SC-70-6RoHSActive

Voltage Output, High or Low Side Measurement, Bi-Directional Current Shunt Monitor

Manufacturer: SGMICRO
Manufacturer part #: SGM8199A2XC6G/TR
Store part #: C503230
Package / case: SC-70-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,554 in stock

#C503230

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹100.83	₹100.83
10+	₹77.41	₹774.10
30+	₹65.70	₹1,971.00
100+	₹54.22	₹5,422.00

Quantity (min 1)

1 × ₹100.83

₹100.83

excl. GST

₹118.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8199A2XC6G/TR

₹100.83 for 1 + GST

Specifications

Vcm - Common Mode Voltage: -100mV~26V
Slew Rate: 0.12V/us;0.3V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 108dB;106dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
-3dB Bandwidth: 68kHz
Quiescent Current: 85uA
Gain: 100V/V
Features: Analog output interface;Bidirectional detection
Differential Voltage: ±28V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.05 g

Overview

The SGM8199 series are voltage output current shunt monitors which can sense drop across shunt at common mode voltages from -0.1V to 26V, independent of the supply voltage. Three fixed gains are available: 20V/V, 50V/V and 100V/V. The low offset enables current sensing with maximum drops across the shunt as low as 0mV full-scale. These devices operate from a single 2.7V to 26V power supply, drawing a typical 85μA of supply current. The SGM8199 series are available in Green SC70-6 package. They are specified over the extended -40°C to +125°C temperature range.

Applications

Notebook Computers
Cell Phones
Telecom Equipment
Power Managements
Battery Chargers
Welding Equipment

Key features

Wide Common Mode Range: -0.1V to 26V
Input Offset Voltage SGM8199A0: 600μV (VCM = 12V, MAX) SGM8199A1: 350μV (VCM = 12V, MAX) SGM8199A2: 250μV (VCM = 12V, MAX) (Enables Shunt Drops of 10mV Full-Scale)
Gain Error (Maximum Over Temperature) SGM8199A0: ±0.7% SGM8199A1: ±0.4% SGM8199A2: ±0.4%
Choice of Gains: SGM8199A0 Gain: 20V/V SGM8199A1 Gain: 50V/V SGM8199A2 Gain: 100V/V
Quiescent Current: 85μA (TYP)
-40°C to +125°C Operating Temperature Range
Available in Green SC70-6 Package
