SGMICRODatasheet (PDF)

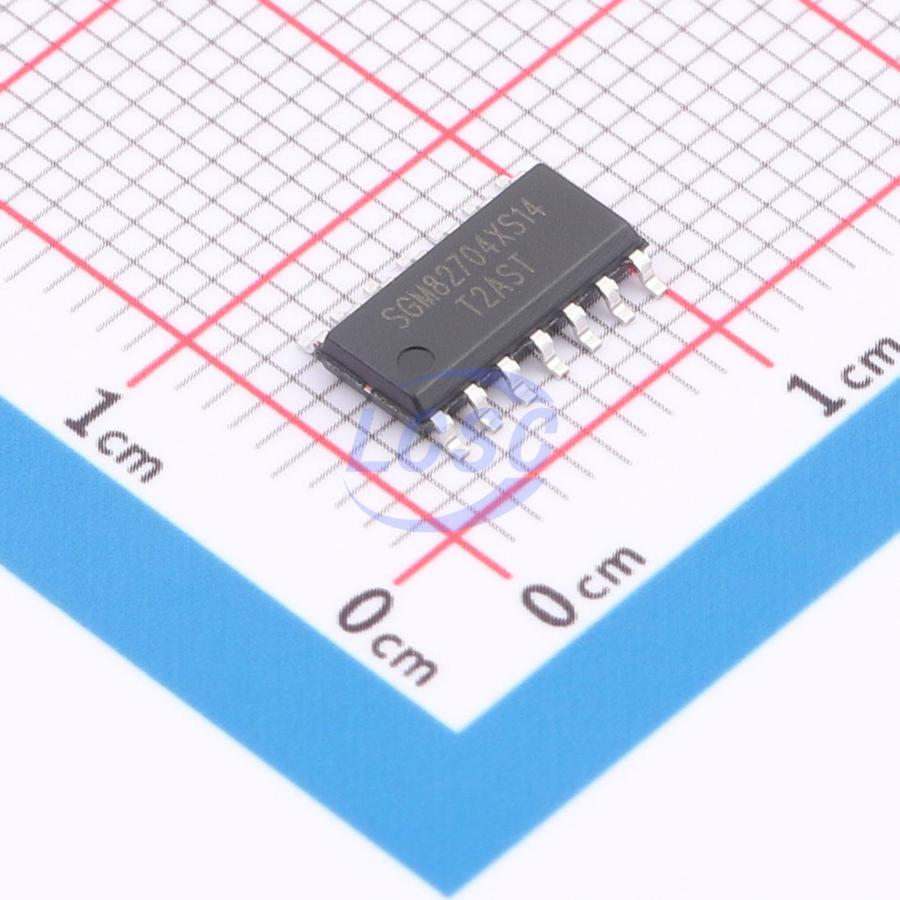

SGM8270-4XS14G/TR
4 1.2mV 8V/us 110dB 120pA 2mA Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps
SOIC-14RoHSActive
Low Noise, Precision, High Voltage, Rail-to-Rail I/O Operational Amplifier
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM8270-4XS14G/TR
- Store part #
- C700158
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,346 in stock
#C700158
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.34 | ₹200.34 |
| 10+ | ₹160.02 | ₹1,600.20 |
| 30+ | ₹137.68 | ₹4,130.40 |
| 100+ | ₹112.53 | ₹11,253.00 |
1 × ₹200.34
₹200.34
excl. GST
₹236.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SGM8270-4XS14G/TR
₹200.34 for 1 + GST
Specifications
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1.2mV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 120pA
- Input Offset Voltage Drift(Vos TC)
- 800nV/℃
- Quiescent Current
- 2mA
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -1.65V~18V
- Single Supply
- 3.3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.367 g
Overview
The SGM8270-4 is a quad, low noise, precision, high voltage operational amplifier, which can operate from 3.3V to 36V single supply or from ±1.65V to ±18V dual power supplies. It provides rail-to-rail input with a wide input common mode voltage range and rail-to-rail output voltage swing. The SGM8270-4 provides high slew rate, low noise, bias current and offset. The SGM8270-4 is available in Green SOIC-14 and TSSOP-14 packages. It is specified over the extended -40°C to +125°C temperature range.
Applications
- High Impedance Sensor
- Photodiode Amplifier
- High End, Professional Audio
- DAC Output Amplifier
- Medical
Key features
- Rail-to-Rail Input and Output
- Wide Input Common Mode and Differential Voltage Ranges
- Low Offset Voltage: 1.2mV (MAX)
- Low Input Bias Current
- Low Input Offset Current
- Output Short-Circuit Protection
- High Input Impedance
- Low Noise: 15nV/√Hz at 1kHz
- Gain-Bandwidth Product: 2.2MHz
- High Slew Rate: 8V/μs
- -40°C to +125°C Operating Temperature Range
- Available in Green SOIC-14 and TSSOP-14 Packages
