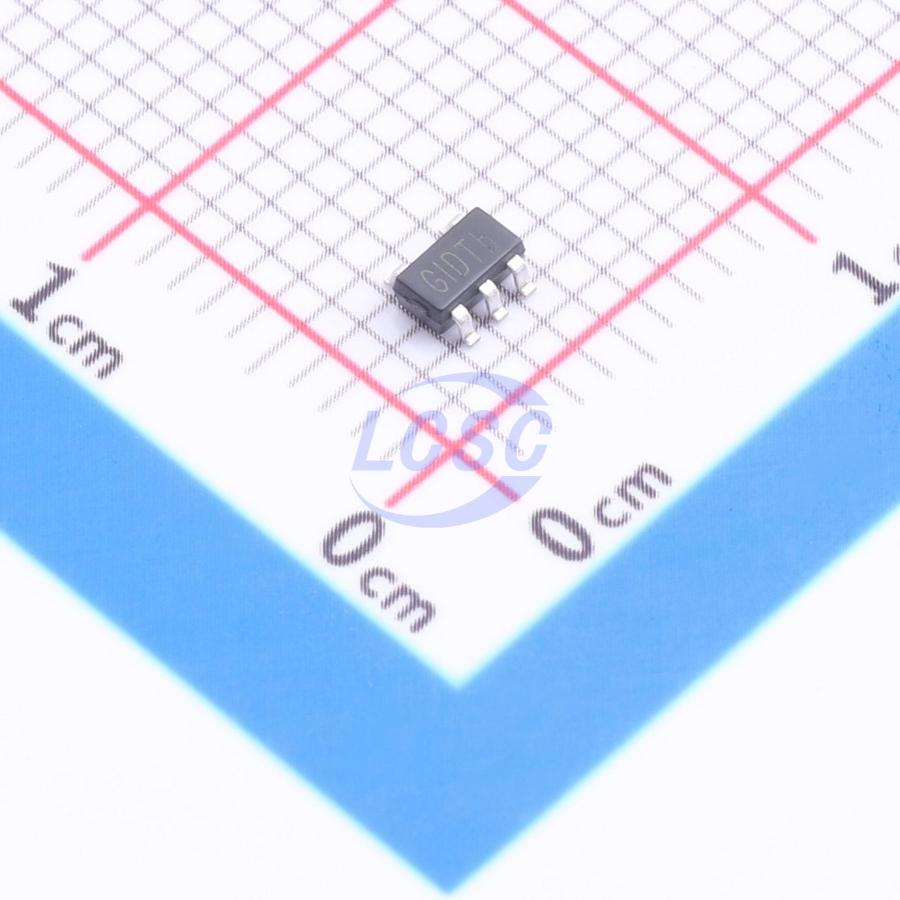

SGM8273-1AXN5G/TR

40mA 1 500uV 6V/us 10pA 115dB 4MHz 600uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Low Noise, High Precision, High Voltage, Rail-to-Rail I/O Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM8273-1AXN5G/TR
Store part #: C700141
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,843 in stock

#C700141

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹104.91	₹104.91
10+	₹80.60	₹806.00
30+	₹68.43	₹2,052.90
100+	₹56.48	₹5,648.00

Quantity (min 1)

1 × ₹104.91

₹104.91

excl. GST

₹123.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8273-1AXN5G/TR

₹104.91 for 1 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 6V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 115dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 4MHz
Quiescent Current: 600uA
Input Voltage Noise Density: 9nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -18V~-1.65V;1.65V~18V
Single Supply: 3.3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.48 g

Overview

The SGM8273-1 (single), SGM8273-2 (dual) and SGM8273-4 (quad) are low noise, high precision, high voltage operational amplifiers, which can operate from 3.3V to 36V single supply or from ±1.65V to ±18V dual power supplies. They provide rail-to-rail input with a wide input common mode voltage range and rail-to-rail output voltage swing. The SGM8273-1/2/4 provide high slew rate, low noise, low offset, drift and bias current. The SGM8273-1 is available in Green SOT-23-5, SOIC-8 and MSOP-8 packages. The SGM8273-2 is available in a Green SOIC-8 package. The quad SGM8273-4 is available in a Green SOIC-14 package. They are specified over the extended -40℃ to +125℃ temperature range.

Applications

High Impedance Sensor
Photodiode Amplifier
High End, Professional Audio
DAC Output Amplifier
Medical

Key features

Rail-to-Rail Input and Output
Wide Input Common Mode and Differential Voltage Ranges
Low Offset Voltage: 1mV (MAX)
Low Input Bias Current
Low Input Offset Current
Output Short-Circuit Protection
High Input Impedance
Low Noise: 8nV/√Hz at 1kHz
Gain-Bandwidth Product: 4MHz
High Slew Rate: 6V/μs
-40°C to +125°C Operating Temperature Range
Small Packaging: SGM8273-1 Available in Green SOT-23-5, SOIC-8 and MSOP-8 Packages SGM8273-2 Available in a Green SOIC-8 Package SGM8273-4 Available in a Green SOIC-14 Package
