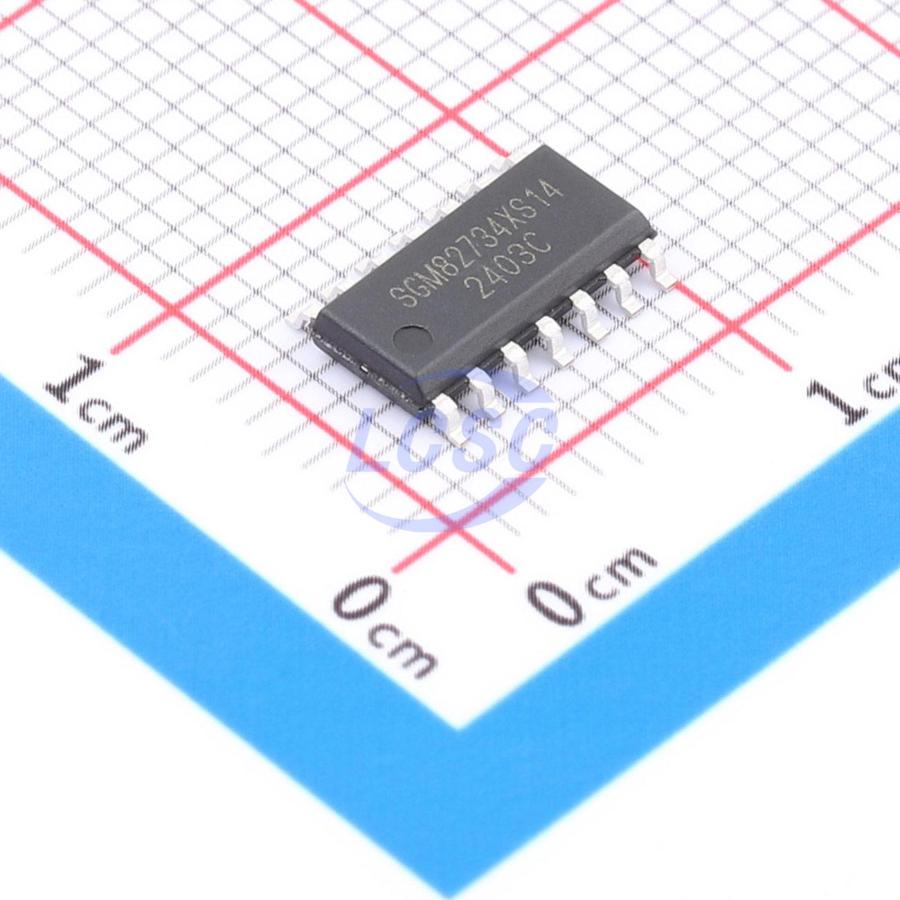

SGM8273-4XS14G/TR

40mA 4 500uV 6V/us 10pA 115dB 600uA 4MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps

SOIC-14RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM8273-4XS14G/TR
Store part #: C700147
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,470 in stock

#C700147

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹210.49	₹210.49
10+	₹161.79	₹1,617.90
30+	₹137.43	₹4,122.90
100+	₹113.08	₹11,308.00

Quantity (min 1)

1 × ₹210.49

₹210.49

excl. GST

₹248.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGM8273-4XS14G/TR

₹210.49 for 1 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 500uV
Slew Rate: 6V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 115dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 600uA
Gain Bandwidth Product: 4MHz
Input Voltage Noise Density: 9nV/√Hz@1kHz
Dual Supply: -18V~-1.65V;1.65V~18V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 3.3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.217 g

Overview

The SGM8273 - 1 (single), SGM8273 - 2 (dual) and SGM8273 - 4 (quad) are low noise, high precision, high voltage operational amplifiers that are designed to offer a wide input common mode voltage range and output voltage swing. These devices can operate from ±1.65V to ±18V dual power supplies or from 3.3V to 36V single supply. The devices feature low noise, high slew rate, low input bias and offset current, low offset voltage and low offset voltage temperature coefficient. The SGM8273 - 1/2/4 are specified over the extended - 40°C to +125°C temperature range. The single SGM8273 - 1 is available in Green SOI - 23 - 5, SOIC - 8 and MSOP - 8 packages. The dual SGM8273 - 2 is available in a Green SOIC - 8 package. The quad SGM8273 - 4 is available in a Green SOIC - 14 package.

Applications

High Impedance Sensor
Photodiode Amplifier
High End, Professional Audio
DAC Output Amplifier
Medical

Key features

Wide Input Common Mode and Differential Voltage Ranges
Low Input Bias and Offset Current
Output Short - Circuit Protection
Rail - to - Rail Input and Output
High Input Impedance
Low Offset Voltage: 1mV (MAX)
Low Noise: 9nV/√Hz at 1kHz
Gain - Bandwidth Product: 4MHz
High Slew Rate: 6V/µs
Small Packaging: SGM8273 - 1 Available in Green SOI - 23 - 5, SOIC - 8 and MSOP - 8 Packages
SGM8273 - 2 Available in a Green SOIC - 8 Package
SGM8273 - 4 Available in a Green SOIC - 14 Package
