SGMICRODatasheet (PDF)

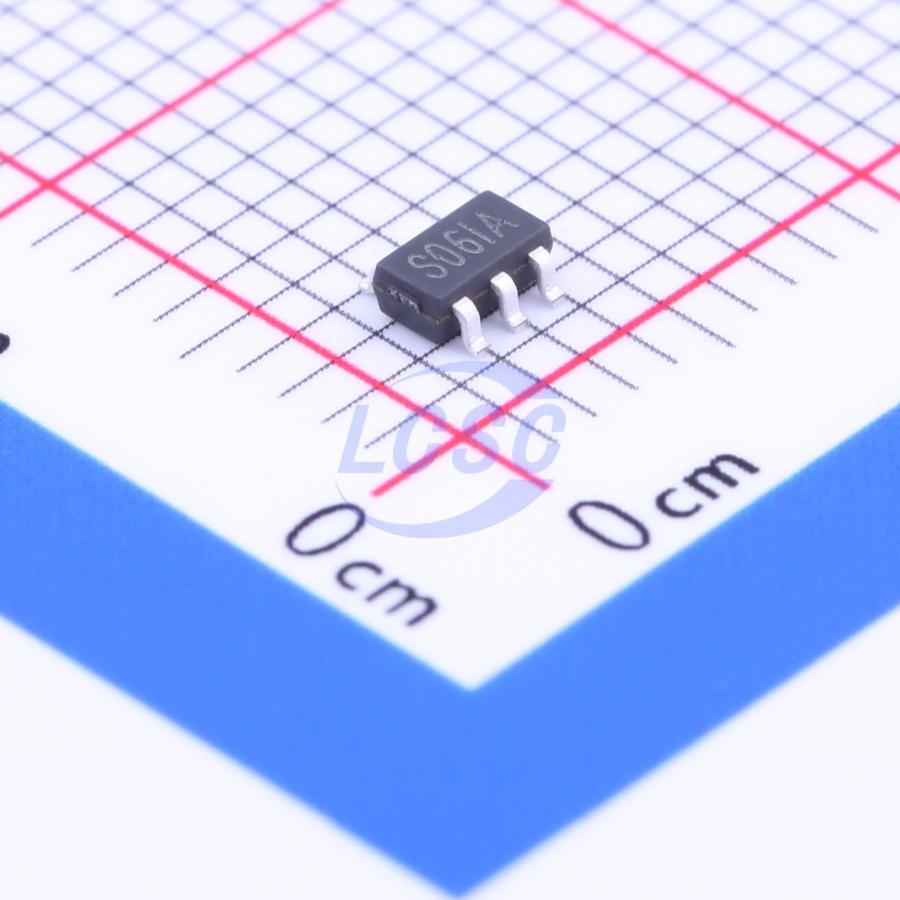

SGM8551XN5G/TR
48mA 1 12uV 0.84V/us 105dB 19pA 1.48MHz 465uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Single-Supply, Single Rail-to-Rail I/O Precision Operational Amplifier
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM8551XN5G/TR
- Store part #
- C83748
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,805 in stock
#C83748
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹236.55 | ₹236.55 |
| 10+ | ₹194.27 | ₹1,942.70 |
| 30+ | ₹167.82 | ₹5,034.60 |
| 100+ | ₹140.71 | ₹14,071.00 |
1 × ₹236.55
₹236.55
excl. GST
₹279.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM8551XN5G/TR
₹236.55 for 1 + GST
Specifications
- Output Current
- 48mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 12uV
- Slew Rate
- 0.84V/us
- Input Offset Current(Ios)
- 3pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 105dB
- Ib - Input Bias Current
- 19pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Gain Bandwidth Product
- 1.48MHz
- Quiescent Current
- 465uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 53nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
The SGM8551XN is a single, precision operational amplifier which can operate from 2.5V to 5.5V single supply. The device provides rail-to-rail input and output operation. The SGM8551XN offers a low offset voltage of 12μV and an ultra-low bias current of 19μA. The combination of characteristics makes the SGM8551XN a good choice for temperature measurements, pressure and position sensors, strain gauge amplifiers and medical instrumentation, or any other 2.5V to 5.5V applications requiring precision and long-term stability. The SGM8551XN is available in a Green SOT-23-5 package. It is specified over the extended industrial temperature range -40°C to +125°C
Applications
- Pressure Sensors
- Temperature Measurements
- Precision Current Sensing
- Electronic Scales
- Strain Gauge Amplifiers
- Handheld Test Equipment
- Thermocouple Amplifiers
- Medical Instrumentation
Key features
- Low Offset Voltage: 12μV (TYP) at 5V
- Ultra-Low Input Bias Current: 19pA
- Large-Signal Voltage Gain: 145dB (TYP) at 5V
- PSRR: 110dB (TYP)
- CMRR: 105dB (TYP)
- Overload Recovery Time: 0.1ms (at VS = 5V)
- Rail-to-Rail Input and Output
- Supply Voltage Range: 2.5V to 5.5V
- Low Supply Current: 465μA (TYP)
- No External Capacitors Required
- -40°C to +125°C Operating Temperature Range
- Available in a Green SOT-23-5 Package
