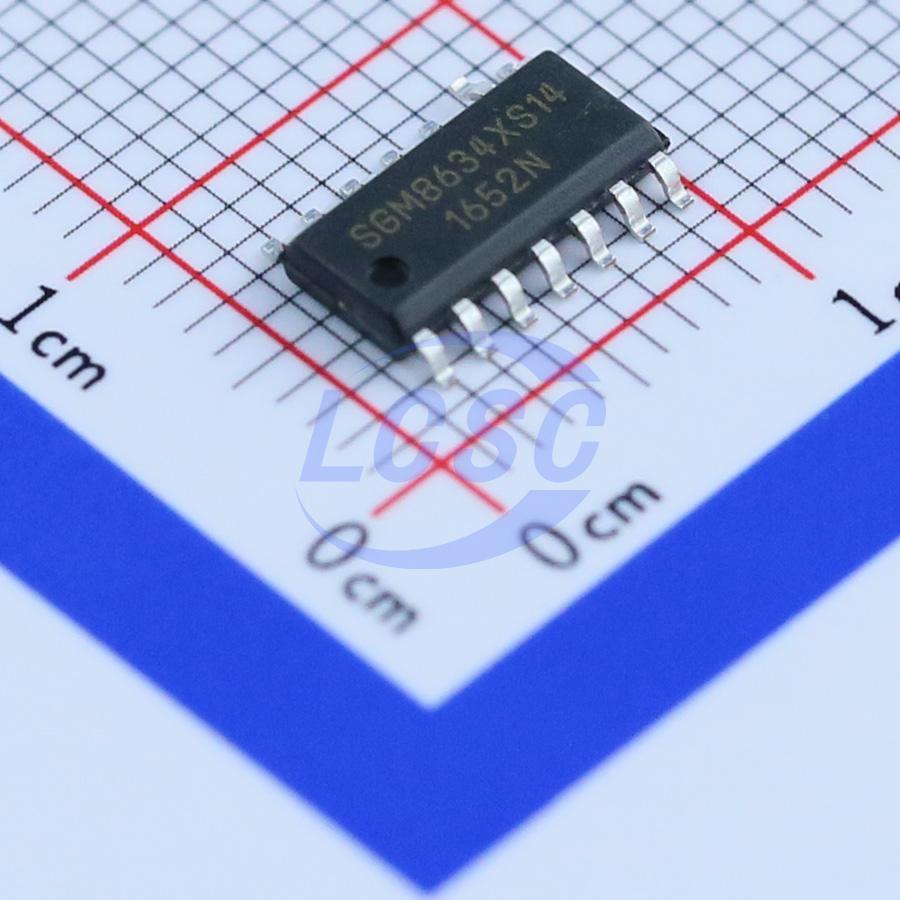

SGM8634XS14/TR

The quad SGM8634 is a low noise, low voltage, and low power operational amplifier that can be designed into a wide range of applications. The SGM8634 has a high gain - bandwidth product of 6MHz, a slew rate of 3.7V/μs, and a quiescent current of 470μA/amplifier at 5V. The SGM8634 is designed to provide optimal performance in low voltage and low noise systems. It provides rail - to - rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV. The operating range is from 2.5V to 5.5V. The quad SGM8634 is available in Green TSSOP - 14 and SOIC - 14 packages. It is specified over the extended industrial temperature range (-40°C to +125°C).

Applications

• Sensors
• Audio
• Active Filters
• A/D Converters
• Communications
• Test Equipment
• Cellular and Cordless Phones
• Laptops and PDAs
• Photodiode Amplification
• Battery - Powered Instrumentation

Key features

• Rail - to - Rail Input and Output
• 0.8mV Typical VOS
• High Gain - Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/√Hz
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.1V to +5.68V with Vs = 5.5V
• Low Supply Current 470μA/Amplifier (TYP)
• Available in Green TSSOP - 14 and SOIC - 14 Packages
