SGMICRODatasheet (PDF)

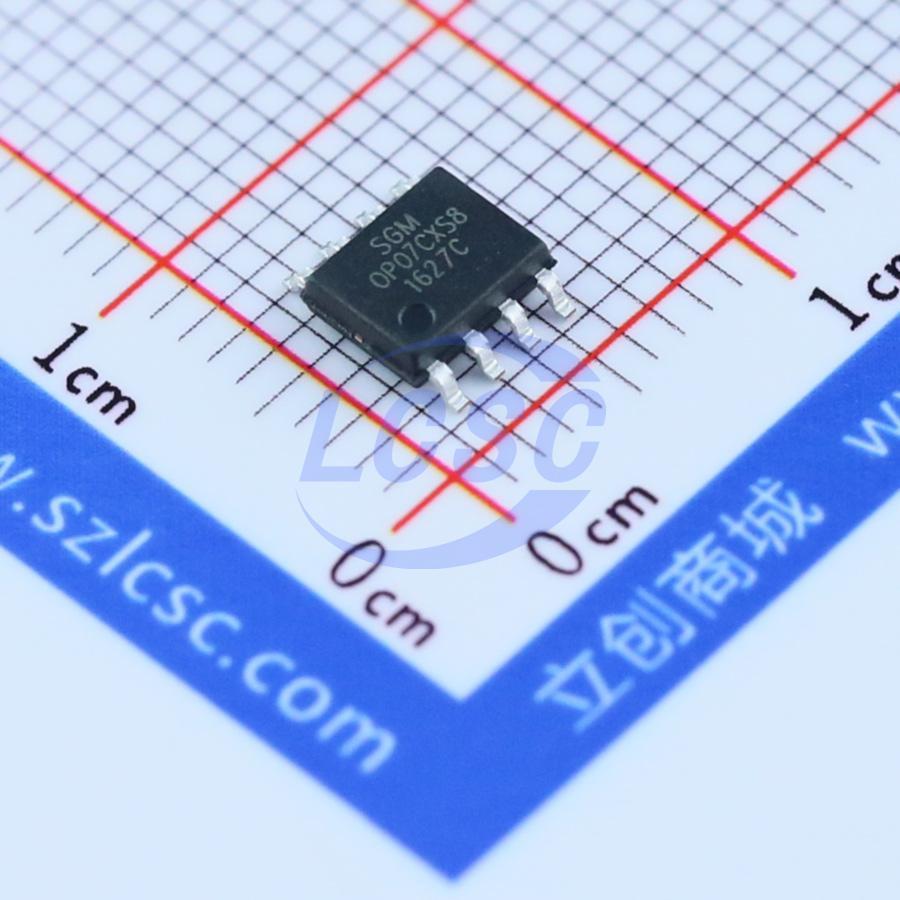

SGMOP07CXS8G/TR
34mA 1 35uV 3V/us 140dB 1nA 600kHz 750uA Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
600kHz, Low Noise, High Voltage, Precision Operational Amplifier
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGMOP07CXS8G/TR
- Store part #
- C89712
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,732 in stock
#C89712
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.06 | ₹105.06 |
| 10+ | ₹80.70 | ₹807.00 |
| 30+ | ₹68.52 | ₹2,055.60 |
| 100+ | ₹56.56 | ₹5,656.00 |
1 × ₹105.06
₹105.06
excl. GST
₹123.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SGMOP07CXS8G/TR
₹105.06 for 1 + GST
Specifications
- Output Current
- 34mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 35uV
- Slew Rate
- 3V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Ib - Input Bias Current
- 1nA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Gain Bandwidth Product
- 600kHz
- Quiescent Current
- 750uA
- Input Voltage Noise Density
- 8.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Dual Supply
- -18V~-1.8V;1.8V~18V
- Single Supply
- 3.6V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.141 g
Overview
The SGMOP07C is a low noise, low offset voltage and high voltage operational amplifier, which can be designed into a wide range of applications. The SGMOP07C has a high gain-bandwidth product of 600kHz, a slew rate of 3V/μs and a quiescent current of 0.75mA at wide power supply range. The SGMOP07C is designed to provide optimal performance in low noise systems. It provides rail-to-rail output swing into heavy loads. The single SGMOP07C is available in Green SOIC-8 package. It is specified over the extended -40°C to +125°C temperature range.
Applications
- Sensors
- Audio
- Active Filters
- A/D Converters
- Communications
- Test Equipment
- Cellular and Cordless Phones
- Laptops and PDAs
- Photodiode Amplification
Key features
- Rail-to-Rail Output
- Low Bias Current: ±1nA (TYP)
- High Open-Loop Gain: 130dB at Vs = ±15V
- High PSRR: 135dB
- Gain-Bandwidth Product: 600kHz
- Low Noise: 8.5nV/√Hz at 1kHz
- Supply Voltage Range: 3.6V to 36V or ±1.8V to ±18V
- Input Common Mode Voltage Range: (-Vs)+1.5V to (+Vs)-2V
- Low Quiescent Current: 0.75mA (TYP)
- -40°C to +125°C Operating Temperature Range
- Available in Green SOIC-8 Package
